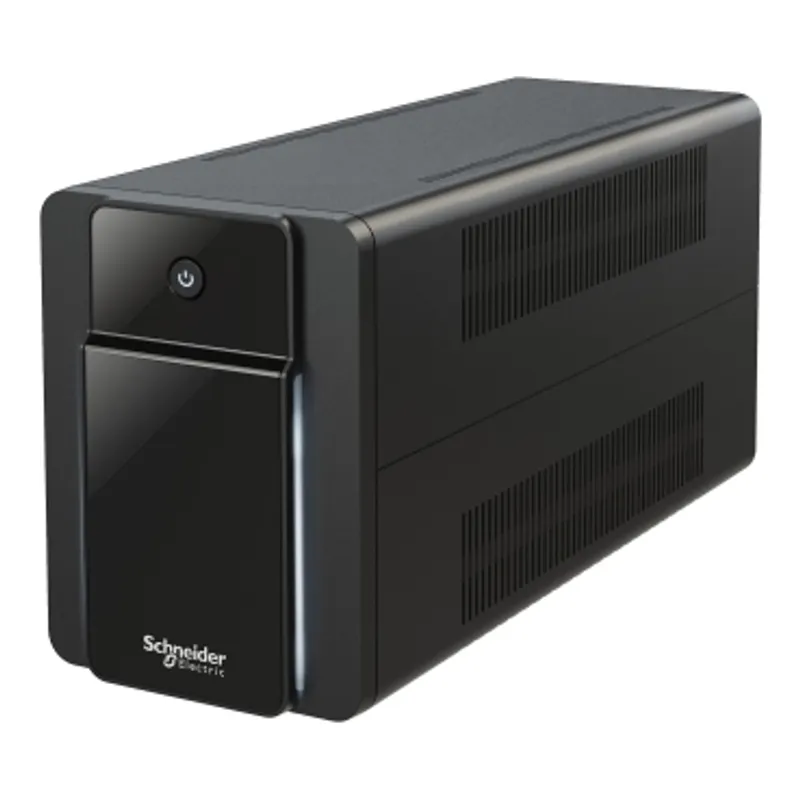

Schneider Electric BXS1200MI-GR
SE Back-UPS, 1200VA, Tower, 230V, 4 x CEE 7/7 Schuko outlets, AVR
- MPN
- BXS1200MI-GR
- Category
- APC Back-UPS
Discontinued by Schneider Electric — we can still source the original BXS1200MI-GR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BXS1200MI-GR?
Schneider Electric SE Back-UPS, 1200VA, Tower, 230V, 4 x CEE 7/7 Schuko outlets, AVR, manufacturer part number BXS1200MI-GR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Cos phi | 0.54 |
| Input voltage limits | 140...300 V |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 650 W |
| rated power in VA | 1200 VA |

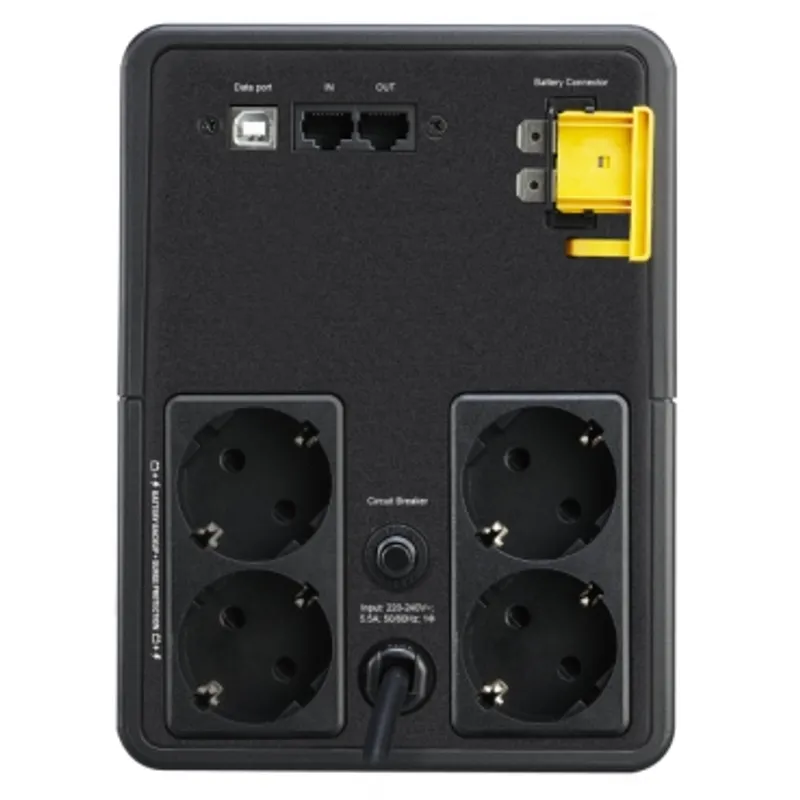

| Output connection type | 4 Schuko |
| USB Charging Port | None |
| Maximum configurable power in VA | 1200 VA |
| Maximum configurable power in W | 650 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 650 W |
| Half load runtime | 00:05:00 300 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Battery capacity | 9.0 Ah |
| Battery type | Lead-acid battery |
| Control panel | LED Status display with on line : on battery |
| UPS connectivity | None |
| Surge energy rate | 273 J |
| Cable length | 1.2 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 190 mm |
| Width | 140 mm |
| Depth | 390 mm |
| Net weight | 7.6 kg |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | Yes |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | CE, CB |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…40 °C |
| Storage altitude | 0…3000 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 40 dBA |
| Operating altitude | 0...3000 m |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | 12 V |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery design life | 3…5 year(s) |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC175 |
Packaging
| Package 1 | 1 PCE, 49.500 cm × 23.500 cm × 30.500 cm (L × W × H), 9.100 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BXS1200MI-GR: frequently asked questions
Can I still buy the BXS1200MI-GR now that it is discontinued?
Yes. Schneider Electric has discontinued the BXS1200MI-GR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can BXS1200MI-GR be shipped?
BXS1200MI-GR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BXS1200MI-GR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BXS1200MI-GR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BXS1200MI-GR, subject to availability and destination.
