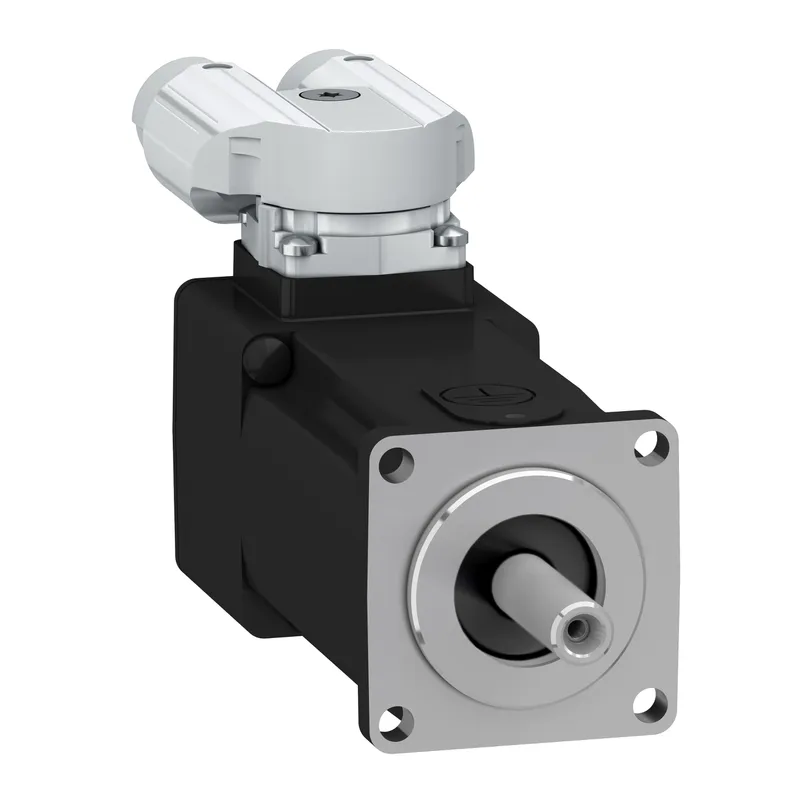

Schneider Electric BSH0402P27A2A – AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - without brake - IP65

Name: Schneider Electric BSH0402P27A2A – AC servo motor BSH - 0.38N.m - 9000 rpm - untapped shaft - without brake - IP65
Brand: Schneider Electric
SKU: BSH0402P27A2A

MPN: BSH0402P27A2A · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606485467283
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BSH0402P27A2A be shipped?

BSH0402P27A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0402P27A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0402P27A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0402P27A2A, subject to availability and destination.

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This AC servo motor features a maximum mechanical speed of 10000RPM, a smooth shaft end, and no holding brake. It is equipped with an absolute multi-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. It is a servo motor with a rated supply voltage of 400V and a continuous stall current of 1.5A. It is furnished with rotatable right-angle connectors for electrical connection and is an IP65-rated product. Its flange is 40x40mm, and it is a 2-stack length, and it weighs 4.3kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives, type LXM32nU45M2 and LXM32nU60N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 40mm flange mount with a natural convection cooling system. Lexium 32 is a servo drive range that provides a drive and motor combination that has exactly the right power, performance, and functionality. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	10000 rpm
Continuous stall torque	0.38 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.38 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.38 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Peak stall torque	1.37 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.37 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.37 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal output power	275 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 289 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 152 W for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal torque	0.292 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.307 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.364 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase
Nominal speed	9000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 9000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 4000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase
Shaft end	Smooth shaft
IP degree of protection	IP65 standard
Speed feedback resolution	32768 points/turn x 4096 turns
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32
supply voltage max	400 V
Network number of phases	Three phase
Continuous stall current	1.5 A
maximum continuous power	398 W
Maximum current Irms	6 A for LXM32.U60N4 at 480 V; 6 A for LXM32.U60N4 at 400 V; 6 A for LXM32.U45M2 at 230 V
Maximum permanent current	1.5 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	8 mm
Shaft length	25 mm
Feedback type	Multiturn SinCos Hiperface
Motor flange size	40 mm
Number of motor stacks	2
Torque constant	0.26 N.m/A at 120 °C
Back emf constant	18 V/krpm at 20 °C
Number of motor poles	5.0
Rotor inertia	0.0419 kg.cm²
Stator resistance	11.6 Ohm at 20 °C
Stator inductance	6.4 mH at 20 °C
Stator electrical time constant	1.1 ms at 20 °C
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	93.4 mm
Centring collar diameter	30 mm
Centring collar depth	2.5 mm
Number of mounting holes	4
Mounting holes diameter	4.5 mm
Circle diameter of the mounting holes	46 mm
Net weight	0.6 kg
Sizing reference	BSH0402P
Network number of phases	3
Accuracy error [angular]	0.08 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	7.2 A
Inertia	0.0 kg.cm² of brake; 0.042 kg.cm² of motor
