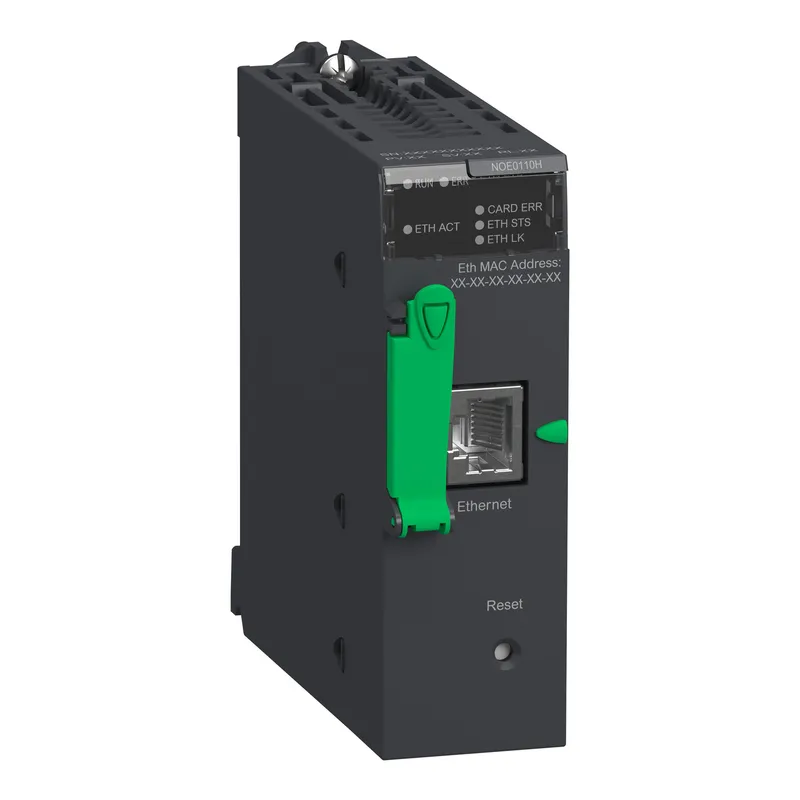

Schneider Electric BMXNOE0110H – Ethernet TCP/IP network module M340 - transparent ready class C30 server
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon M340 |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3595864009735 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can BMXNOE0110H be shipped?
BMXNOE0110H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXNOE0110H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXNOE0110H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXNOE0110H, subject to availability and destination.
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M340 automation platform |
| Product or component type | Ethernet TCP/IP network module |
| Product specific application | For severe environments |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | Conformal coating |
Complementary
| Communication service | Bandwidth management; FDR server; Rack Viewer; SNMP network administrator; Global Data; I/O scanning; Modbus TCP messaging; Web server configurable; Data Editor (via PC, pocket PC or PDA terminal); SOAP XML Web service (server) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M); Internal RAM 16000 kB |
| Memory usage | User web page size: internal RAM; Activating the standard web server: supplied Flash memory card (BMXRWSC016M); Application saving: supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT); 1 LED (green) for processor running (RUN); 1 LED (green) for status of Ethernet network (ETH STS); 1 LED (red) for data rate (ETH 100); 1 LED (red) for memory card fault (CARD ERR); 1 LED (red) for processor or system fault (ERR) |
| Control type | RESET push-button cold restart |
| Current consumption | 90 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
Environment
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive |
| Product certifications | CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22 |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04; Gas resistant class 3C4 conforming to IEC 60721-3-3; Dust resistant class 3S4 conforming to IEC 60721-3-3; Sand resistant class 3S4 conforming to IEC 60721-3-3; Salt resistant level 2 conforming to IEC 68252; Mold growth resistant class 3B2 conforming to IEC 60721-3-3; Fungal spore resistant class 3B2 conforming to IEC 60721-3-3; Hazardous location class I division 2 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet BMXNOE0110H |
More Schneider Electric parts
Available on requestEthernet module M340 - 4 x RJ45 10/100
Available on requestEthernet module M580 - TCP/IP & EIP network module - Bus X backplane
Available on requestEthernet TCP/IP network module M340 - transparent ready class B30 server
Available on requestEthernet module M340 - flash memory card - internal RAM 16 Mb - 1 x RJ45 10/100
Available on requestcommunication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode
Available on requestcommunication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode, severe environment

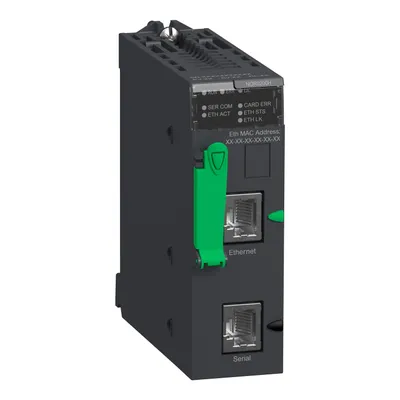

Available on requestEthernet / Serial RTU module - 2 x RJ45
