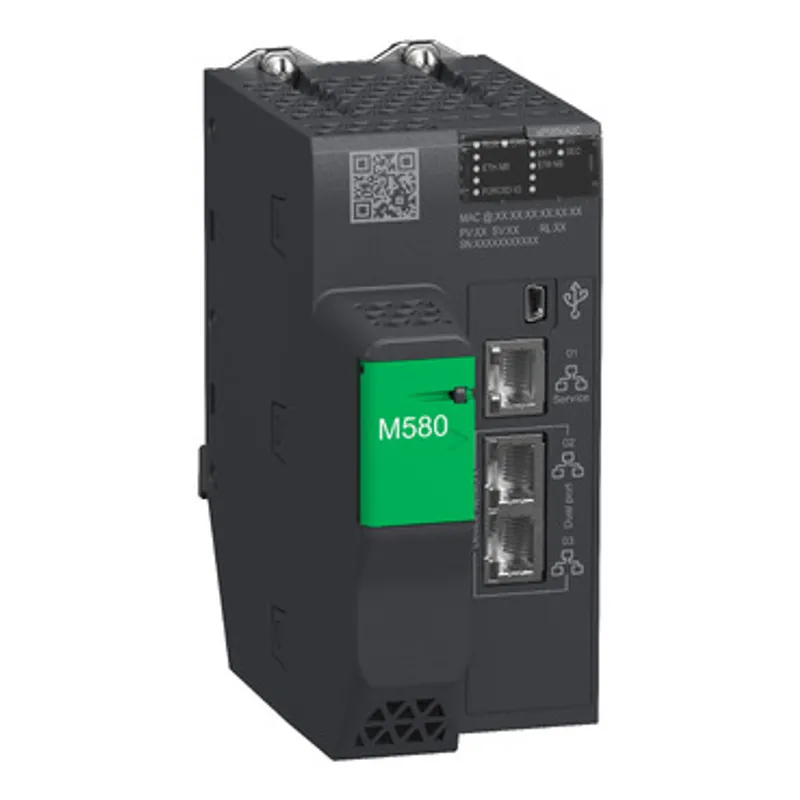

standalone processor, Modicon M580, 24MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum, conformal coating
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon M580 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.85 kg |
Shipping & availability
When can BMEP585040C be shipped?
BMEP585040C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMEP585040C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMEP585040C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMEP585040C, subject to availability and destination.
This standalone processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This product offers a maximum of 8 local rack and 31 remote rack configuration with up to 36864 discrete I/O channels and 9216 analog I/O channels. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months. It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console. It has an integrated RAM of 24MB for program, 4096kb for data, 10kb for system memory and expandable flash of 4GB for data storage. This product is IP20 rated and offers 763033 hours of MTBF. The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product complies with CE, UL, CSA, RCM, EAC, UKCA, and ATEX/IECEx zone 2/22 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This offer is compatible with Modicon X80 modules and Quantum IO remote racks. The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Processor module |
| Impregnation material | Conformal coated |
| Number of racks | 8 |
| Local I/O processor capacity (discrete) | 5120 I/O |
| Local I/O processor capacity (analog) | 1280 I/O |
| Number of application specific channel (local rack) | 180 |
| Application specific I/O | Accurate time stamping, Motion control, Serial link, HART, SSI encoder, Counter |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B |
| Number of remote I/O station | 31 - 2 rack(s) per remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 16 AS-Interface module, 6 Ethernet communication module |
| Communication service | RIO scanner, DIO scanner |
| Memory description | Expandable flash, 4 GB for data storage, Integrated RAM, 10 kB for system memory, Integrated RAM, 24 MB for program, Integrated RAM, 4096 kB for data |
| Application structure | 1 periodic fast task, 2 auxiliary tasks, 128 event tasks, 1 cyclic/periodic master task |
| Number of instructions per ms | 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 50 Kinst/ms 100 % Boolean |
| Current consumption | 300 mA at 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green) I/O values overrided by user (FORCED IO) |
| Net weight | 0.849 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 17.500 cm |
| Package 1 Length | 25.000 cm |
| Package 1 Weight | 880.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.730 kg |
| Warranty (in months) | 18 |
