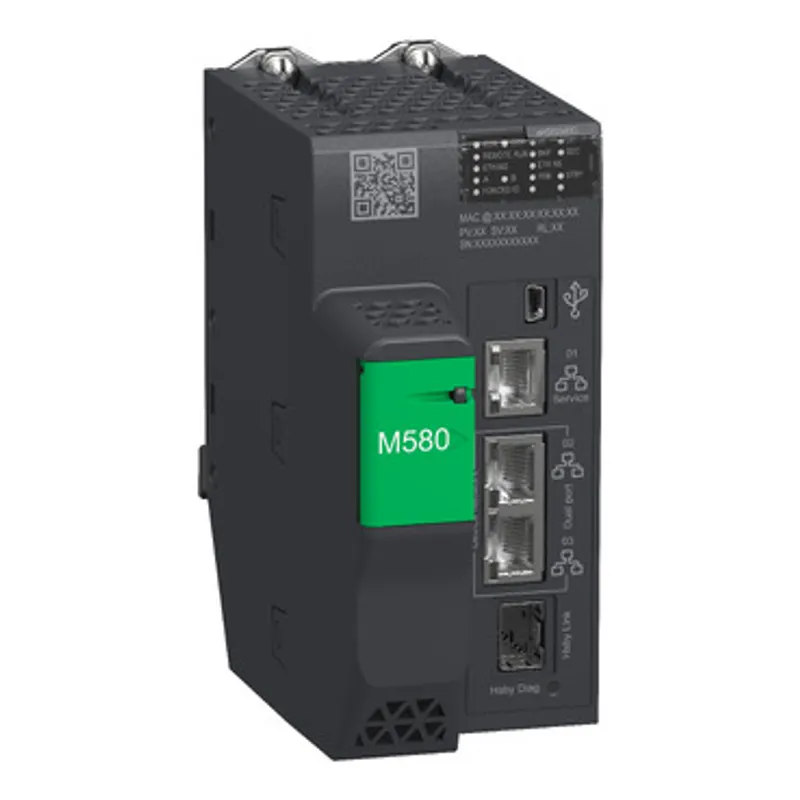

Schneider Electric BMEH582040C
Redundant processor, Modicon M580, 8MB, 61 Ethernet devices, 8 local racks, 8 remote IO racks, conformal coating
- MPN
- BMEH582040C
- EAN
- 3606485439983
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BMEH582040C?
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 270mA at 24V DC. It supports 8192 discrete, 2048 analogue local I/O channels and 64 distributed equipment. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
| Impregnation material | Conformal coated |
| Number of racks | 1 |
| Application specific I/O | Serial link, HART, Counter, Motion control, Accurate time stamping, SSI encoder |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B, 1 Ethernet for HSBY port |
| Number of remote I/O station | 8 - 2 rack(s) per X80 remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 2 Ethernet communication module, 16 AS-Interface module |
| Communication service | RIO scanner, DIO scanner |
| Memory description | Expandable flash, 4 GB for data storage, Integrated RAM, 10 kB for system memory, Integrated RAM, 8 MB for program, Integrated RAM, 768 kB for data |
| Application structure | 1 periodic fast task, 1 cyclic/periodic master task |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean |
| Current consumption | 270 mA at 24 V DC |
| MTBF reliability | 650000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3, Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green) processor ID set to A (A), 1 LED (green) processor ID set to B (B), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor acting as Standby (STBY), 1 LED (green) I/O values overrided by user (FORCED IO), 1 LED (green) Hot standby link status (Hsby Diag) |
| Net weight | 0.849 kg |
Packaging
| Package 1 | 1 PCE, 25.000 cm × 18.000 cm × 8.900 cm (L × W × H), 886.000 g |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.820 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMEH582040C: frequently asked questions
When can BMEH582040C be shipped?
BMEH582040C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMEH582040C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMEH582040C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMEH582040C, subject to availability and destination.
