Schneider Electric BK350EI

APC Back-UPS, 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

MPN
BK350EI
EAN
0731304016342
Category
Back-UPS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BK350EI?

This APC Back-UPS BK350EI offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 350VA tower UPS has 4 total outlets, 3 of which are battery back up and surge protection, and one that is surge protection only. It has a surge energy rating of 310 Joules. It provides data line protection with a RJ45 analog phone line for phone, fax, modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6,68kg. The BK350EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. This UPS has a 2-year warranty and CE product certification.

Specifications

Specifications

Max. Capacity Used
Main Input Voltage230 V AC 1 phase
Input Connection TypeIEC 60320 C14
Maximum input current7 A
Switching current capacity7 A
Input voltage limits180...266 V
Network frequency50/60 Hz +/- 3 Hz auto-sensing
Output voltage230 V AC 1 phase
Rated power in W210 W
rated power in VA350 VA

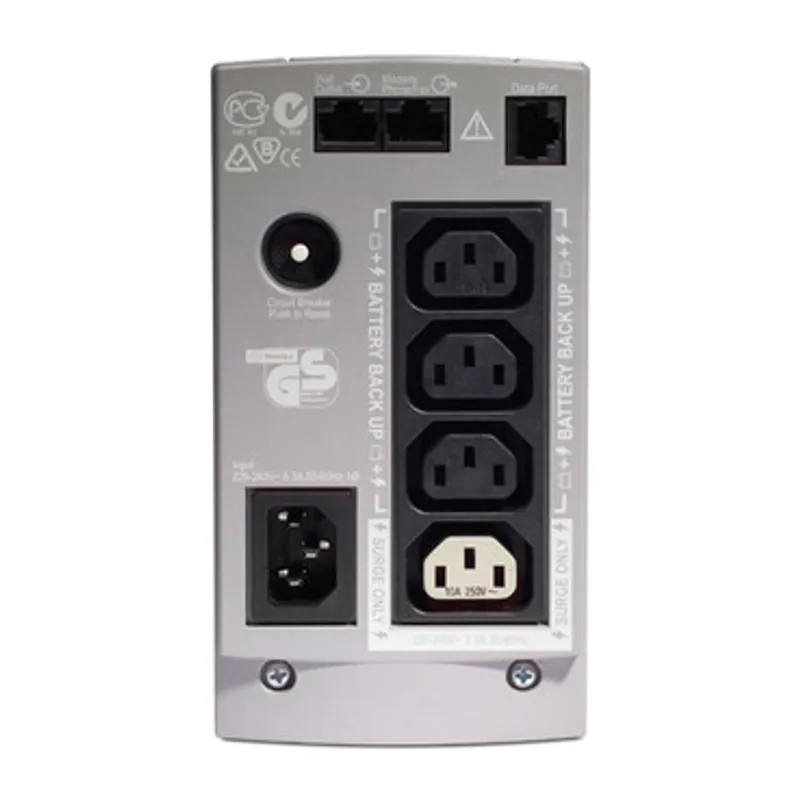

Output connection type3 IEC 60320 C13, 1 IEC 60320 C13 surge, 2 IEC Jumpers
USB Charging PortNone
Maximum configurable power in VA350 VA
Maximum configurable power in W210 W
Transfer time6 ms typical : 10 ms maximum
UPS typeStandby
Output frequency47...63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised
Battery capacity7.0 Ah
Battery typeLead-acid battery
Control panelLED status display with on line : on battery : replace battery and overload indicators
Free slots0
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivityUSB port
Surge energy rate310 J
Noise suppressionFull time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Cable length1.16 m
Number of cables2
ColourBeige
Height165 mm
Width91 mm
Depth284 mm
Net weight6.32 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeTower
Two post mountable0
USB compatibleYes
Provided equipmentCD with software, Documentation CD, Installation manual in japanese, Detachable IEC power cord, Detachable 1.2 m IEC power cord, Telephone cable, USB cable, Warranty card
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Range of productBack-UPS
Product or component typeUninterruptible power supply (UPS)
Product certificationsC-Tick, CE, GOST, VDE
StandardsEN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0…15240 m
Relative humidity0…95 %
Storage Relative Humidity0…95 %
Heat dissipation19 Btu/h
Operating altitude0...10000 ft
Run TimeView Runtime Graph
EfficiencyView Efficiency Graph
Battery voltage12 V
Battery graph commentsThis graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time6 h
Number of battery replacement quantity1
Battery life4…6 year(s)
Replacement batteryRBC2
Battery charger power14 W rated
SCC1410731304016349

Packaging

Package 11 PCE, 41.500 cm × 19.000 cm × 24.000 cm (L × W × H), 6.435 kg
Package 270 PAM, 120.000 cm × 100.000 cm × 142.000 cm (L × W × H), 492.450 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BK350EI: frequently asked questions

When can BK350EI be shipped?

BK350EI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BK350EI in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BK350EI and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BK350EI, subject to availability and destination.
