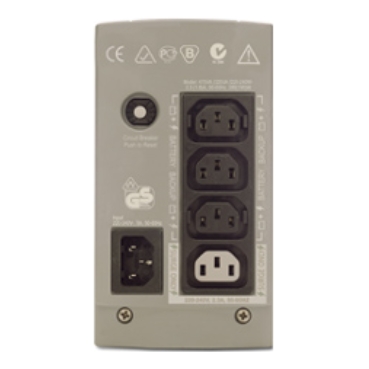

APC Back-UPS CS 325VA, 230V, without auto shutdown software, 4 IEC outlets (1 surge)
Can you tell me about the APC Back-UPS 325VA (BK325I) and what makes it unique? The APC Back-UPS 325VA (BK325I) is a compact uninterruptible power supply (UPS) designed to protect home office and small business electronics from power outages, voltage fluctuations, and power surges. It provides reliable battery backup and surge protection for essential devices such as desktop computers, networking equipment, and peripherals. One of its key advantages is its combination of battery-backed and surge-only outlets, helping users maintain productivity and safeguard valuable equipment during unexpected power interruptions. What are the key technical specifications of the APC Back-UPS 325VA (BK325I)? The BK325I delivers 325VA / 195W rated power with a maximum configurable output of 210W. It features four IEC outlets, including three battery backup and surge-protected outlets plus one surge-protection-only outlet. The UPS uses a sealed lead-acid battery and provides runtime support during short power outages. The unit also includes LED status indicators, audible alarms, full-time noise filtering, and 310 Joules of surge protection for connected equipment. What benefits does the APC Back-UPS 325VA (BK325I) offer? The APC Back-UPS 325VA helps protect critical electronics from data loss and hardware damage caused by blackouts, and electrical surges. Its compact tower design makes it easy to deploy in space-constrained environments, while the battery backup provides valuable time to save work and safely shut down connected devices. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Visual and audible status notifications, and dependable APC power protection technology make this UPS an ideal solution for home offices, workstations, broadband equipment, and other essential electronic systems.
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 60320 C14 |
| Maximum input current | 7 A |
| Switching current capacity | 7 A |
| Input voltage limits | 180...266 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 195 W |
| rated power in VA | 325 VA |
| Output connection type | 3 IEC 60320 C13, 1 IEC 60320 C13 surge, 2 IEC Jumpers |
| USB Charging Port | None |
| Maximum configurable power in VA | 350 VA |
| Maximum configurable power in W | 210 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Standby |
| Wave type | Stepped approximation to a sinewave |
| Output frequency | 47...63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised |
| Battery capacity | 7.0 Ah |
| Battery type | Lead-acid battery |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Surge energy rate | 310 J |
| Noise suppression | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Colour | Beige |
| Height | 165 mm |
| Width | 91 mm |
| Depth | 284 mm |
| Net weight | 5.73 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | Yes |
| Provided equipment | 2 x detachable IEC C13 to IEC C14 power cords, User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | C-Tick, CE, GOST, VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Heat dissipation | 19 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | 12 V |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Number of battery replacement quantity | 1 |
| Battery life | 4…6 year(s) |
| Replacement battery | RBC2 |
| Battery charger power | 14 W rated |
| Package 1 | 1 PCE, 41.500 cm × 23.500 cm × 19.000 cm (L × W × H), 6.351 kg |
| Package 2 | 2 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 13.352 kg |
| Package 3 | 8 P06, 60.000 cm × 80.000 cm × 75.000 cm (L × W × H), 62.120 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
BK325I is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for BK325I and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BK325I, subject to availability and destination.
