Schneider Electric BCH2LD0233CF5C

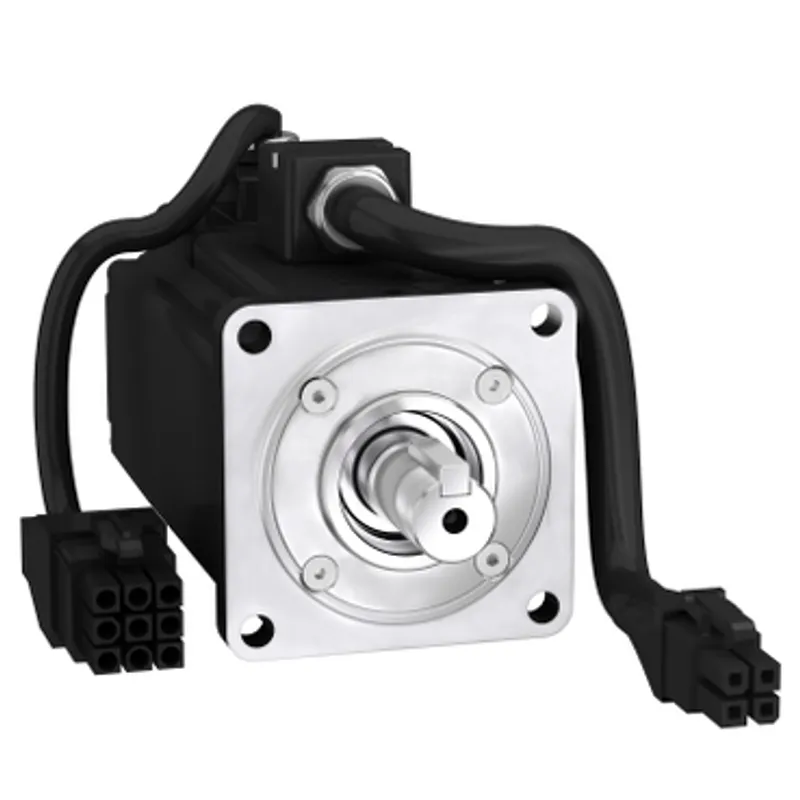

Servo motor BCH, Lexium 28, 60mm, 200W, 0.17kg.cm², with oil seal, with key, brake, leads connection
- MPN
- BCH2LD0233CF5C
- EAN
- 3606480733550
- Category
- Lexium 28 & Motors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BCH2LD0233CF5C?
Schneider Electric servo motor BCH, Lexium 28, 60mm, 200W, 0.17kg.cm², with oil seal, with key, brake, leads connection, manufacturer part number BCH2LD0233CF5C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range compatibility | Lexium 28 |
| Device short name | BCH2 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 5000 rpm |
| [Us] rated supply voltage | 220 V, 110 V |
| Network number of phases | 1 |
| Continuous stall current | 1.11 A |
| Continuous stall torque | 0.64 N.m for LXM26D at 1.5 A, 220 V, single phase, 0.64 N.m for LXM26D at 1.5 A, 220 V, three phase, 0.64 N.m for LXM28 at 1.5 A, 220 V, single phase, 0.64 N.m for LXM28 at 1.5 A, 220 V, three phase, 0.64 N.m for LXM28 at 3.6 A, 110 V, single phase |
| Continuous power | 200 W |
| Peak stall torque | 1.92 N.m for LXM26D at 1.5 A, 220 V, single phase, 1.92 N.m for LXM26D at 1.5 A, 220 V, three phase, 1.92 N.m for LXM28... at 1.5 A, 220 V, single phase, 1.92 N.m for LXM28... at 1.5 A, 220 V, three phase, 1.92 N.m for LXM28... at 3.6 A, 110 V, single phase |
| Nominal output power | 200 W for LXM26D at 1.5 A, 220 V, single phase, 200 W for LXM26D at 1.5 A, 220 V, three phase, 200 W for LXM28... at 1.5 A, 220 V, single phase, 200 W for LXM28... at 1.5 A, 220 V, three phase, 200 W for LXM28... at 3.6 A, 110 V, single phase |
| Nominal torque | 0.64 N.m for LXM26D at 1.5 A, 220 V, single phase, 0.64 N.m for LXM26D at 1.5 A, 220 V, three phase, 0.64 N.m for LXM28... at 1.5 A, 220 V, single phase, 0.64 N.m for LXM28... at 1.5 A, 220 V, three phase, 0.64 N.m for LXM28... at 3.6 A, 110 V, single phase |
| Nominal speed | 3000 rpm for LXM26D at 1.5 A, 220 V, single phase, 3000 rpm for LXM26D at 1.5 A, 220 V, three phase, 3000 rpm for LXM28... at 1.5 A, 220 V, single phase, 3000 rpm for LXM28... at 1.5 A, 220 V, three phase, 3000 rpm for LXM28... at 3.6 A, 110 V, single phase |
| Maximum current Irms | 4.31 A for LXM28... at 0.2 kW, 220 V, 4.31 A for LXM28... at 0.2 kW, 110 V |
| Maximum permanent current | 1.3 A |
| Product compatibility | LXM26D servo drive motor at 0.2 kW, 220 V, single phase, LXM26D servo drive motor at 0.2 kW, 220 V, three phase, LXM28... servo drive motor at 0.2 kW, 220 V, single phase, LXM28... servo drive motor at 0.2 kW, 220 V, three phase, LXM28... servo drive motor at 0.2 kW, 110 V, single phase |
| Shaft end | Keyed |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Key width | 5 mm |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | With |
| Holding torque | 1.3 N.m built-in |
| Mounting support | Asian standard flange |
| Motor flange size | 60 mm |
| Electrical connection | Free lead |
| Torque constant | 0.58 N.m/A at 20 °C |
| Back emf constant | 35 V/krpm at 20 °C |
| Number of motor poles | 4.0 |
| Rotor inertia | 0.17 kg.cm² |
| Stator resistance | 12.2 Ohm at 20 °C |
| Stator inductance | 22.68 mH at 20 °C |
| Stator electrical time constant | 1.84 ms at 20 °C |
| Maximum radial force Fr | 200 N at 3000 rpm |
| Maximum axial force Fa | 70 N |
| Brake pull-in power | 11.2 W |
| Type of cooling | Natural convection |
| Length | 140 mm |
| Number of motor stacks | 1 |
| Centring collar diameter | 50 mm |
| Centring collar depth | 5.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 70 mm |
| Distance shaft shoulder-flange | 5.5 mm |
| Net weight | 1.5 kg |
| Sizing reference | BCH2 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Inertia | 0.16 kg.cm² of brake, 0.17 kg.cm² of motor |
| IP degree of protection | IP50 IM V3, IP65 IM B5, IM V1 |
| Ambient air temperature for operation | 0…40 °C |
Packaging
| Package 1 | 1 PCE, 27.200 cm × 14.700 cm × 12.000 cm (L × W × H), 1.825 kg |
| Package 2 | 5 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 9.448 kg |
