Schneider Electric BCH2LD0232CA5C

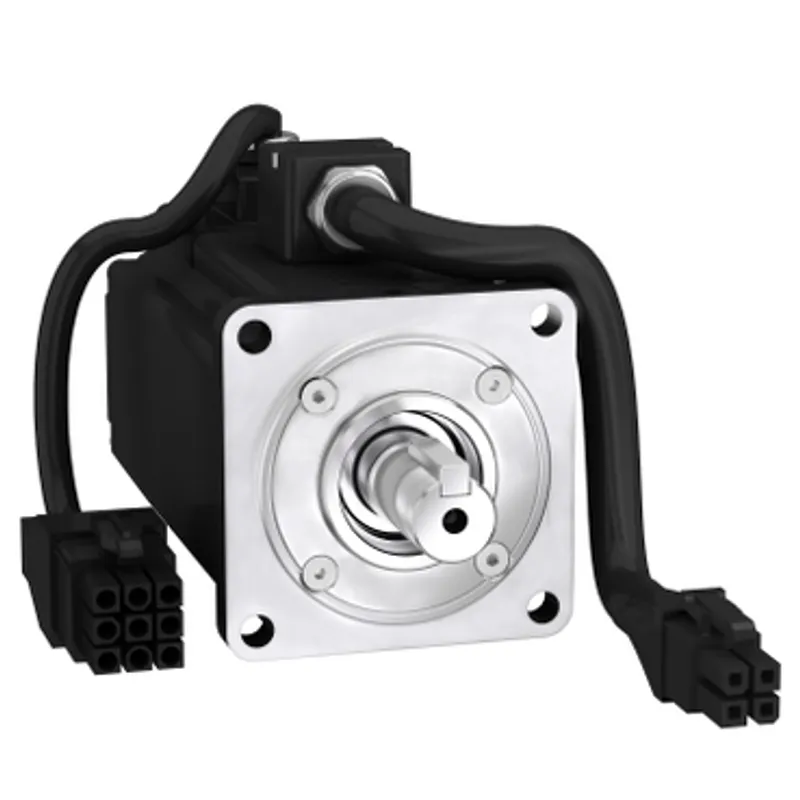

Servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm², with oil seal, smooth, leads connection
- MPN
- BCH2LD0232CA5C
- EAN
- 3606480733529
- Category
- Lexium 28 & Motors
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BCH2LD0232CA5C (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric BCH2LD0232CA5C?
Schneider Electric servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm², with oil seal, smooth, leads connection, manufacturer part number BCH2LD0232CA5C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range compatibility | Lexium 28 |
| Device short name | BCH2 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 5000 rpm |
| [Us] rated supply voltage | 220 V, 110 V |
| Network number of phases | 1 |
| Continuous stall current | 1.11 A |
| Continuous stall torque | 0.64 N.m for LXM28 at 1.5 A, 220 V, single phase, 0.64 N.m for LXM28 at 1.5 A, 220 V, three phase, 0.64 N.m for LXM28 at 3.6 A, 110 V, single phase |
| Continuous power | 200 W |
| Peak stall torque | 1.92 N.m for LXM28... at 1.5 A, 220 V, single phase, 1.92 N.m for LXM28... at 1.5 A, 220 V, three phase, 1.92 N.m for LXM28... at 3.6 A, 110 V, single phase |
| Nominal output power | 200 W for LXM28... at 1.5 A, 220 V, single phase, 200 W for LXM28... at 1.5 A, 220 V, three phase, 200 W for LXM28... at 3.6 A, 110 V, single phase |
| Nominal torque | 0.64 N.m for LXM28... at 1.5 A, 220 V, single phase, 0.64 N.m for LXM28... at 1.5 A, 220 V, three phase, 0.64 N.m for LXM28... at 3.6 A, 110 V, single phase |
| Nominal speed | 3000 rpm for LXM28... at 1.5 A, 220 V, single phase, 3000 rpm for LXM28... at 1.5 A, 220 V, three phase, 3000 rpm for LXM28... at 3.6 A, 110 V, single phase |
| Maximum current Irms | 4.31 A for LXM28... at 0.2 kW, 220 V, 4.31 A for LXM28... at 0.2 kW, 110 V |
| Maximum permanent current | 1.3 A |
| Product compatibility | LXM28... servo drive motor at 0.2 kW, 220 V, single phase, LXM28... servo drive motor at 0.2 kW, 220 V, three phase, LXM28... servo drive motor at 0.2 kW, 110 V, single phase |
| Shaft end | Smooth shaft |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | Without |
| Mounting support | Asian standard flange |
| Motor flange size | 60 mm |
| Electrical connection | Free lead |
| Torque constant | 0.58 N.m/A at 20 °C |
| Back emf constant | 35 V/krpm at 20 °C |
| Number of motor poles | 4.0 |
| Rotor inertia | 0.16 kg.cm² |
| Stator resistance | 12.2 Ohm at 20 °C |
| Stator inductance | 22.68 mH at 20 °C |
| Stator electrical time constant | 1.84 ms at 20 °C |
| Maximum radial force Fr | 200 N at 3000 rpm |
| Maximum axial force Fa | 70 N |
| Brake pull-in power | 11.2 W |
| Type of cooling | Natural convection |
| Length | 104 mm |
| Number of motor stacks | 1 |
| Centring collar diameter | 50 mm |
| Centring collar depth | 5.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 70 mm |
| Distance shaft shoulder-flange | 5.5 mm |
| Net weight | 1.02 kg |
| Sizing reference | BCH2 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Inertia | 0.0 kg.cm² of brake, 0.15 kg.cm² of motor |
| IP degree of protection | IP50 IM V3, IP65 IM B5, IM V1 |
| Ambient air temperature for operation | -20…40 °C |
Packaging
| Package 1 | 1 PCE, 26.5 cm × 14.5 cm × 11.1 cm (L × W × H), 1.67 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BCH2LD0232CA5C: frequently asked questions
Can I still buy the BCH2LD0232CA5C now that it is discontinued?
Yes. Schneider Electric has discontinued the BCH2LD0232CA5C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can BCH2LD0232CA5C be shipped?
BCH2LD0232CA5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BCH2LD0232CA5C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BCH2LD0232CA5C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2LD0232CA5C, subject to availability and destination.
