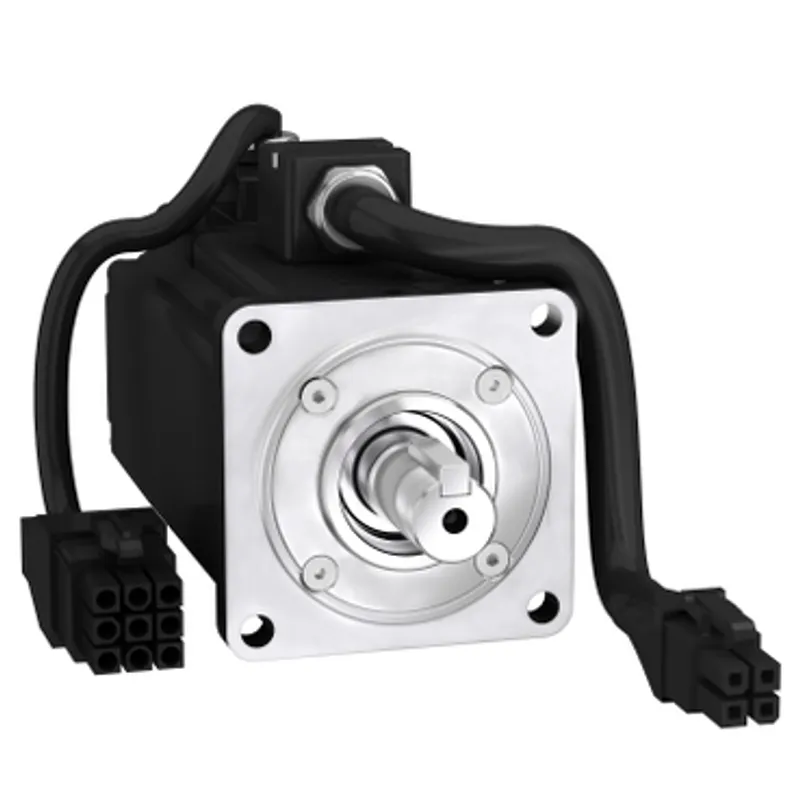

Servo motor BCH, Lexium 28, 60mm, 400W, 0.27kg.cm², without oil seal, with key, leads connection
"This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors." "This brushless servo motor features maximum mechanical speed of 5000RPM, a key shaft end, without holding brake." "It is equipped with a 20 bits single turn absolute encoder." "It is equipped with flying leads." "It is a servo motor with a rated supply voltage of 110V to 220V, a continuous stall current of 2.19A and a continuous power of 400W." "Shaft end and casing are an IP65 rated." "The flange size is 30mm, it is fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 50mm. It weighs 1.45kg." "BCH2 servo motors with Lexium servo drives meet the requirements of production and packaging machinery, material handling and assembly systems." "This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O/AC 2010 standards, and conforms to EU CE, UKCA, CSA, and UL." "This servo motor is compatible with LXM28 servo drive at 0.4kW, 220V, and with encoder cables and power cables." "Permitted mounting positions are horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7." "Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines." "Designed for optimized & cost-effective."
| Range compatibility | Lexium 28 |
| Device short name | BCH2 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 5000 rpm |
| [Us] rated supply voltage | 220 V, 110 V |
| Network number of phases | 1 |
| Continuous stall current | 2.19 A |
| Continuous stall torque | 1.27 N.m for LXM28 at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28 at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28 at 5.7 A, 110 V, single phase |
| Continuous power | 400 W |
| Peak stall torque | 3.81 N.m for LXM28... at 2.6 A, 220 V, single phase, 3.81 N.m for LXM28... at 2.6 A, 220 V, three phase, 3.81 N.m for LXM28... at 5.7 A, 110 V, single phase |
| Nominal output power | 400 W for LXM28... at 2.6 A, 220 V, single phase, 400 W for LXM28... at 2.6 A, 220 V, three phase, 400 W for LXM28... at 5.7 A, 110 V, single phase |
| Nominal torque | 1.27 N.m for LXM28... at 2.6 A, 220 V, single phase, 1.27 N.m for LXM28... at 2.6 A, 220 V, three phase, 1.27 N.m for LXM28... at 5.7 A, 110 V, single phase |
| Nominal speed | 3000 rpm for LXM28... at 2.6 A, 220 V, single phase, 3000 rpm for LXM28... at 2.6 A, 220 V, three phase, 3000 rpm for LXM28... at 5.7 A, 110 V, single phase |
| Maximum current Irms | 7.76 A for LXM28... at 0.4 kW, 220 V, 7.76 A for LXM28... at 0.4 kW, 110 V |
| Maximum permanent current | 2.5 A |
| Product compatibility | LXM28... servo drive motor at 0.4 kW, 220 V, single phase, LXM28... servo drive motor at 0.4 kW, 220 V, three phase, LXM28... servo drive motor at 0.4 kW, 110 V, single phase |
| Shaft end | Keyed |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Key width | 5 mm |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | Without |
| Mounting support | Asian standard flange |
| Motor flange size | 60 mm |
| Electrical connection | Free lead |
| Torque constant | 0.58 N.m/A at 20 °C |
| Back emf constant | 35 V/krpm at 20 °C |
| Number of motor poles | 4.0 |
| Rotor inertia | 0.27 kg.cm² |
| Stator resistance | 5.2 Ohm at 20 °C |
| Stator inductance | 12.0 mH at 20 °C |
| Stator electrical time constant | 2.31 ms at 20 °C |
| Maximum radial force Fr | 200 N at 3000 rpm |
| Maximum axial force Fa | 70 N |
| Brake pull-in power | 11.2 W |
| Type of cooling | Natural convection |
| Length | 129 mm |
| Number of motor stacks | 2 |
| Centring collar diameter | 50 mm |
| Centring collar depth | 5.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 70 mm |
| Distance shaft shoulder-flange | 5.5 mm |
| Net weight | 1.45 kg |
| Sizing reference | BCH2 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Inertia | 0.0 kg.cm² of brake, 0.26 kg.cm² of motor |
| IP degree of protection | IP54 IM B5, IM V1, IP50 IM V3 |
| Ambient air temperature for operation | -20…40 °C |
| Package 1 | 1 PCE, 26.5 cm × 14.5 cm × 11.1 cm (L × W × H), 2.08 kg |
