Schneider Electric BCH2HF0733CA5C

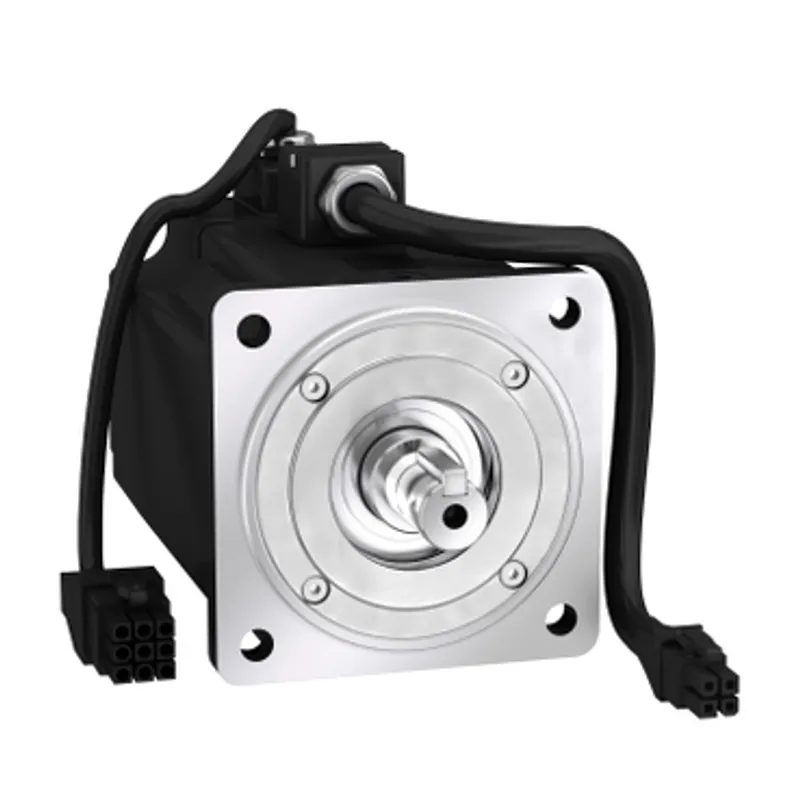

Servo motor BCH; Lexium 28; 80mm; 750W; 1;54kg.cm²; with oil seal; with key; leads connection

MPN
BCH2HF0733CA5C
EAN
3606480733789
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2HF0733CA5C?

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 138mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 2.9kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current4.01 A
Continuous stall torque2.39 N.m for LXM26D at 4.5 A, 220 V, single phase, 2.39 N.m for LXM26D at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 9 A, 110 V, single phase
Continuous power750 W
Peak stall torque7.16 N.m for LXM26D at 4.5 A, 220 V, single phase, 7.16 N.m for LXM26D at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, single phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 9 A, 110 V, single phase
Nominal output power750 W for LXM26D at 4.5 A, 220 V, single phase, 750 W for LXM26D at 4.5 A, 220 V, three phase, 750 W for LXM28... at 4.5 A, 220 V, single phase, 750 W for LXM28... at 4.5 A, 220 V, three phase, 750 W for LXM28... at 9 A, 110 V, single phase
Nominal torque2.39 N.m for LXM26D at 4.5 A, 220 V, single phase, 2.39 N.m for LXM26D at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 9 A, 110 V, single phase
Nominal speed3000 rpm for LXM26D at 4.5 A, 220 V, single phase, 3000 rpm for LXM26D at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 4.5 A, 220 V, single phase, 3000 rpm for LXM28... at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 9 A, 110 V, single phase
Maximum current Irms13.23 A for LXM28... at 0.75 kW, 220 V, 13.23 A for LXM28... at 0.75 kW, 110 V
Maximum permanent current4.29 A
Product compatibilityLXM26D servo drive motor at 0.75 kW, 220 V, single phase, LXM26D servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 220 V, single phase, LXM28... servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 110 V, single phase
Shaft endKeyed
Shaft diameter19 mm
Shaft length35 mm
Key width6 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size80 mm
Electrical connectionFree lead
Torque constant0.6 N.m/A at 20 °C
Back emf constant36 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia1.54 kg.cm²
Stator resistance1.5 Ohm at 20 °C
Stator inductance6.1 mH at 20 °C
Stator electrical time constant4.07 ms at 20 °C
Maximum radial force Fr332 N at 3000 rpm
Maximum axial force Fa115 N
Brake pull-in power10.2 W
Type of coolingNatural convection
Length138 mm
Number of motor stacks2
Centring collar diameter70 mm
Centring collar depth4 mm
Number of mounting holes4
Mounting holes diameter6.6 mm
Circle diameter of the mounting holes90 mm
Distance shaft shoulder-flange4 mm
Net weight2.9 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 1.53 kg.cm² of motor
IP degree of protectionIP50 IM V3, IP65 IM B5, IM V1
Ambient air temperature for operation-20…40 °C

Packaging

Package 11 PCE, 30.000 cm × 18.000 cm × 14.500 cm (L × W × H), 3.394 kg
Package 22 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.303 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2HF0733CA5C: frequently asked questions

When can BCH2HF0733CA5C be shipped?

BCH2HF0733CA5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2HF0733CA5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2HF0733CA5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2HF0733CA5C, subject to availability and destination.
