Schneider Electric BCH2HF0731CA5C

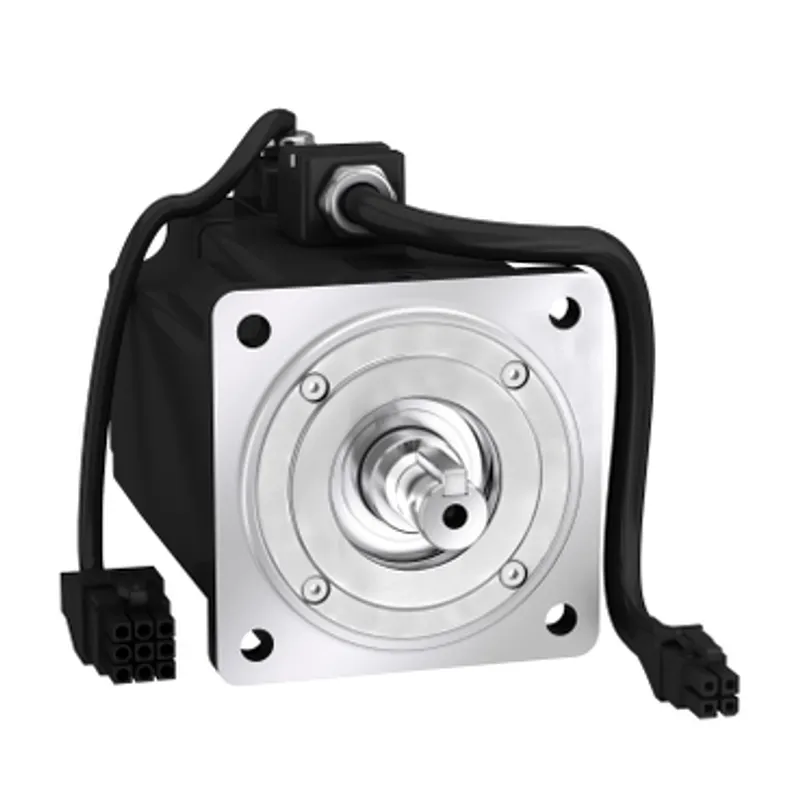

Servo motor BCH, Lexium 28, 80mm, 750W, 1.54kg.cm², without oil seal, with key, leads connection

MPN
BCH2HF0731CA5C
EAN
3606480733741
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BCH2HF0731CA5C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BCH2HF0731CA5C?

This product is part of the Lexium 28 range, an offer of servo drives paired with motors for motion control. This brushless servo motor has a maximum mechanical speed of 5000RPM, a keyed shaft end, without a holding brake. It is equipped with a 20-bit single-turn absolute encoder. This servo motor is suitable for high-efficiency applications. Its rated supply voltage is 110V to 220V, its continuous stall current is 4.01A, and its continuous power is 750W. The shaft end is IP54 rated, and the casing is IP65 rated. The flange size is 80mm, it is fixed by 4x 6.6mm holes, and it weighs 2.9kg. BCH2 servo motors with Lexium servo drives meet the requirements of production and packaging machinery, material handling and assembly systems. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to EU CE, UKCA, CSA, and UL. This servo motor is compatible with LXM28 servo drive at 0.75kW, 220V, and with encoder cables and power cables. It is sold individually. Permitted mounting positions are horizontal mounting (IMB5), vertical mounting (IMV1, IMV3) in accordance with IEC 60034-7. Lexium 28 servo drives, paired with BCH2 servo motors, deliver a high-performance, cost-effective motion control solution.

Specifications

Specifications

Range compatibilityLexium 28
Device short nameBCH2
Product or component typeServo motor
Maximum mechanical speed5000 rpm
[Us] rated supply voltage220 V, 110 V
Network number of phases1
Continuous stall current4.01 A
Continuous stall torque2.39 N.m for LXM28 at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 9 A, 110 V, single phase
Continuous power750 W
Peak stall torque7.16 N.m for LXM28... at 4.5 A, 220 V, single phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 9 A, 110 V, single phase
Nominal output power750 W for LXM28... at 4.5 A, 220 V, single phase, 750 W for LXM28... at 4.5 A, 220 V, three phase, 750 W for LXM28... at 9 A, 110 V, single phase
Nominal torque2.39 N.m for LXM28... at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 9 A, 110 V, single phase
Nominal speed3000 rpm for LXM28... at 4.5 A, 220 V, single phase, 3000 rpm for LXM28... at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 9 A, 110 V, single phase
Maximum current Irms13.23 A for LXM28... at 0.75 kW, 220 V, 13.23 A for LXM28... at 0.75 kW, 110 V
Maximum permanent current4.29 A
Product compatibilityLXM28... servo drive motor at 0.75 kW, 220 V, single phase, LXM28... servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 110 V, single phase
Shaft endKeyed
Shaft diameter19 mm
Shaft length35 mm
Key width6 mm
Feedback type20 bits single turn absolute encoder
Holding brakeWithout
Mounting supportAsian standard flange
Motor flange size80 mm
Electrical connectionFree lead
Torque constant0.6 N.m/A at 20 °C
Back emf constant36 V/krpm at 20 °C
Number of motor poles4.0
Rotor inertia1.54 kg.cm²
Stator resistance1.5 Ohm at 20 °C
Stator inductance6.1 mH at 20 °C
Stator electrical time constant4.07 ms at 20 °C
Maximum radial force Fr332 N at 3000 rpm
Maximum axial force Fa115 N
Brake pull-in power10.2 W
Type of coolingNatural convection
Length138 mm
Number of motor stacks2
Centring collar diameter70 mm
Centring collar depth4 mm
Number of mounting holes4
Mounting holes diameter6.6 mm
Circle diameter of the mounting holes90 mm
Distance shaft shoulder-flange4 mm
Net weight2.9 kg
Sizing referenceBCH2
Accuracy error [angular]0.044 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Inertia0.0 kg.cm² of brake, 1.53 kg.cm² of motor
IP degree of protectionIP54 IM B5, IM V1, IP50 IM V3
Ambient air temperature for operation-20…40 °C

Packaging

Package 11 PCE, 29.6 cm × 17.5 cm × 13.8 cm (L × W × H), 3.48 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BCH2HF0731CA5C: frequently asked questions

Can I still buy the BCH2HF0731CA5C now that it is discontinued?

Yes. Schneider Electric has discontinued the BCH2HF0731CA5C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BCH2HF0731CA5C be shipped?

BCH2HF0731CA5C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BCH2HF0731CA5C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BCH2HF0731CA5C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BCH2HF0731CA5C, subject to availability and destination.
