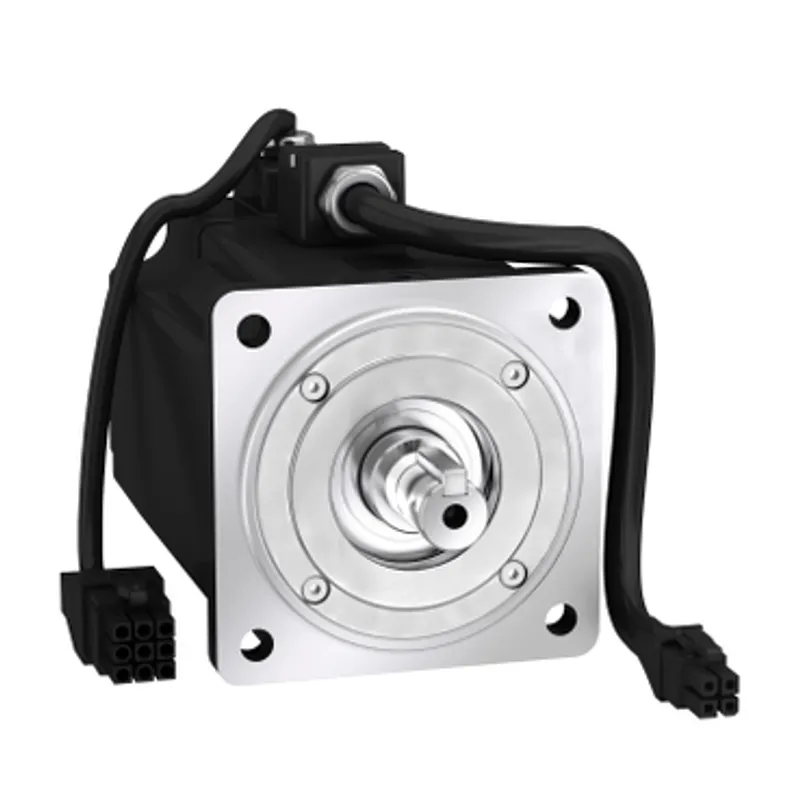

Servo motor BCH; Lexium 28; 80mm; 750W; 1.59kg.cm²; with oil seal; with key; brake; leads connection
- MPN
- BCH2HF0733CF5C
- EAN
- 3606480733796
- Category
- Lexium 28 & Motors
Discontinued by Schneider Electric — we can still source the original BCH2HF0733CF5C (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BCH2HF0733CF5C?
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 178mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 3.7kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Specifications
Specifications
| Range compatibility | Lexium 28 |
| Device short name | BCH2 |
| Product or component type | Servo motor |
| Maximum mechanical speed | 5000 rpm |
| [Us] rated supply voltage | 220 V, 110 V |
| Network number of phases | 1 |
| Continuous stall current | 4.01 A |
| Continuous stall torque | 2.39 N.m for LXM26D at 4.5 A, 220 V, single phase, 2.39 N.m for LXM26D at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28 at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28 at 9 A, 110 V, single phase |
| Continuous power | 750 W |
| Peak stall torque | 7.16 N.m for LXM26D at 4.5 A, 220 V, single phase, 7.16 N.m for LXM26D at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, single phase, 7.16 N.m for LXM28... at 4.5 A, 220 V, three phase, 7.16 N.m for LXM28... at 9 A, 110 V, single phase |
| Nominal output power | 750 W for LXM26D at 4.5 A, 220 V, single phase, 750 W for LXM26D at 4.5 A, 220 V, three phase, 750 W for LXM28... at 4.5 A, 220 V, single phase, 750 W for LXM28... at 4.5 A, 220 V, three phase, 750 W for LXM28... at 9 A, 110 V, single phase |
| Nominal torque | 2.39 N.m for LXM26D at 4.5 A, 220 V, single phase, 2.39 N.m for LXM26D at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, single phase, 2.39 N.m for LXM28... at 4.5 A, 220 V, three phase, 2.39 N.m for LXM28... at 9 A, 110 V, single phase |
| Nominal speed | 3000 rpm for LXM26D at 4.5 A, 220 V, single phase, 3000 rpm for LXM26D at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 4.5 A, 220 V, single phase, 3000 rpm for LXM28... at 4.5 A, 220 V, three phase, 3000 rpm for LXM28... at 9 A, 110 V, single phase |
| Maximum current Irms | 13.23 A for LXM28... at 0.75 kW, 220 V, 13.23 A for LXM28... at 0.75 kW, 110 V |
| Maximum permanent current | 4.29 A |
| Product compatibility | LXM26D servo drive motor at 0.75 kW, 220 V, single phase, LXM26D servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 220 V, single phase, LXM28... servo drive motor at 0.75 kW, 220 V, three phase, LXM28... servo drive motor at 0.75 kW, 110 V, single phase |
| Shaft end | Keyed |
| Shaft diameter | 19 mm |
| Shaft length | 35 mm |
| Key width | 6 mm |
| Feedback type | 20 bits single turn absolute encoder |
| Holding brake | With |
| Holding torque | 2.5 N.m built-in |
| Mounting support | Asian standard flange |
| Motor flange size | 80 mm |
| Electrical connection | Free lead |
| Torque constant | 0.6 N.m/A at 20 °C |
| Back emf constant | 36 V/krpm at 20 °C |
| Number of motor poles | 4.0 |
| Rotor inertia | 1.59 kg.cm² |
| Stator resistance | 1.5 Ohm at 20 °C |
| Stator inductance | 6.1 mH at 20 °C |
| Stator electrical time constant | 4.07 ms at 20 °C |
| Maximum radial force Fr | 332 N at 3000 rpm |
| Maximum axial force Fa | 115 N |
| Brake pull-in power | 10.2 W |
| Type of cooling | Natural convection |
| Length | 178 mm |
| Number of motor stacks | 2 |
| Centring collar diameter | 70 mm |
| Centring collar depth | 4 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 6.6 mm |
| Circle diameter of the mounting holes | 90 mm |
| Distance shaft shoulder-flange | 4 mm |
| Net weight | 3.7 kg |
| Sizing reference | BCH2 |
| Accuracy error [angular] | 0.044 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Inertia | 1.58 kg.cm² of brake, 1.59 kg.cm² of motor |
| IP degree of protection | IP50 IM V3, IP65 IM B5, IM V1 |
| Ambient air temperature for operation | 0…40 °C |
