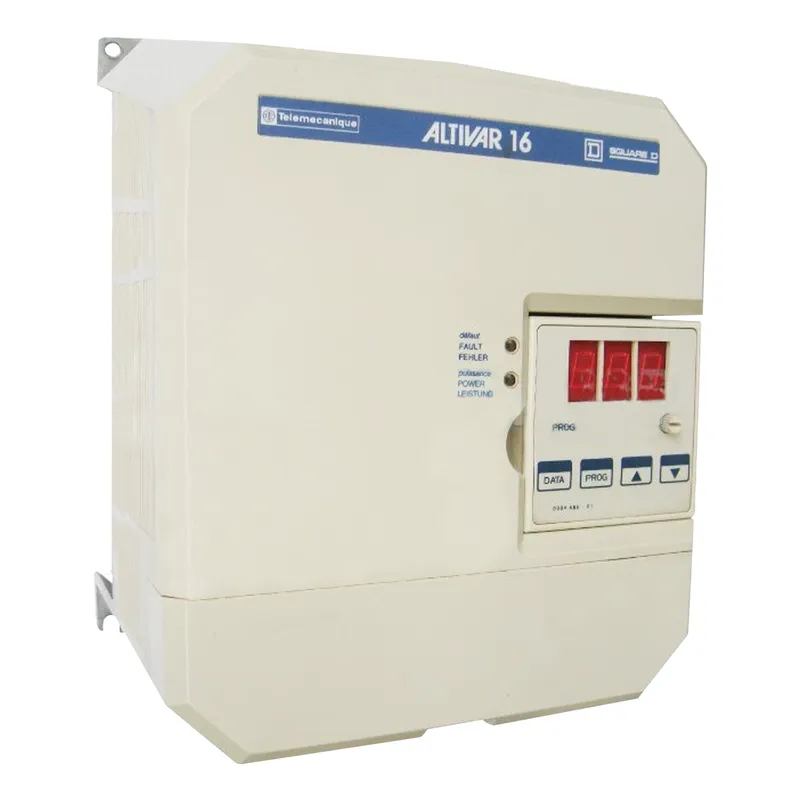

ATV16 2.9KVA - 208/240V single phases - IP31
Discontinued by Schneider Electric — we can still source the original ATV16U29M2Q (new, used or refurbished, subject to availability). Request a quote below.
Schneider Electric ATV16U29M2Q — ATV16 2.9KVA - 208/240V single phases - IP31. Discontinued by Schneider Electric; the manufacturer's successor is VW3A95812. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
| Range of product | Altivar 16 |
| Product or component type | Variable speed drive |
| Product destination | Asynchronous motors |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Supply frequency | 50/60 Hz +/- 5 % |
| Network frequency limits | 47.5…63 Hz |
| Network number of phases | 1 phase |
| Motor power kW | 1.5 kW |
| Motor power hp | 2 hp |
| Line current | 16 A at 200 V; 13.5 A at 240 V |
| Apparent power | 1 kVA at 230 V |
| Prospective line Isc | 1 kA |
| Continuous output current | 7.8 A at 200 V; 7.8 A at 240 V |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 12...16 kHz with derating factor; 2...12 kHz adjustable |
| Local signalling | 1 LED (red) for DC bus energized |
| Output voltage | <= power supply voltage |
| Communication port protocol | Modbus |
| Connector type | 1 RJ45 |
| Physical interface | 2-wire RS 485 |
| Transmission frame | RTU |
| Transmission rate | 9600 bps or 19200 bps |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Height | 200 mm |
| Width | 180 mm |
| Depth | 144 mm |
| Option card | Communication card for APOGEE FLN; Communication card for BACnet; Communication card for LonWorks; Communication card for METASYS N2 |
| IP degree of protection | IP31 conforming to EN 60530; IP31 conforming to EN 61800-5-2; IP31 conforming to IEC 60529; IP31 conforming to IEC 61800-5-1 |
| Ambient air temperature for operation | -10…40 °C (without derating); 40…50 °C (with derating factor) |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | <= 2000 m; 1000...3000 m |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Yes. Schneider Electric has discontinued the ATV16U29M2Q, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the VW3A95812 as its successor — we can quote both.
ATV16U29M2Q is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for ATV16U29M2Q and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV16U29M2Q, subject to availability and destination.
