Schneider Electric ATV16U18M2Q

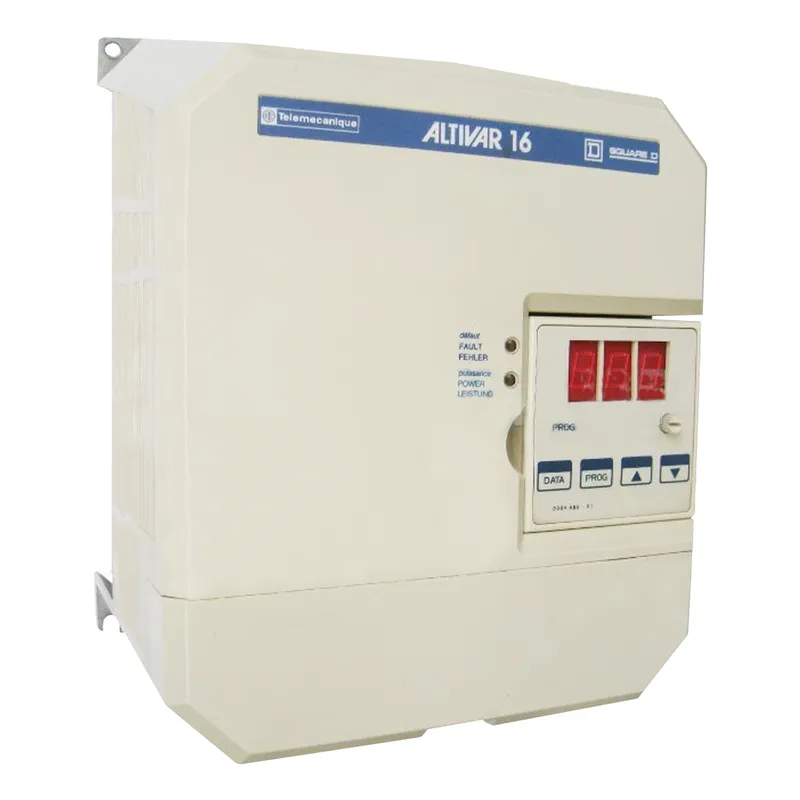

ALTIVAR16 1,8KVA 208/240V single phase - IP31

MPN
ATV16U18M2Q
EAN
3389110531985
Category
Altivar 16
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original ATV16U18M2Q (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric ATV16U18M2Q?

Schneider Electric ATV16U18M2Q — ALTIVAR16 1,8KVA 208/240V single phase - IP31. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productAltivar 16
Product or component typeVariable speed drive

Complementary

Product destinationAsynchronous motors
[Us] rated supply voltage200...240 V - 15...10 %
Supply frequency50/60 Hz +/- 5 %
Network frequency limits47.5…63 Hz
Network number of phases1 phase
Motor power kW0.75 kW
Motor power hp1 hp
Line current9.8 A at 200 V; 8.2 A at 240 V
Apparent power1 kVA at 230 V
Prospective line Isc1 kA
Continuous output current4.8 A at 200 V; 4.8 A at 240 V
Speed drive output frequency0.5…400 Hz
Nominal switching frequency4 kHz
Switching frequency12...16 kHz with derating factor; 2...12 kHz adjustable
Local signalling1 LED (red) for DC bus energized
Output voltage<= power supply voltage
Communication port protocolModbus
Connector type1 RJ45
Physical interface2-wire RS 485
Transmission frameRTU
Transmission rate9600 bps or 19200 bps
Data format8 bits, 1 stop, odd even or no configurable parity
Height160 mm
Width150 mm
Depth120 mm
Option cardCommunication card for APOGEE FLN; Communication card for BACnet; Communication card for LonWorks; Communication card for METASYS N2

Environment

IP degree of protectionIP31 conforming to EN 60530; IP31 conforming to EN 61800-5-2; IP31 conforming to IEC 60529; IP31 conforming to IEC 61800-5-1
Ambient air temperature for operation-10…40 °C (without derating); 40…50 °C (with derating factor)
Ambient air temperature for storage-25…70 °C
Operating altitude<= 2000 m; 1000...3000 m

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

ATV16U18M2Q: frequently asked questions

Can I still buy the ATV16U18M2Q now that it is discontinued?

Yes. Schneider Electric has discontinued the ATV16U18M2Q, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can ATV16U18M2Q be shipped?

ATV16U18M2Q is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV16U18M2Q in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV16U18M2Q and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV16U18M2Q, subject to availability and destination.
