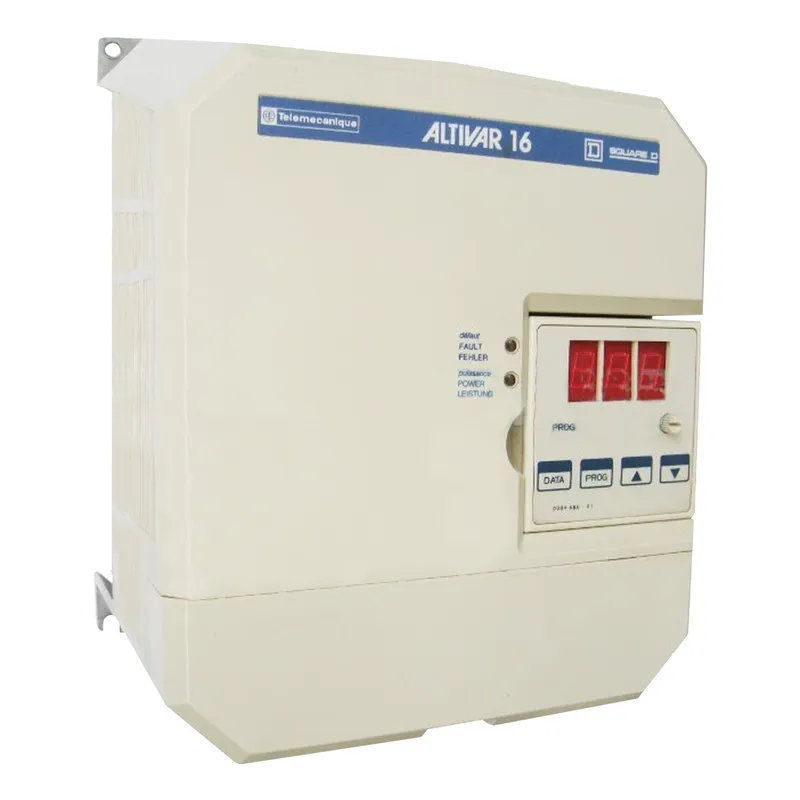

Schneider Electric ATV16U54N4Q – ALTIVAR16 5,4KVA 400/460V - 3 phases - IP31

Name: Schneider Electric ATV16U54N4Q – ALTIVAR16 5,4KVA 400/460V - 3 phases - IP31
Brand: Schneider Electric
SKU: ATV16U54N4Q

MPN: ATV16U54N4Q · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original ATV16U54N4Q (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar 16
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389110532050
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the ATV16U54N4Q now that it is discontinued?

Yes. Schneider Electric has discontinued the ATV16U54N4Q, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can ATV16U54N4Q be shipped?

ATV16U54N4Q is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV16U54N4Q in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV16U54N4Q and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV16U54N4Q, subject to availability and destination.

Schneider Electric ATV16U54N4Q — ALTIVAR16 5,4KVA 400/460V - 3 phases - IP31. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Altivar 16
Product or component type	Variable speed drive

Complementary

Product destination	Asynchronous motors
[Us] rated supply voltage	380...500 V - 15...10 %
Supply frequency	50/60 Hz +/- 5 %
Network frequency limits	47.5…63 Hz
Network number of phases	3 phases
Motor power kW	3 kW
Line current	10.3 A at 380 V; 9.1 A at 500 V
Apparent power	5 kVA at 400 V
Prospective line Isc	5 kA
Continuous output current	7.1 A at 380 V; 6.5 A at 500 V
Speed drive output frequency	0.5…400 Hz
Nominal switching frequency	4 kHz
Switching frequency	12...16 kHz with derating factor; 2...12 kHz adjustable
Local signalling	1 LED (red) for DC bus energized
Output voltage	<= power supply voltage
Communication port protocol	Modbus
Connector type	1 RJ45
Physical interface	2-wire RS 485
Transmission frame	RTU
Transmission rate	9600 bps or 19200 bps
Data format	8 bits, 1 stop, odd even or no configurable parity
Height	230 mm
Width	200 mm
Depth	152 mm
Option card	Communication card for APOGEE FLN; Communication card for BACnet; Communication card for LonWorks; Communication card for METASYS N2

Environment

IP degree of protection	IP31 conforming to EN 60530; IP31 conforming to EN 61800-5-2; IP31 conforming to IEC 60529; IP31 conforming to IEC 61800-5-1
Ambient air temperature for operation	-10…40 °C (without derating); 40…50 °C (with derating factor)
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 2000 m; 1000...3000 m
