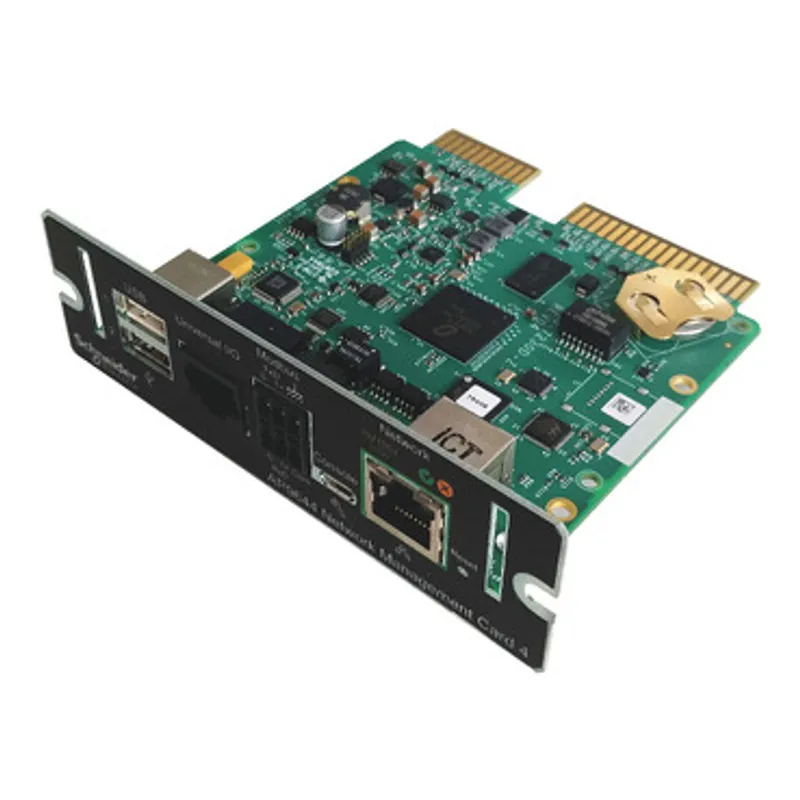

Schneider Electric AP9644
Device monitoring and management, Network Management Cards, NMC4 for Galaxy VS, Galaxy VL & Galaxy VXL, secure remote UPS monitoring and management
- MPN
- AP9644
- Category
- Galaxy VS Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AP9644?
The Network Management Card 4 enables essential and secure remote monitoring and management of one Galaxy VS, Galaxy VL or Galaxy VXL UPS, giving you mission-critical visibility. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. To help reduce the connected devices exposure to cyber threats, the Secure NMC System giving access to IEC 62443-4-2 compliant NMC firmware updates, is included for the first year with the purchase of The Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra), EcoCare membership with onsite maintenance visits for the UPS or a stand-alone onsite maintenance visit for the UPS is required to get future NMC firmware updates. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.
Specifications
Specifications
| Presentation | The Network Management Card 4 (AP9644) enables secure remote monitoring and control of one Galaxy VS, Galaxy VL or Galaxy VXL through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system., A 1-year Secure NMC System with IEC 62443-4-2 compliant NMC firmware updates is included with the purchase of the Network Management Card. After expiration of the 1-year included Secure NMC System, the purchase of an Advantage Plan (Plus, Prime, Ultra) or EcoCare membership with onsite maintenance visits for the UPS is required to get future NMC firmware updates.". |
| Range of product | Network Management Cards |
| Range compatibility | Galaxy VS, Galaxy VL, Galaxy VXL |
| Product or component type | Device monitoring and management |
| Provided equipment | Temperature sensor, Micro-USB cable, Installation manual |
| Number of input phases | 3 |
| Standards | EN 55035, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 62040-2, EN 55011:A1, EN 55024:A1, EN 55032:class A, VCCI class A, ICES-003:issue 6 |
| Variant option | Environmental monitoring with Modbus |
| Net weight | 0.14 kg |
| Width | 12.1 cm |
| Height | 3.8 cm |
| Depth | 10.8 cm |
| Product certifications | FCC Class A, AS/NZS |
| Storage Relative Humidity | 0…95 % |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…65 °C |
| Ambient air temperature for operation | -5…45 °C |
| Storage altitude | 0…15000 m, 0…15240 m |
| Operating altitude | 0...3000 m, 0...10000 ft |
| Communication network type | 10/100/1000BASE-T |
| Authentication | Radius |
| Communication port protocol | HTTP over secure sockets, Layer (HTTPS), SSH, FTP, HTTP, SNMP, DHCP, BOOTP (Bootstrap Protocol), TCP/IP |
Packaging
| Package 1 | 1 PCE, 23.495 cm × 16.612 cm × 5.004 cm (L × W × H), 0.798 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AP9644: frequently asked questions
When can AP9644 be shipped?
AP9644 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AP9644 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AP9644 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AP9644, subject to availability and destination.
