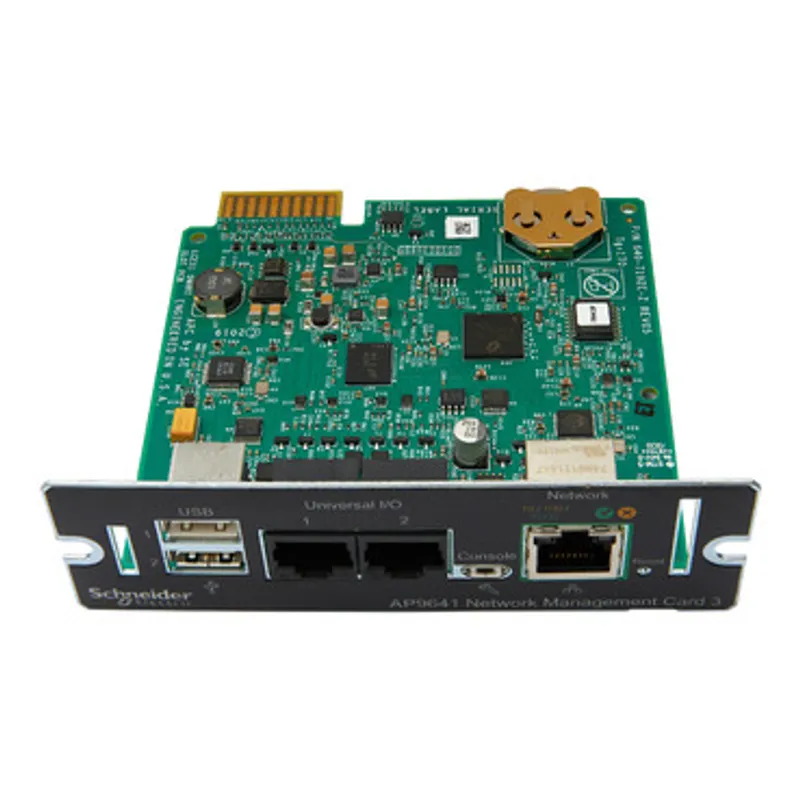

Schneider Electric AP9641
Device monitoring and management, Network Management Cards, NMC3 with Environmental Monitoring, secure remote UPS monitoring and management
- MPN
- AP9641
- Category
- Network Management Cards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AP9641?
The Network Management Card 3 enables essential and secure remote monitoring and management of a UPS, giving you mission-critical visibility. The included Universal I/O (UIO) ports enable support for environmental monitoring. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. The Network Management Card includes a 1-year Secure NMC Subscription which provides access to the latest firmware which is independently certified to the IEC 62443-4-2 standard. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.
Specifications
Specifications
| Range of product | Network Management Cards |
| Range compatibility | Galaxy VM, Galaxy VX, Symmetra PX, Easy UPS 3M Advanced, Easy UPS 3-Phase Modular, Galaxy PX, Galaxy 3L Pro, Smart-UPS, Smart-UPS Ultra, Smart-UPS Online, Smart-UPS Modular Ultra, Smart-UPS Battery Systems, Back-UPS SX3, Refurbished Smart-UPS |
| Product or component type | Device monitoring and management |
| Provided equipment | Temperature sensor, Micro-USB cable, Installation manual |
| Number of input phases | 1, 3 |
| Standards | EN 55024, BS EN 55024, EN 61000-4-2, BS EN 61000-4-2, EN 61000-4-3, BS EN 61000-4-3, EN 61000-4-4, BS EN 61000-4-4, EN 61000-4-5, BS EN 61000-4-5, EN 61000-4-6, BS EN 61000-4-6, EN 61000-4-8, BS EN 61000-4-8, EN 61000-4-11, BS EN 61000-4-11, EN 55035, BS EN 55035, EN 62040-2, BS EN 62040-2, EN 61326-2, BS EN 61326-2, ICES-003 class A, VCCI class A, EN 61000-6-3, BS EN 61000-6-3, EN 55032:class A, BS EN 55032:class A |
| Variant option | Environmental monitoring |
| Net weight | 0.09 kg |
| Width | 12.1 cm |
| Height | 3.8 cm |
| Depth | 11.4 cm |
| Product certifications | FCC Class A, AS/NZS, AS/NZS 3548 (C-Tick) class A, FCC part 15 class A, GOST, UK PSTI |
| Storage Relative Humidity | 0…95 % |
| Relative humidity | 0…95 % |
| Ambient air temperature for storage | -15…65 °C |
| Ambient air temperature for operation | -5…45 °C |
| Storage altitude | 0…15240 m |
| Operating altitude | 0...10000 ft |
| Communication network type | 10/100/1000BASE-T |
| Authentication | Radius, Lightweight Directory Access Protocol (LDAP) |
| Communication port protocol | HTTP over secure sockets, Layer (HTTPS), SSH, FTP, HTTP, SNMP, DHCP, BOOTP (Bootstrap Protocol), TCP/IP |
Packaging
| Package 1 | 1 PCE, 24.000 cm × 16.400 cm × 5.200 cm (L × W × H), 405.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AP9641: frequently asked questions
When can AP9641 be shipped?
AP9641 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AP9641 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AP9641 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AP9641, subject to availability and destination.
