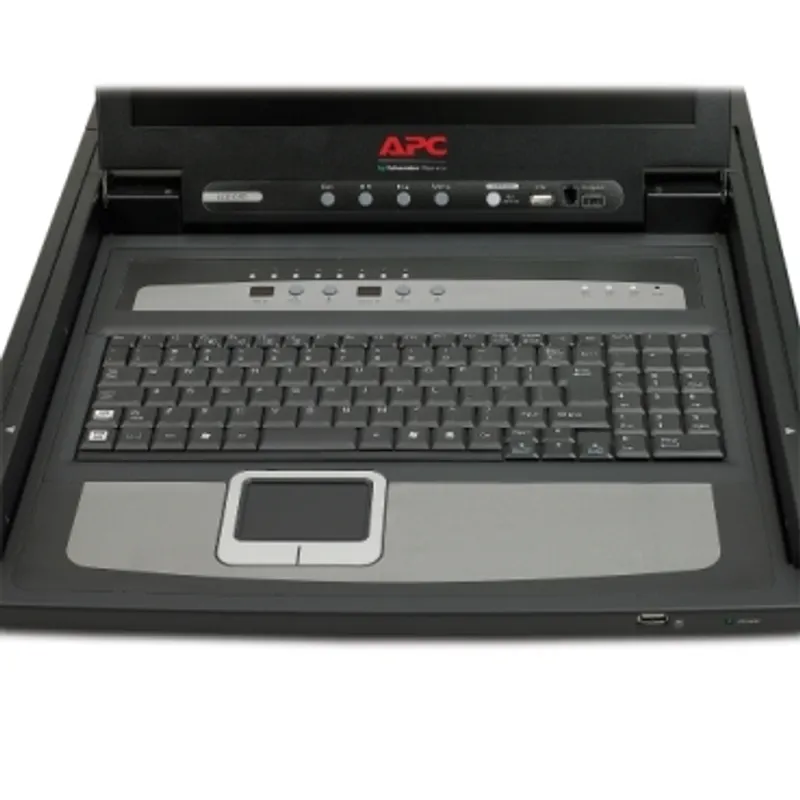

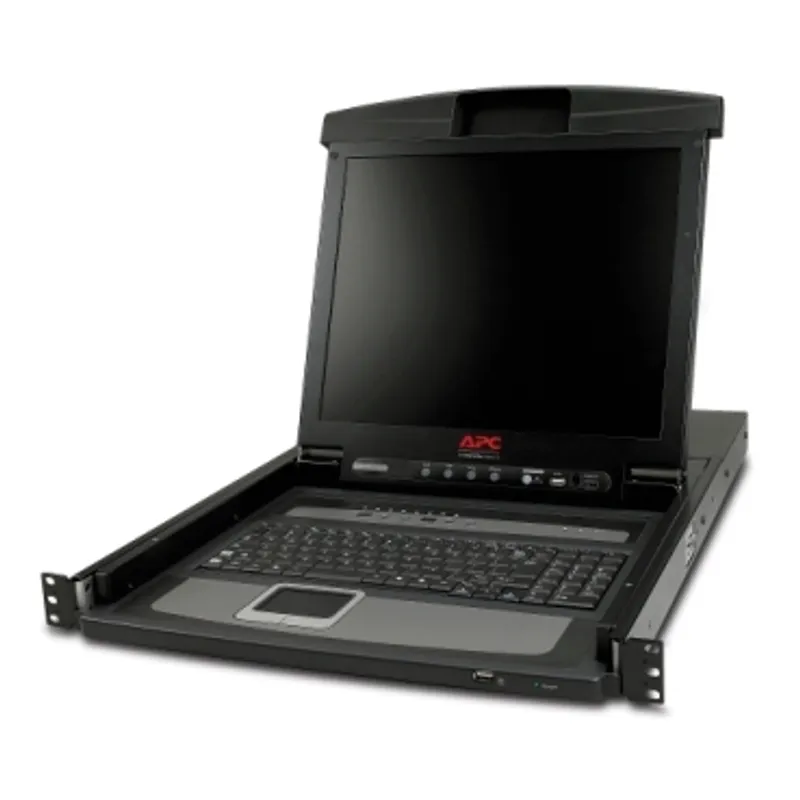

17" Rack LCD Console with Integrated 8 Port Analog KVM Switch
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | APC NetShelter Rack LCD Consoles |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 13.77 kg |
Shipping & availability
When can AP5808 be shipped?
AP5808 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AP5808 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AP5808 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AP5808, subject to availability and destination.
The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package Keyboard is a US English keyboard layout
Specifications
Specifications
| Presentation | The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package. Keyboard is a US English keyboard layout. |
| Lead time | Usually in Stock |
| Main Input Voltage | 120 V, 240 V |
| Input Connection Type | IEC 60320 C14 |
| Number of rack unit | 1U |
| Cable length | 1.82 m |
| Number of cables | 1 |
| Provided equipment | USB KVM cable, Single user rack mount kit, PS2 KVM cable, NEMA 5-15 power cord, Installation guide, Firmware upgrade cable, Documentation CD, C13-C14 power cord |
| Colour | Black |
| Height | 43 mm |
| Width | 483 mm |
| Depth | 711 mm |
| Net weight | 13.77 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Maximum mounting depth | 1049.8 mm |
| Minimum mounting depth | 680 mm |
| Network frequency | 50/60 Hz |
| Product certifications | cUL listed, C-Tick, CE, Industry Canada, KCC, UL listed, VDE, TAA compliance |
| Standards | EN 60950, FCC part 15 class A, IEC 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Display colour | 16 colours |
| Display size | 337.9 (H) x 270.3 (V), 17 inch |
| Trackball type | PS/2 touchpad, USB mouse |
| Display type | LCD display |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13 cm |
| Package 1 Width | 83 cm |
| Package 1 Length | 66.5 cm |
| Package 1 Weight | 19.86 kg |
| Warranty (in months) | 24 |
