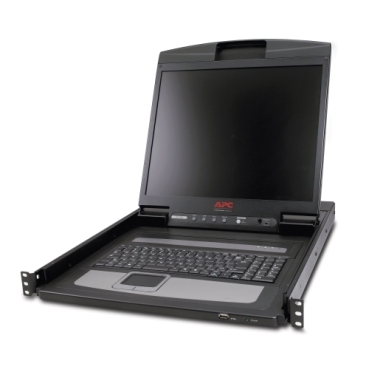

APC NetShelter Rack LCD Consoles Parts
Compare APC NetShelter Rack LCD Consoles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Main Input Voltage | Height | Depth | Net weight | Display size |
|---|---|---|---|---|---|
| AP5808 | 120 V, 240 V | 43 mm | 711 mm | 13.77 kg | 337.9 (H) x 270.3 (V), 17 inch |
| AP5717UK | 100 V, 240 V | 44 mm | 614 mm | 15.9 kg | 17 inch |
| AP5717F | 100 V, 240 V | 44 mm | 614 mm | 15.9 kg | 17 inch |
| AP5816 | 120 V, 240 V | 43 mm | 614 mm | 14 kg | 337.9 (H) x 270.3 (V), 17 inch |
| AP5719 | 100 V, 240 V | 44 mm | 665 mm | 17.4 kg | 19 inch |
| AP5717 | 100 V, 240 V | 44 mm | 614 mm | 15.9 kg | 17 inch |
Common to all listed parts
| Number of rack unit | 1U |
| Colour | Black |
| Mounting preference | No preference |
| Maximum mounting depth | 1049.8 mm |
| Minimum mounting depth | 680 mm |
| Network frequency | 50/60 Hz |
| Ambient air temperature for operation | 0…40 °C |
| Trackball type | PS/2 touchpad, USB mouse |
