Schneider Electric AP5717

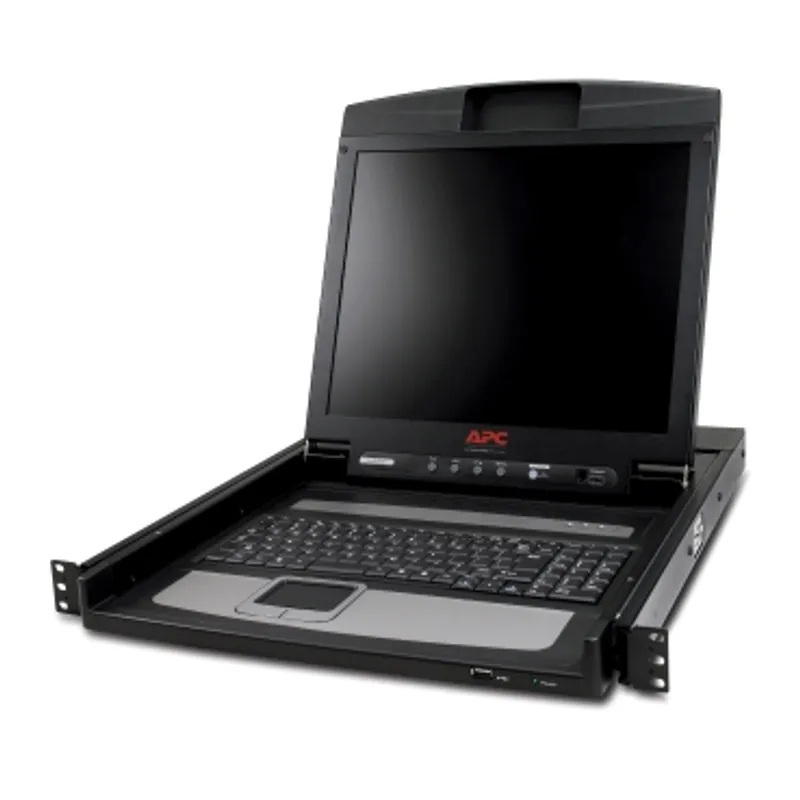

APC 17" Rack LCD Console
- MPN
- AP5717
- EAN
- 0731304283232
- Category
- APC NetShelter Rack LCD Consoles
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AP5717?
1U rack-mountable keyboard, mouse, and LCD console with US English keyboard layout
Specifications
Specifications
| Presentation | 1U rack-mountable keyboard, mouse, and LCD console with US English keyboard layout. |
| Main Input Voltage | 100 V, 240 V |
| Number of rack unit | 1U |
| Provided equipment | C13-C14 power cord, Documentation CD, Firmware upgrade cable, Installation guide, NEMA 5-15 power cord, PS2 KVM cable, Single user rack mount kit, USB cable, USB KVM cable |
| Colour | Black |
| Height | 44 mm |
| Width | 482 mm |
| Depth | 614 mm |
| Net weight | 15.9 kg |
| Mounting location | Front, Rear |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Maximum mounting depth | 1049.8 mm |
| Minimum mounting depth | 680 mm |
| Network frequency | 50/60 Hz |
| Product certifications | C-Tick, CE, Industry Canada, KCC, NOM, UL listed, VDE, TAA compliance |
| Standards | EN 55022 class A, EN 55024, EN 60950, FCC part 15 class A, IEC 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Display colour | 16 colours |
| Display size | 17 inch |
| Trackball type | PS/2 touchpad, USB mouse |
| Display type | LCD display |
| Display power consumption | 19 W |
| Pixel size | 0.26 |
Packaging
| Package 1 | 1 PCE, 83.800 cm × 68.000 cm × 14.000 cm (L × W × H), 17.571 kg |
