Schneider Electric AK2CD75
Cover for cable duct - Width=75mm
- MPN
- AK2CD75
- EAN
- 3389110570557
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric AK2CD75?

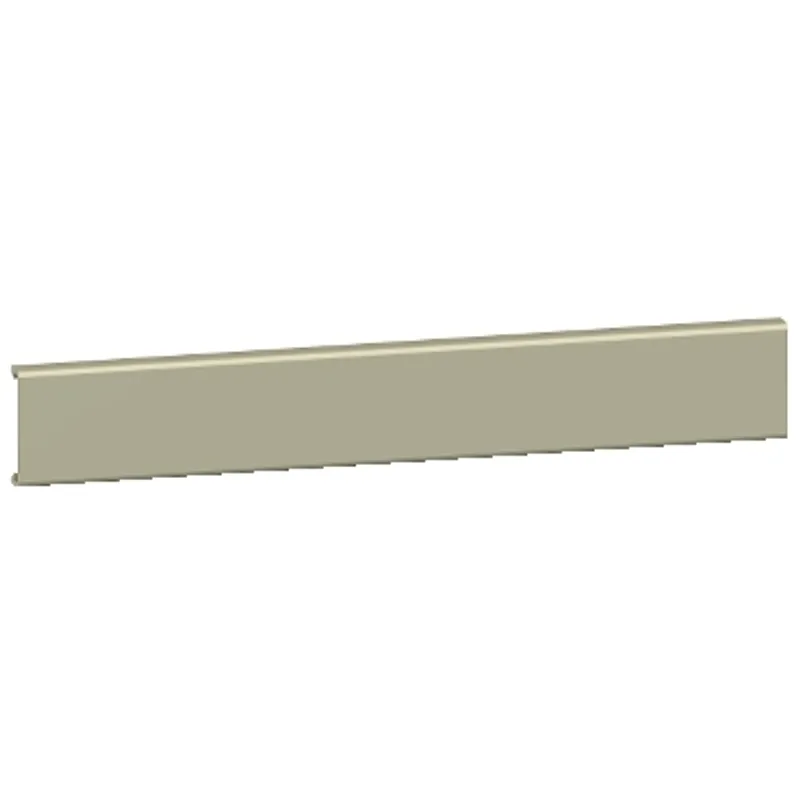

Set of 8 grey PVC covers for cable duct with a width of 75mm. Designed for use with the AK2GD7550 cable duct and compatible with PanelSeT enclosures.
Specifications
Specifications
| Product or component type | Cover |
| Accessory / separate part category | Cabling accessories |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLA, PanelSeT PLS, PanelSeT PLM |
| Mounting support | Cable duct width= 75 mm |
| Quantity per set | Set of 8 |
| Colour | Grey (RAL 7030) |
| Length | 2000 mm |
| Width | 75 mm |
| Material | PVC (polyvinyl chloride) |
| Net weight | 0.38 kg |
| Ambient air temperature for operation | -5…60 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1/1 |
| Standards | VDE 0660, VDE 0506, DIN 43659 |
Packaging
| Package 1 | 1 PCE, 200.000 cm × 7.500 cm × 1.000 cm (L × W × H), 401.000 g |
| Package 2 | 8 CAR, 201.000 cm × 7.500 cm × 4.500 cm (L × W × H), 3.208 kg |
| Package 3 | 960 PAL, 201.000 cm × 120.000 cm × 45.000 cm (L × W × H), 416.960 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AK2CD75: frequently asked questions
When can AK2CD75 be shipped?
AK2CD75 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AK2CD75 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AK2CD75 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AK2CD75, subject to availability and destination.
