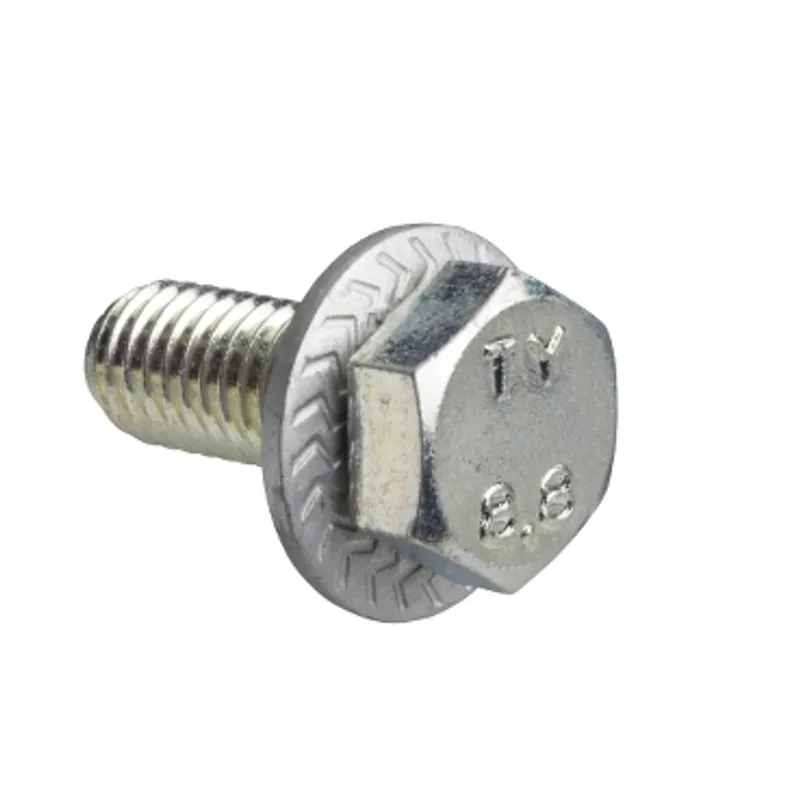

Schneider Electric AF1VC820
FIXING SCREW
- MPN
- AF1VC820
- EAN
- 3389110543667
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric AF1VC820?
Schneider Electric FIXING SCREW, manufacturer part number AF1VC820. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Accessory / separate part category | Mounting accessories |
| Quantity per set | Set of 10 |
| Star-delta starter component | 1/4 turn sliding clip nuts and corresponding bolts |
| Assembly style | For assembly |
| Fixing of mechanism | Screws |
| Head mounting | M8 x 20 |
| ISO thread | M8 |
| Motor power kW | 100 kW, 200 kW, 185 kW, 220 kW, 315 kW, 250 kW, 160 kW, 90 kW, 280 kW, 375 kW |
| Motor starter type | Star-delta starters |
| Mounting support | Notched AM1-EC rail |
| number of devices | 8 |
| Product compatibility | For uprights AM3-EC |
| Net weight | 0.024 kg, 0.023 kg |
| shape of screw head | Hexagonal |
| Threaded length | 20 mm |
| Provided equipment | Washer |
Packaging
| Package 1 | 1 PCE, 2.000 cm × 1.200 cm × 0.800 cm (L × W × H), 14.000 g |
| Package 2 | 10 BB1, 13.000 cm × 5.000 cm × 2.000 cm (L × W × H), 142.000 g |
| Package 3 | 680 CAR, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 10.062 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AF1VC820: frequently asked questions
When can AF1VC820 be shipped?
AF1VC820 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AF1VC820 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AF1VC820 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AF1VC820, subject to availability and destination.
