Schneider Electric AK2CD100

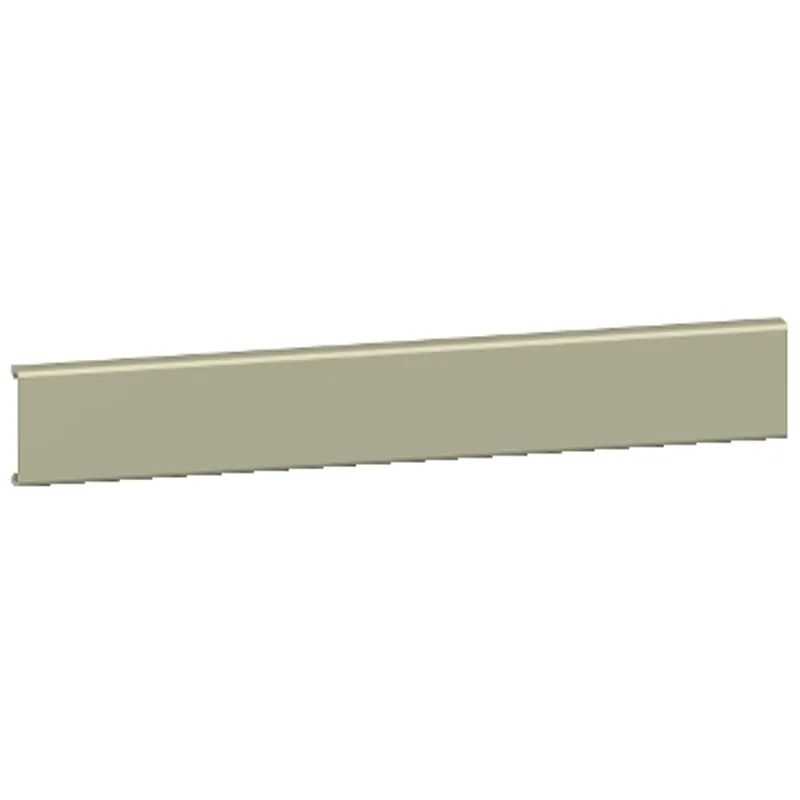

Cover for cable duct - Width=100mm
- MPN
- AK2CD100
- EAN
- 3389110570595
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric AK2CD100?
Set of 8 grey PVC covers for cable duct with a width of 100mm. Designed for use with the AK2GD10075 cable duct and compatible with PanelSeT enclosures.
Specifications
Specifications
| Product or component type | Cover |
| Accessory / separate part category | Cabling accessories |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLA, PanelSeT PLS, PanelSeT PLM |
| Mounting support | Cable duct width= 100 mm |
| Quantity per set | Set of 8 |
| Colour | Grey (RAL 7030) |
| Length | 2000 mm |
| Width | 100 mm |
| Material | PVC (polyvinyl chloride) |
| Net weight | 0.48 kg |
| Ambient air temperature for operation | -5…60 °C |
| Flame retardance | V-0 conforming to UL 94 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1/1 |
| Standards | DIN 43659, VDE 0506, VDE 0660 |
Packaging
| Package 1 | 1 PCE, 200.000 cm × 1.250 cm × 3.500 cm (L × W × H), 471.000 g |
| Package 2 | 8 CAR, 201.000 cm × 10.000 cm × 3.500 cm (L × W × H), 3.768 kg |
| Package 3 | 352 PAL, 120.000 cm × 202.000 cm × 32.000 cm (L × W × H), 182.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
AK2CD100: frequently asked questions
When can AK2CD100 be shipped?
AK2CD100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AK2CD100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AK2CD100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AK2CD100, subject to availability and destination.
