1U Fusion splice tray kit (max. 24-fiber)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for AsiaPacific |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 258 kg |
Shipping & availability
When can ACTFMSPTKIT be shipped?
ACTFMSPTKIT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACTFMSPTKIT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACTFMSPTKIT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACTFMSPTKIT, subject to availability and destination.

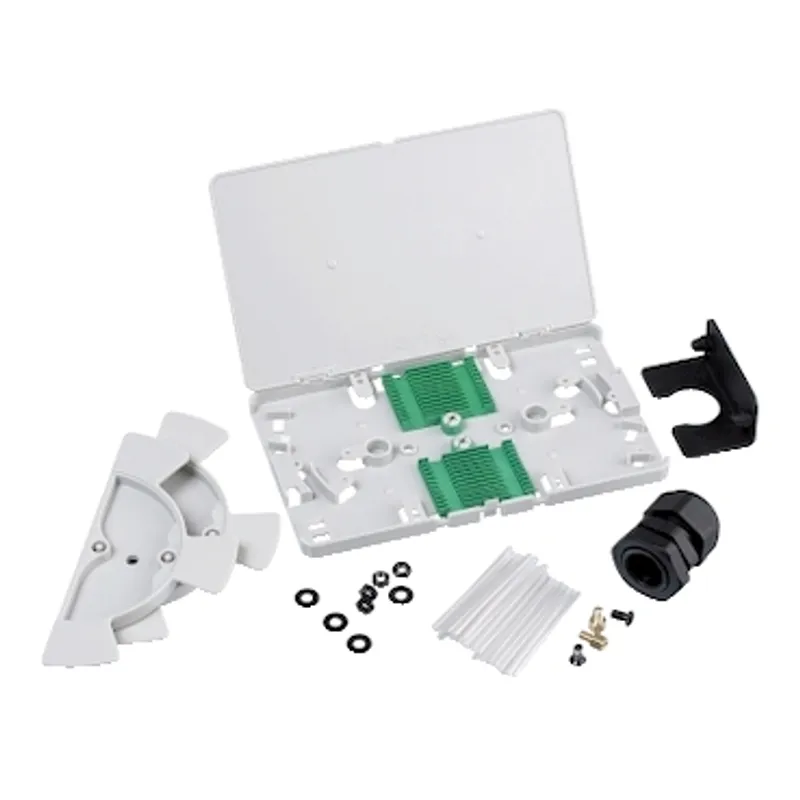

This 19-HD fusion plice tray kit is delivered with one complete splice tray unit and accessories of one tray cover. Two fibre managment half-spools, two fusion splice holders, twenty-four heat shrink tubes, one PG17 cable gland and supporter, and two sets of screw and nuts. Maximum three fusion splice trays can be stacked inside 1U 19-HD fibre panel.
Specifications
Specifications
| range of product | Actassi |
| Product or component type | Optic splice cassette |
| Colour | Cassette: grey |
| Range compatibility | Actassi 19” fibre optic panel |
| Product destination | Empty fibre optic panel |
| Device composition | 1 cover, 1 splice tray, 2 insert, 2 cable disc, 1 cable gland, 1 cable gland holder, 4 screw, 4 nut, 30 heat shrink splice protector tube, 4 ring |
| Number of port | 24 |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Mounting type | By 2 screws with fibre patch panel, By rivet with fibre patch panel with quick-fix function |
| Length | 155.2 mm |
| Height | 10 mm |
| Width | 92.4 mm |
| Targeted region | Asia Pacific., Europe |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 18.8 cm |
| Package 1 Length | 19.2 cm |
| Package 1 Weight | 258.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 39.7 cm |
| Package 2 Length | 59.8 cm |
| Package 2 Weight | 9.988 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 432 |
| Package 3 Height | 102.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 132.356 kg |
| Warranty (in months) | 18 |
