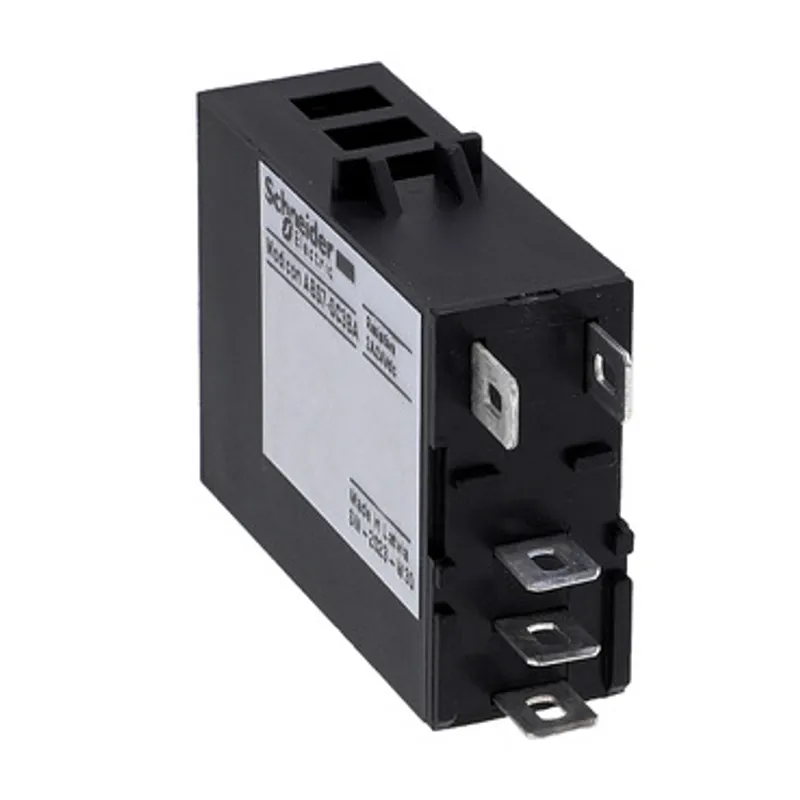

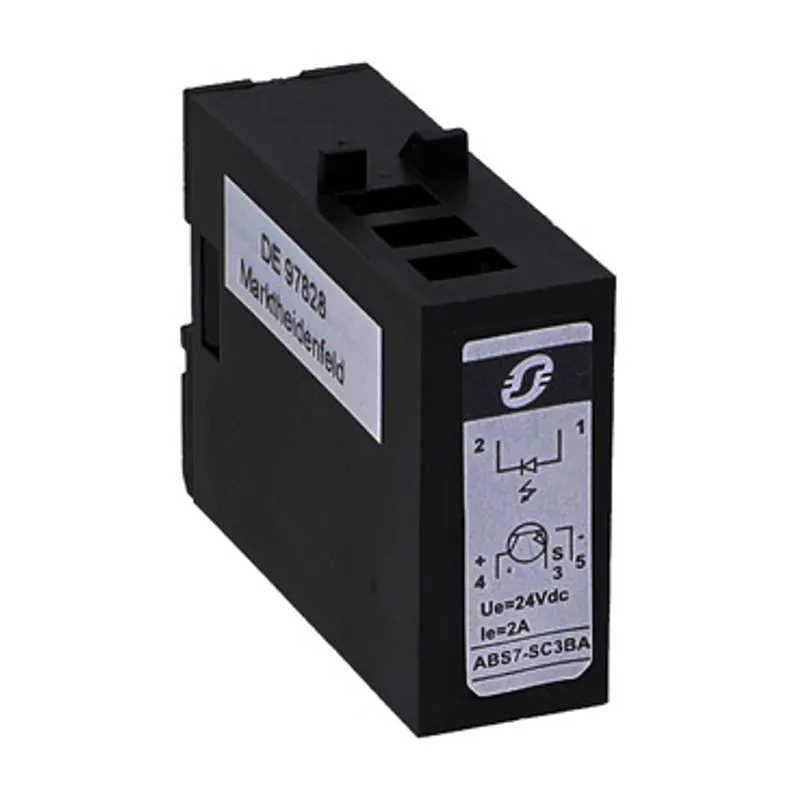

plug-in solid state relay - 12.5 mm - output - 24 V DC - 2 A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon ABE7 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.02 kg |
Shipping & availability
When can ABS7SC3BA be shipped?
ABS7SC3BA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABS7SC3BA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABS7SC3BA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABS7SC3BA, subject to availability and destination.
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in solid state relay is compatible with Modicon ABE7 connection sub-bases. It is a solid state output relay with a discrete input voltage of 24V DC and a discrete output current of 10A. The response time is ≤0.1ms from state 1 to 0 and ≤0.2ms from state 0 to 1. The width pitch is 12mm. It weighs 0.016kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16T318, ABE7P16T330, ABE7R16T330, ABE7P16T334, ABE7P16T318E, ABE7P16T330E and ABE7R16T332 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Advantys Telefast ABE7 |
| Product or component type | Plug-in solid state relay |
| Relay type | Output relay |
| minimum ordered quantity | Set of 4 |
| Response time | <= 0.1 ms from state 1 to 0, <= 0.2 ms from state 0 to 1 |
| Width pitch dimension | 12 mm |
| Product compatibility | ABE7P16T318, ABE7P16T330, ABE7R16T330, ABE7P16T334, ABE7P16T318E, ABE7P16T330E, ABE7R16T332 |
| Discrete input voltage | 24 V DC |
| Discrete output voltage | 24 V DC self-protected output(s) |
| Discrete output current | 2000 mA |
| Current state 0 guaranteed | 0.4 mA DC |
| Current state 1 guaranteed | 2.9 mA DC |
| Voltage state 0 guaranteed | 3.8 V DC |
| Voltage state 1 guaranteed | 18.6 V DC |
| Net weight | 0.016 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5 cm |
| Package 1 Width | 5.2 cm |
| Package 1 Length | 6.5 cm |
| Package 1 Weight | 13 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 5 cm |
| Package 2 Width | 5.2 cm |
| Package 2 Length | 6.5 cm |
| Package 2 Weight | 52 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 128 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 2.063 kg |
| Warranty (in months) | 18 |
