Schneider Electric 170ENT11002

Modicon Momentum - Ethernet communication adaptor - 10 Mbit/s

MPN
170ENT11002
EAN
3595862065054
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

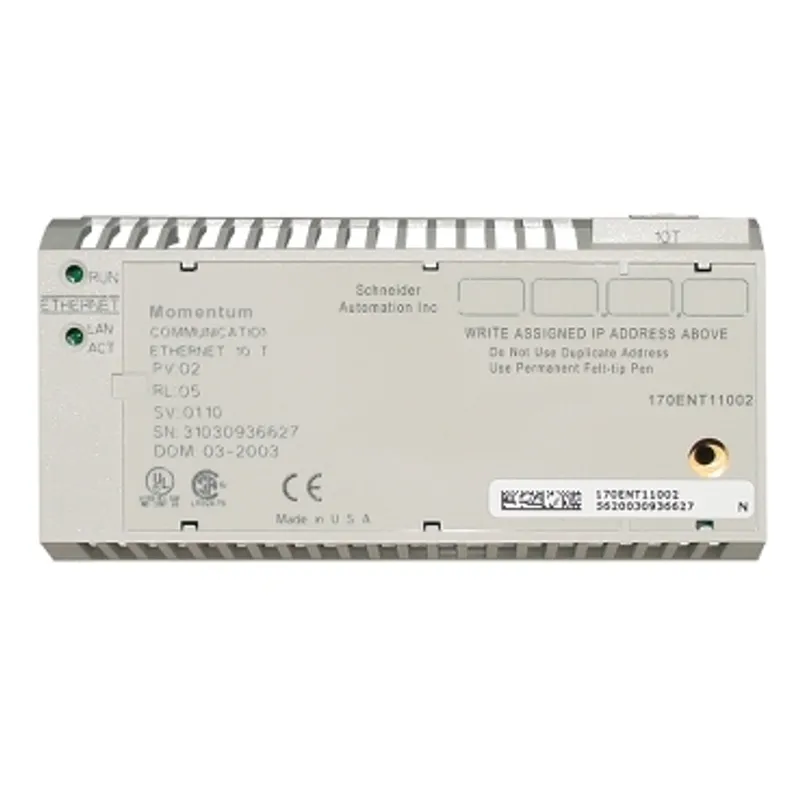

What is the Schneider Electric 170ENT11002?

"This Ethernet communication adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture." "This adaptor provides a direct connection to Ethernet based networks." "It can be plugged to any Momentum I/O module base." "The adaptor provides the processor with additional networking capabilities, a time-of-day clock, and a battery back-up." "This adaptor replaces existing 170ENT11000 adaptor, including an enhanced grounding system and a relocated communication connector." "This adaptor is configured through the Modbus TCP/IP protocol." "It weighs 0.07kg." "It allows the I/O module to communicate on the Ethernet network." "This module meets Interbus standards for electrical noise immunity." "The adaptor is locked in place by clips." "Modicon Momentum is a flexible, modular family of fundamental components." "Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications."

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeEthernet TCP/IP communication adaptor
Communication port protocolEthernet TCP/IP
Method of accessPeer to peer, Master/slave
Transmission rate10 Mbit/s
Transmission support mediumShielded twisted pairs cable
Module configurationBOOTP server to assign IP parameters
TopologyMultidrop, star network
Port Ethernet10BASE-T
Number of devices per segment0…32
Maximum cable distance between devices1000 m without repeater
AddressingUnique IEEE global address, IP address user assigned
Fail stateFail safe
Control parameterCRC-32
SupplyFrom I/O base
MarkingCE
Local signalling1 LED (green) for Ethernet network state (LAN), 1 LED (green) for module active (RUN)
Electrical connection1 connector RJ45 for 10BASE-TX
Net weight0.07 kg
Product certificationsUL, FM Class 1 Division 2, CSA
StandardsCSA, FM Class 1 Division 2
IP degree of protectionIP20
Protective treatmentTC
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.000 cm × 17.800 cm × 5.800 cm (L × W × H), 219.000 g
Package 28 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.200 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

170ENT11002: frequently asked questions

When can 170ENT11002 be shipped?

170ENT11002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170ENT11002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170ENT11002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ENT11002, subject to availability and destination.
