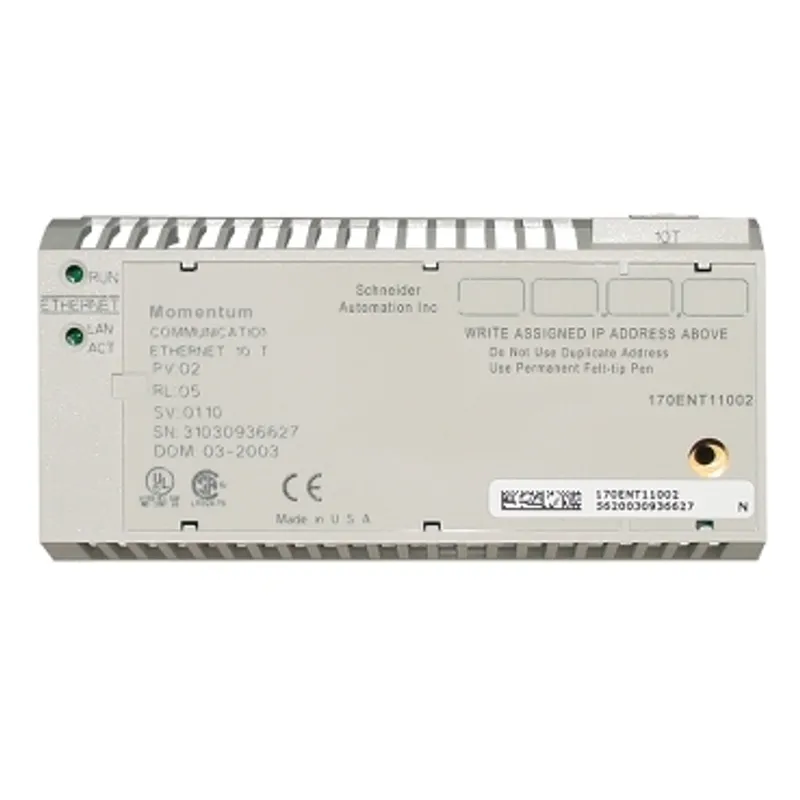

Schneider Electric 170ENT11001

Modicon Momentum - Ethernet communication adaptor - 10/100 Mbit/s

MPN
170ENT11001
EAN
3595862034302
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 170ENT11001?

This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The ethernet TCP/IP communication adaptor supports multidrop and star network topology. It offers shielded twisted pair cable transmission support medium and 10/100Mbps data transmission rate. The adaptor is accessible through the peer to peer and master/slave method. It is furnished with 1 RJ45 connector for 100BASE-TX. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeEthernet TCP/IP communication adaptor
Communication port protocolEthernet TCP/IP
Method of accessPeer to peer, Master/slave
Transmission rate10/100 Mbit/s
Transmission support mediumShielded twisted pairs cable
Module configurationBOOTP server to assign IP parameters
TopologyMultidrop, star network
Port Ethernet100BASE-TX
Number of devices per segment0…32
Maximum cable distance between devices1000 m without repeater
AddressingUnique IEEE global address, IP address user assigned
Fail stateFail safe
Control parameterCRC-32
SupplyFrom I/O base
MarkingCE
Local signalling1 LED (green) for Ethernet network 10 Mbits/s (10T), 1 LED (green) for Ethernet network state (ST), 1 LED (green) for module active (RUN), 1 LED (yellow) for Ethernet network 10 Mbits/s (100T)
Electrical connection1 connector RJ45 for 100BASE-TX
Net weight0.07 kg
Product certificationsCSA, UL
StandardsCSA
IP degree of protectionIP20
Protective treatmentTC
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.100 cm × 18.300 cm × 6.000 cm (L × W × H), 233.000 g
Package 28 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.487 kg
