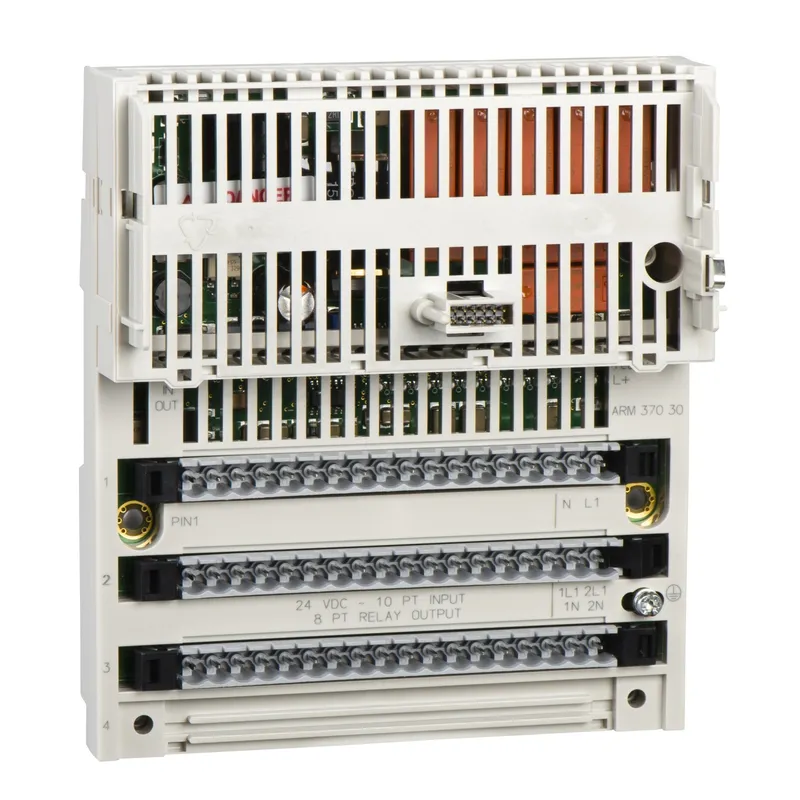

Schneider Electric 170ARM37030 – discrete I/O module Modicon Momentum - 10I / 8O relay

Name: Schneider Electric 170ARM37030 – discrete I/O module Modicon Momentum - 10I / 8O relay
Brand: Schneider Electric
SKU: 170ARM37030

MPN: 170ARM37030 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original 170ARM37030 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Momentum
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	FR
UPC / EAN	3595860033710
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the 170ARM37030 now that it is discontinued?

Yes. Schneider Electric has discontinued the 170ARM37030, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 170ARM37030 be shipped?

170ARM37030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170ARM37030 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170ARM37030 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ARM37030, subject to availability and destination.

Schneider Electric 170ARM37030 — discrete I/O module Modicon Momentum - 10I / 8O relay. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Momentum automation platform
Product or component type	Discrete relay I/O base AC
Group of channels	2 groups of 4 outputs; 1 group of 10 inputs
Discrete input number	10
Discrete input voltage	24...230 V AC (voltage limits: - 3...30 V)
Discrete input logic	Positive
Discrete output number	8
Discrete output voltage	24...230 V AC for relay normally open

Complementary

Output overload protection	External by varistor in parallel with each contact
Output short-circuit protection	External by varistor in parallel with each contact
Mechanical durability	30000000 cycles
Electrical durability	100000 cycles inductive
Response time	10 ms 60 Hz from state 0 to state 1 on output; 10 ms 60 Hz from state 1 to state 0 on output; 2.2 ms from state 0 to state 1 on input; 3.3 ms from state 1 to state 0 on input
Protection type	Without protection
Associated fuse rating	4 A fast blow input voltage
Discrete input compatibility	10 conforming to IEC 1131-2 Type 1 at 24...230 V AC
Voltage state 1 guaranteed	11...30 V
Voltage state 0 guaranteed	-3...5 V
Current state 1 guaranteed	>= 2.5 mA
Current state 0 guaranteed	<= 1.2 mA
Discrete output number	8 relay normally open at 24...230 V AC
Discrete output current	<= 0.15 mA; <= 0.5 mA; <= 1 mA; <= 2 mA; >= 0.005 A
Mechanical durability	30000000 cycles
Electrical durability	100000 cycles inductive
Typical current consumption	5 mA at 120 V AC
Power dissipation in W	5.5 W
Isolation between channels and bus	500 V AC
Terminals description PLC n°1	(8)IN_DIS#8; (4)IN_DIS#4; TB; (9)IN_DIS#9; (3)IN_DIS#3; (7)IN_DIS#7; (L1)PW; (6)IN_DIS#6; (1)IN_DIS#1; (10)IN_DIS#10; (5)IN_DIS#5; (N)PW; (2)IN_DIS#2
Terminals description PLC n°2	(1)OUT_DIS#1; (1L+)PW; (8)OUT_DIS#8; (7)OUT_DIS#7; (5)OUT_DIS#5; (6)OUT_DIS#6; (3)OUT_DIS#3; (4)OUT_DIS#4; (2)OUT_DIS#2; (2L1)PW; TB_1
Height	141.5 mm
Width	125 mm
Depth	47.5 mm
Net weight	0.26 kg

Environment

IP degree of protection	IP20
Protective treatment	TC
Marking	CE
Product certifications	UL; FM Class 1 Division 2; CSA
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
