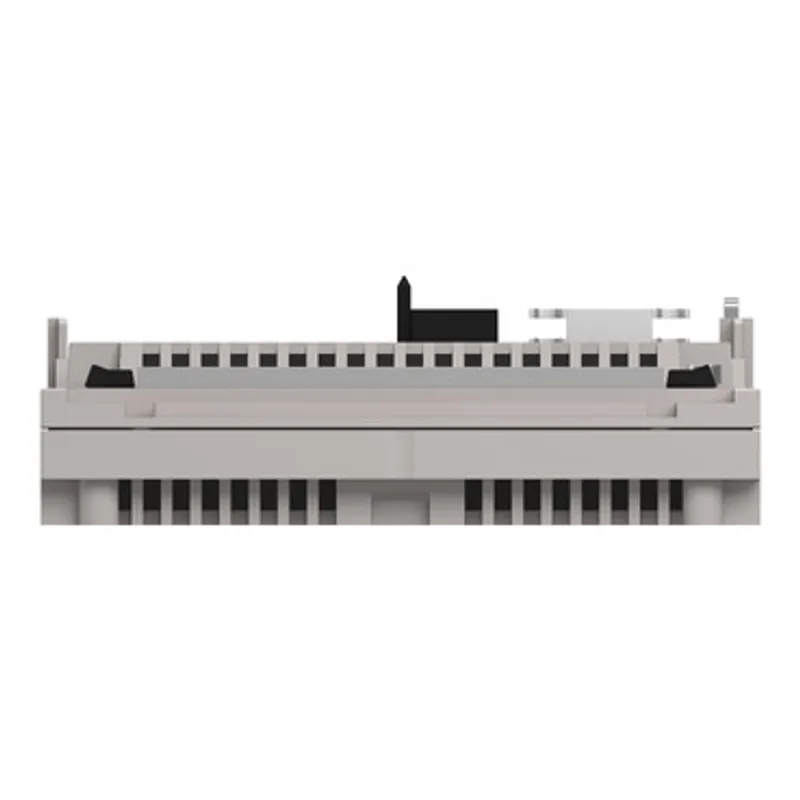

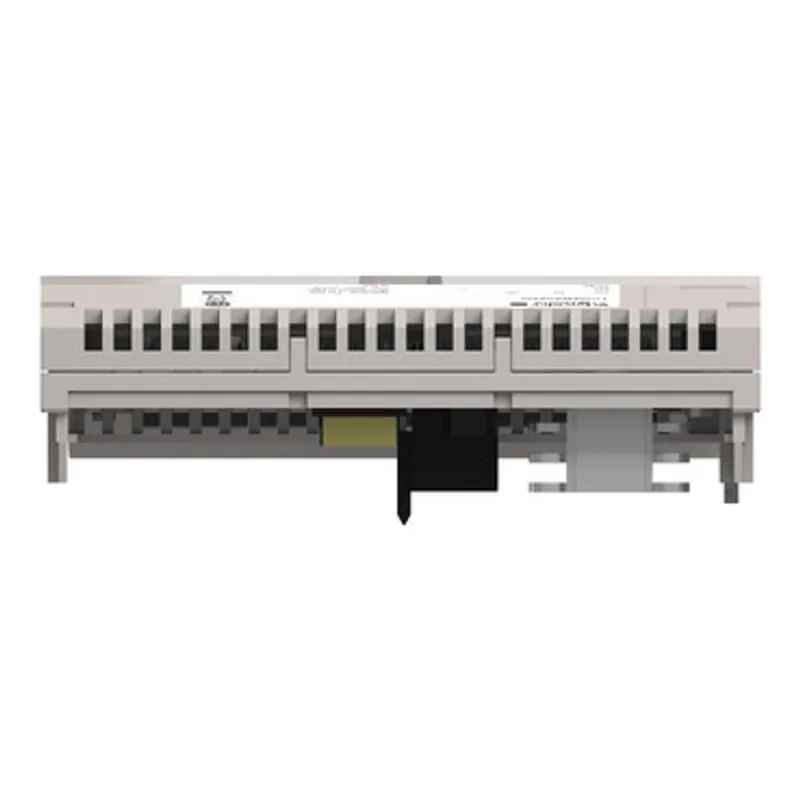

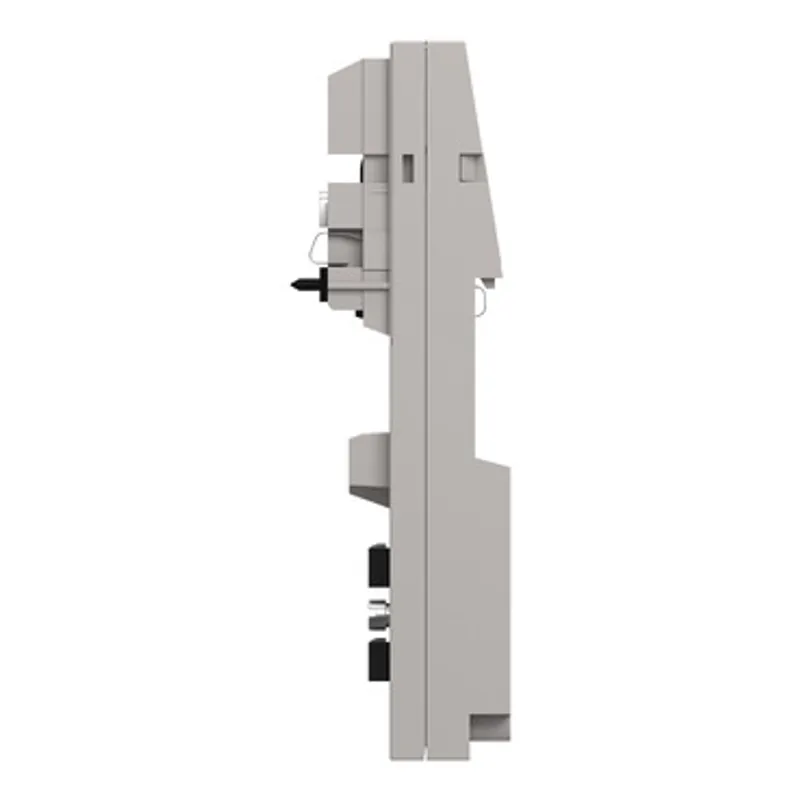

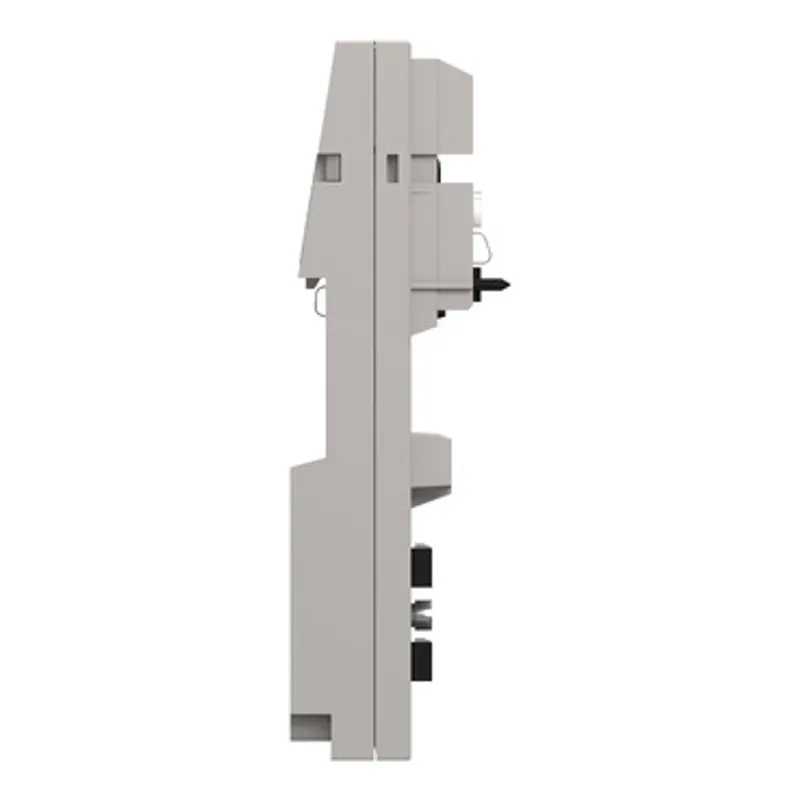

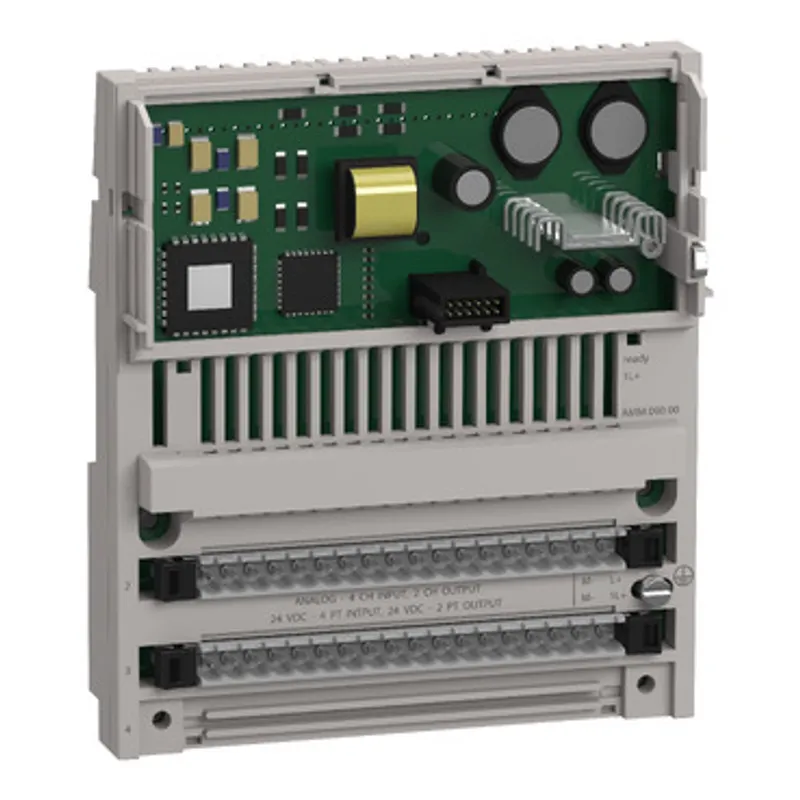

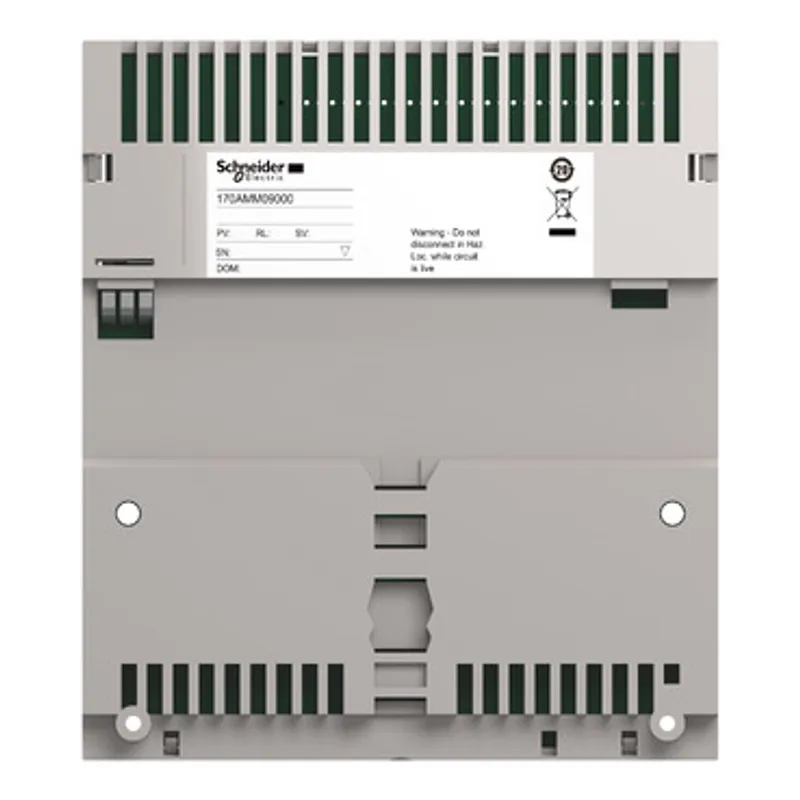

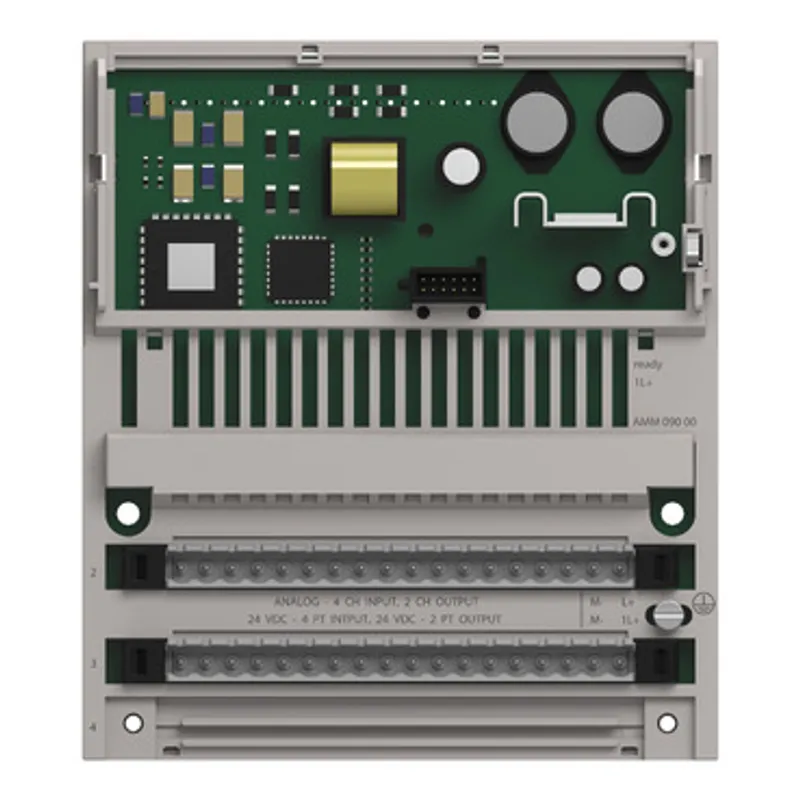

What is the Schneider Electric 170ANR12090?

This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analog, discrete I/O base module offers 8 discrete outputs, 8 discrete inputs, 6 analog inputs and 4 analog outputs. It is a module with analog input/output voltage ranges from 0V to 10V and discrete input voltage of 24V DC and discrete output voltage from 10V to 30V. There is an isolation between analog I/O and operating voltage, operating voltage and I/O from the ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeAnalogue,discrete I/O base
Group of channels1 group of 8 discrete outputs, 2 groups of 4 discrete inputs, 1 group of 6 analog inputs, 1 group of 4 analog outputs
Analogue input range0...10 V
Analogue input typeSingle ended
Analogue input resolution14 bits 0...10 V
Discrete input voltage24 V DC
Analogue output range0...10 V 14 bits
Discrete output voltage10...30 V
Output short-circuit protectionWith discrete output
Output overload protectionWith discrete output
Discrete input number8 conforming to IEC 1131-2 Type 2
[Us] rated supply voltage24 V (19.2…30 V)DC
Maximum analogue input voltage15 V
Input voltage limits3...32 V
Discrete input logicPositive
Voltage state 0 guaranteed<= 5 V for discrete input
Voltage state 1 guaranteed>= 11 V for discrete input
Current state 0 guaranteed<= 2 mA (discrete input)
Current state 1 guaranteed>= 6 mA (discrete input)
Input overvoltage protection45 V 10 s discrete input
Input resistance1 MOhm analogue input circuit
Output load>= 2 kOhm 0...10 V analogue output
Conversion time0.75 ms analogue input circuit, 1.2 ms analogue output
Conversion error+/- 0.4 % 0...10 V 25 °C analogue output, 0,002 0...10 V 25 °C analogue input circuit
Fail stateFor analogue output: hold, For analogue output: reset to zero
Discrete output typeTransistor
Discrete output logicPositive
Discrete output current2 A per group, 2 A per module, 0.25 A per point
Maximum leakage current0.4 mA DC 30 V discrete output
Maximum voltage drop<0.4 V 0.25 A at state on discrete output
Surge current2.5 A 1 ms discrete output
Response time1.05 ms from state 1 to state 0 for discrete output, 1.2 ms from state 0 to state 1 for discrete input, 1.2 ms from state 0 to state 1 for discrete output, 1.2 ms from state 1 to state 0 for discrete input
Isolation voltage500 V (duration = 1 min) between analogue I/O and operating voltage, 500 V (duration = 1 min) between operating voltage and I/O from ground
Maximum power dissipation in W6 W
MarkingCE
Local signalling4 LEDs for channel status
Electrical connection2 connectors for removable terminal blocks
Current consumption400 mA at 24 V DC
Depth47.5 mm
Height125 mm
Width141.5 mm
Net weight0.24 kg
Product certificationsUL, CSA
Protective treatmentTC
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 391.000 g
Package 210 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.281 kg
