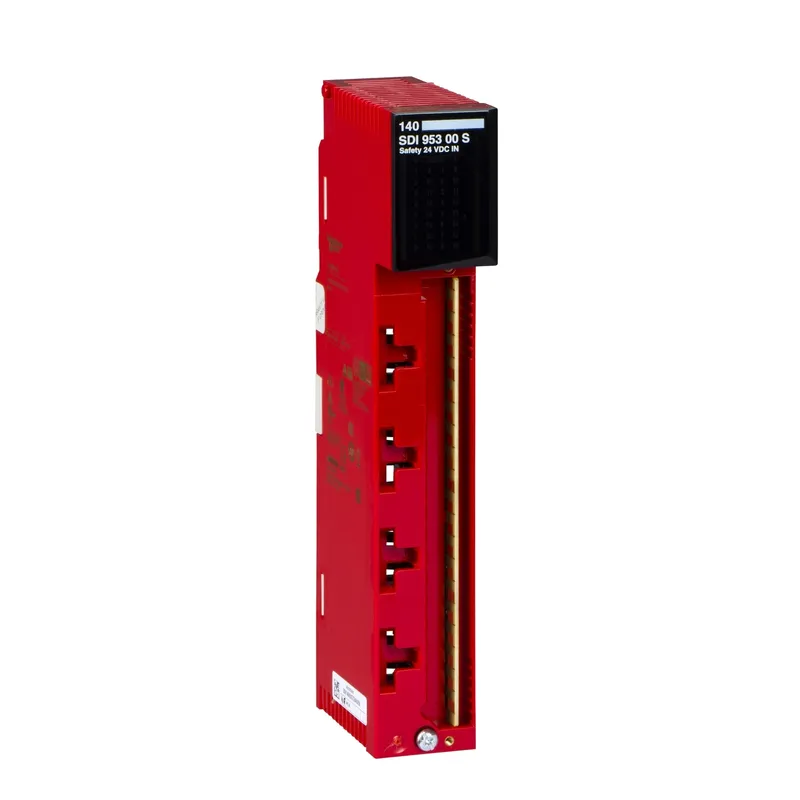

Schneider Electric 140SDI95300S

Safety dc discrete input module - 16 inputs - 24 V DC

MPN
140SDI95300S
EAN
3595863953558
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 140SDI95300S (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 140SDI95300S?

Schneider Electric 140SDI95300S — safety dc discrete input module - 16 inputs - 24 V DC (Modicon Quantum). Discontinued by Schneider Electric; the manufacturer's successor is BMXSDI1602. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productModicon Quantum automation platform
Product or component typeSafety dc discrete input module

Complementary

Discrete input number16
Group of channels1
Logic inputPositive (sink)
Discrete input voltage24 V DC
Voltage state 1 guaranteed11...30 V DC
Voltage state 0 guaranteed-3...5 V DC
Current state 1 guaranteed>= 3 mA
Current state 0 guaranteed<= 1.5 mA
Sensor power supply19.2…30 V
Addressing requirement7 input words
Input impedance3675 Ohm
Absolute maximum input30 V
Response time<= 25 ms from state 0 to state 1; <= 25 ms from state 1 to state 0
Protection typeBy internal rectifier
Associated fuse rating1 A, fast blow
Power dissipation2.75 W + (0.25 x number of points on)
Isolation between group and bus1500 Vrms for 1 minute
ChecksDiagnostic of internal channel fault; System failure; Broken wire detection
Local signalling1 LED (green) for bus communication is present (Active); 1 LED (red) for external fault detected (F); 16 LEDs (green) for input status; 16 LEDs (red) for system failure, diagnostic of internal channel fault
MarkingCE
Bus current requirement550 mA

Environment

Product certificationsCSA; UL; TÜV Rheinland (SIL2); CSA HazLoc

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

140SDI95300S: frequently asked questions

Can I still buy the 140SDI95300S now that it is discontinued?

Yes. Schneider Electric has discontinued the 140SDI95300S, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXSDI1602 as its successor — we can quote both.

When can 140SDI95300S be shipped?

140SDI95300S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 140SDI95300S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 140SDI95300S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 140SDI95300S, subject to availability and destination.
