Schneider Electric 1003815

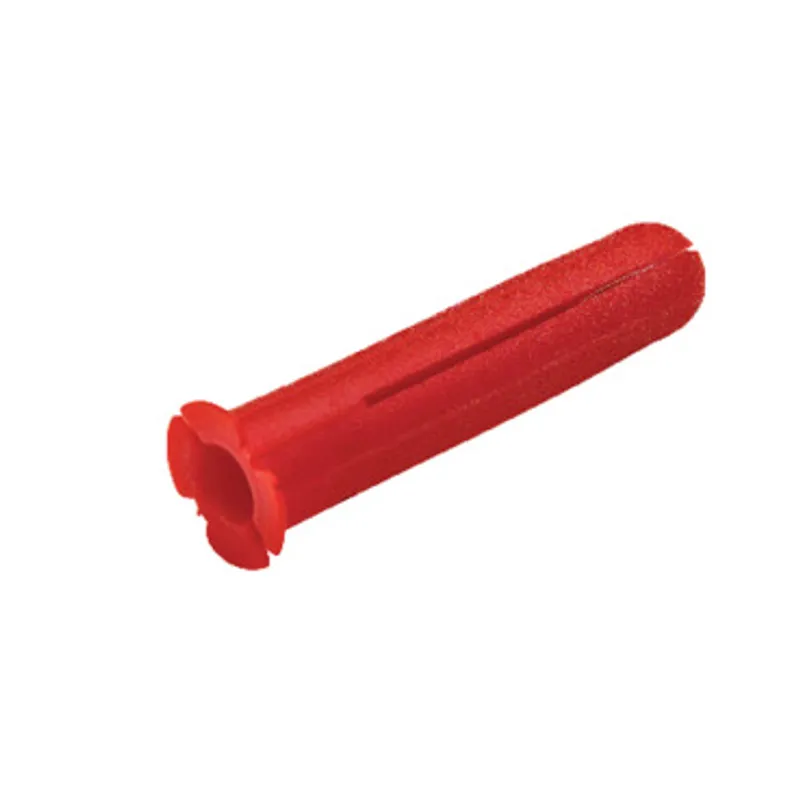

TP 6x30 single bulk Wall plug

MPN: 1003815
Category: Cabling and fixing for demanding professionals

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 1003815?

Thorsman TP 1003815 (set of 20000 pieces) is a wall plug for plasterboard, low density concrete, stone, bricks and blocks (most building materials) With a length of 30 mm, the plug is especially suitable for light-weight installations where shear loads are dominating For perfect wall fixing, use a wood screw with a diameter of 3.5 mm to 5 mm Material: Polyethylene (HD) Drill diameter: 6 mm in ALC concrete, 6 mm in brick, 6 mm in concrete For mounting where pull-out loads dominate, or by high temperatures, metal fixings are recommended TP has a smooth surface to get high friction against the wall of the hole Four slits spread the radial expansion in all dimensions The wall plug has a collar and wings to prevent the plug from rotating and disappearing into the hole TP has a unique Colour CodeTM to identify each plug size

Specifications

Range of product	Thorsman
Product or component type	Wall plug
Device short name	TP
Device application	Lightweight installation
Drilling diameter	6 mm concrete, 6 mm brick, 6 mm ALC concrete
Minimum drilling depth	35 mm
Screw diameter	3.5…5 mm
Material	PEHD (polyethylene high density)
Practical load capacity	Shear: 60 kg for concrete C25 4.5), Pull-out load: 40 kg for concrete C25 6), Shear: 50 kg for solid brick 4.5), Pull-out load: 30 kg for solid brick 6), Shear: 20 kg for low density concrete 500 and expanded clay 4.5), Pull-out load: 8 kg for low density concrete 500 and expanded clay 6)
Colour tint	Red
Ambient air temperature for operation	-50…80 °C
Diameter	6 mm
Length	30 mm
Quantity per set	Set of 20000
Sale per indivisible quantity	1
Type of packing	Bag
Net weight	0.0007 kg

Packaging

Package 1	1 PCE, 2.900 cm × 0.700 cm × 0.500 cm (L × W × H), 0.700 g
Package 2	20000 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 14.522 kg
