Schneider Electric 1001809

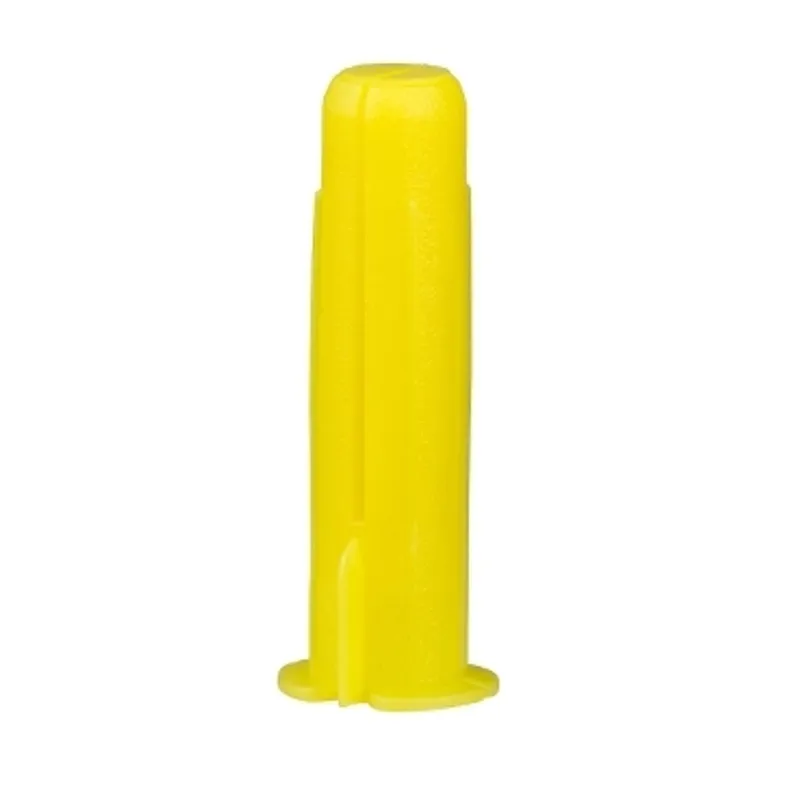

Thorsman - TP 1 - wall plug - without screw - set of 50000

MPN: 1001809
Category: Cabling and fixing for demanding professionals

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 1001809?

Thorsman TP 1001809 (set of 50000 pieces) is a wall plug for plasterboard, low density concrete, stone, bricks and blocks (most building materials) With a length of 22 mm, the plug is especially suitable for light-weight installations where shear loads are dominating For perfect wall fixing, use a wood screw with a diameter of 3.5 mm to 5 mm Material: Polyethylene (HD) Drill diameter: 5 mm in ALC concrete, 5.5 mm in brick, 5.5 mm in concrete For mounting where pull-out loads dominate, or by high temperatures, metal fixings are recommended TP has a smooth surface to get high friction against the wall of the hole Four slits spread the radial expansion in all dimensions The wall plug has a collar and wings to prevent the plug from rotating and disappearing into the hole TP has a unique Colour CodeTM to identify each plug size

Specifications

Range of product	Thorsman
Product or component type	Wall plug
Device short name	TP
Device application	Lightweight installation
Drilling diameter	5.5 mm concrete, 5.5 mm brick, 5 mm ALC concrete
Minimum drilling depth	25 mm
Screw diameter	3.5…5 mm
Material	PEHD (polyethylene high density)
Practical load capacity	Shear: 50 kg for concrete C25 4.5), Pull-out load: 25 kg for concrete C25 6), Shear: 40 kg for solid brick 4.5), Pull-out load: 20 kg for solid brick 6), Shear: 10 kg for low density concrete 500 and expanded clay 4.5), Pull-out load: 4 kg for low density concrete 500 and expanded clay 6)
Colour tint	Yellow
Ambient air temperature for operation	-50…80 °C
Diameter	5.5 mm
Length	22 mm
Quantity per set	Set of 50000
Sale per indivisible quantity	1
Type of packing	Bag
Net weight	0.00034 kg

Packaging

Package 1

1 PCE, 0.500 cm × 2.200 cm × 0.700 cm (L × W × H), 1.000 g
