Schneider Electric 1006808

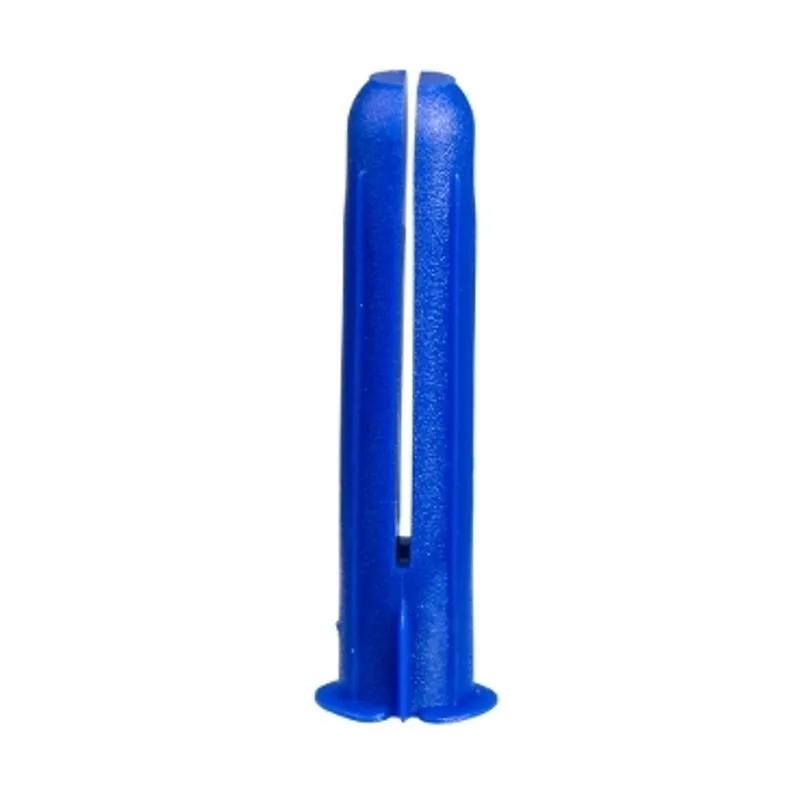

Thorsman - TP 3 - wall plug - without screw - set of 10000

MPN: 1006808
Category: Cabling and fixing for demanding professionals

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 1006808?

Thorsman TP 1006808 (set of 10000 pieces) is a wall plug for plasterboard, low density concrete, stone, bricks and blocks (most building materials) With a length of 45 mm, the plug is especially suitable for light-weight installations where shear loads are dominating For perfect wall fixing, use a wood screw with a diameter of 5 mm to 7 mm Material: Polyethylene (HD) Drill diameter: 10 mm in concrete, 9 mm in ALC concrete For mounting where pull-out loads dominate, or by high temperatures, metal fixings are recommended TP has a smooth surface to get high friction against the wall of the hole Four slits spread the radial expansion in all dimensions The wall plug has a collar and wings to prevent the plug from rotating and disappearing into the hole TP has a unique Colour CodeTM to identify each plug size

Specifications

Range of product	Thorsman
Product or component type	Wall plug
Device short name	TP
Device application	Lightweight installation
Drilling diameter	10 mm concrete, 9 mm ALC concrete
Minimum drilling depth	50 mm
Screw diameter	5…7 mm
Material	PEHD (polyethylene high density)
Practical load capacity	Shear: 30 kg for solid brick 4.5), Pull-out load: 15 kg for solid brick 6), Shear: 140 kg for concrete C25 4.5), Pull-out load: 100 kg for concrete C25 6)
Colour tint	Blue
Ambient air temperature for operation	-50…80 °C
Diameter	10 mm
Length	45 mm
Quantity per set	Set of 10000
Sale per indivisible quantity	1
Type of packing	Bag
Net weight	0.0022 kg

Packaging

Package 1	1 PCE, 4.500 cm × 1.700 cm × 1.700 cm (L × W × H), 2.100 g
Package 2	80000 P12, 120.000 cm × 100.000 cm × 80.000 cm (L × W × H), 168.000 kg
