Pilz 837340

S3UM 230VAC UM 42VAC

MPN
837340
Category
PMDsrange
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 837340 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 837340?

Pilz S3UM 230VAC UM 42VAC, Pilz order number 837340.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)837340
ApprovalCE, CCC, cULus Listed
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)230 V
Type of supply voltage U1AC
Power consumption AC2 VA
Max. device circuit breakerMax. conductor cross section

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Relay contact materialAgCdO
Addit. contact details relay+ 3.0 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-15 … 55 °C
Condensation permitted?Not permitted
EMC to standard ...EN 50081-2, EN 50081-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension122 mm
Net weight158 g
Gross weight187 g

837340: frequently asked questions

Can I still buy the 837340 now that it is discontinued?

Yes. Pilz has discontinued the 837340, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 837340 be shipped?

837340 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 837340 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 837340 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 837340, subject to availability and destination.

More Pilz parts

Pilz 828035 – S1IM 24VDC IM 0.01-15 A UP
Pilz
828035

S1IM 24VDC IM 0.01-15 A UP

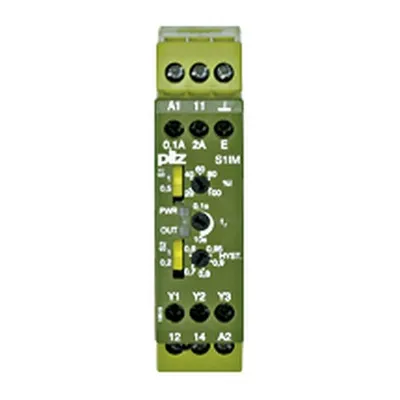

Pilz 828040 – S1IM 110-127VAC IM 0.01-15 A
