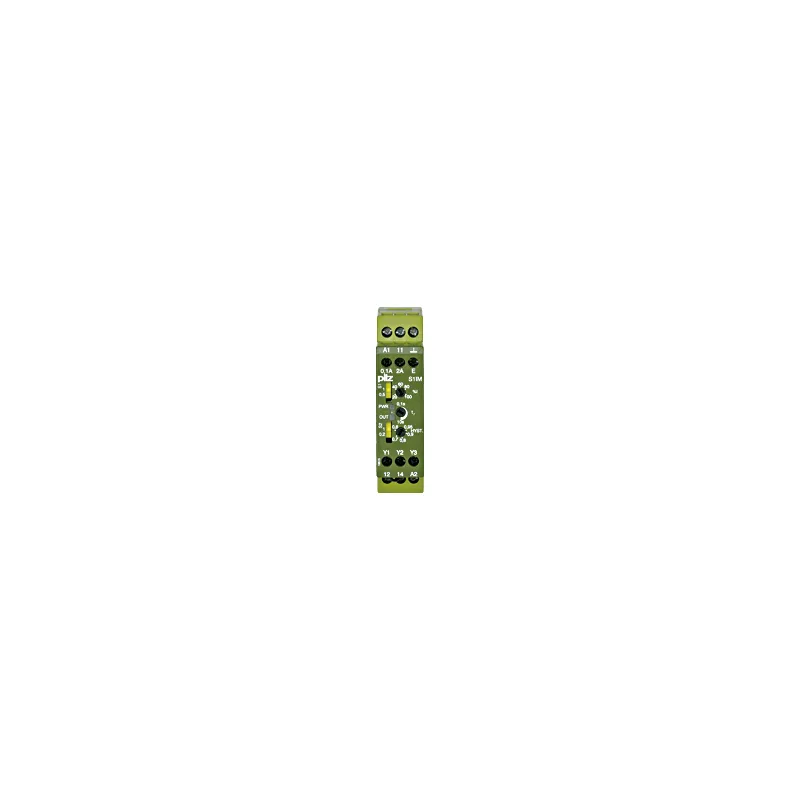

Pilz 828050

S1IM 230-240VAC IM 0.01-15 A

MPN
828050
EAN
4046548007541
Category
PMDsrange
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 828050?

Voltage monitoring relay, to monitor max. current values, 12 measuring ranges 0.01 - 15 A selectable, 0, 40 - 400 Hz, width = 22.5mm, UB = 230 - 240 V AC.

Specifications

General data

Product ID (Pilz order number)828050
ApprovalCE, CCC, UKCA, cULus Listed
LifecycleActive (current Pilz product)

Electrical data

Supply voltage (V)230 … 240 V
Type of supply voltage U1AC
Power consumption AC2 VA
Max. device circuit breakerMax. conductor cross section

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Safety contacts: AC at UL240 VAC Res. NO Side Only
Safety contacts: pilot dutyB300, R300
Relay contact materialAgCdO
Addit. contact details relay+ 3.0 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-15 … 55 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight160 g
Gross weight170 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
REACh complianceContains no SVHC substances
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371802
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC001440
UNSPSC 2539122331
GTIN4046548007541
Volume0.294 dm3
Harmonized System Code85364900
Quantity per packaging unit1

828050: frequently asked questions

When can 828050 be shipped?

828050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 828050 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 828050 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 828050, subject to availability and destination.
