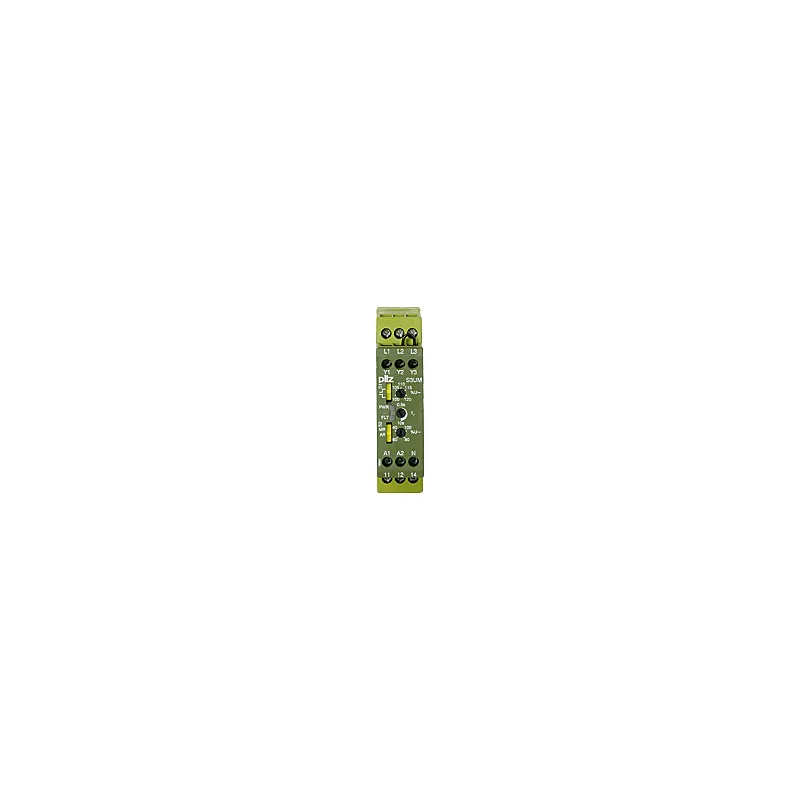

Pilz 837271

S3UM 24VDC UM 400/440VAC H40

MPN
837271
EAN
4046548048858
Category
PMDsrange
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 837271?

Voltage monitoring relay, to monitor overvoltage and undervoltage values, and the phase sequence in 3-phase supplies, 40 -400 Hz, measuring voltage 400/440 V AC, width 22.5 mm, UB = 24 V DC,hysteresis 2%.

Specifications

General data

Product ID (Pilz order number)837271
ApprovalCCC, CE, UKCA
LifecycleActive (current Pilz product)

Electrical data

Supply voltage (V)24 V
Type of supply voltage U1DC
Power consumption DC1.5 W
Max. device circuit breakerMax. conductor cross section

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Relay contact materialAgCdO
Addit. contact details relay+ 3.0 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-15 … 55 °C
Condensation permitted?Not permitted
EMC to standard ...EN 50081-2, EN 50081-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toVDE 0110-1
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension122 mm
Net weight175 g
Gross weight185 g

Environment

RoHS conformityyes
REACh complianceContains no SVHC substances
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27371801
ETIM VersionETIM-9.0
ETIM Reference GroupEG000019
ETIM Reference FeatureEC001438
UNSPSC 2539122205
GTIN4046548048858
Volume0.294 dm3
Harmonized System Code85364900
Quantity per packaging unit1

837271: frequently asked questions

When can 837271 be shipped?

837271 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 837271 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 837271 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 837271, subject to availability and destination.
