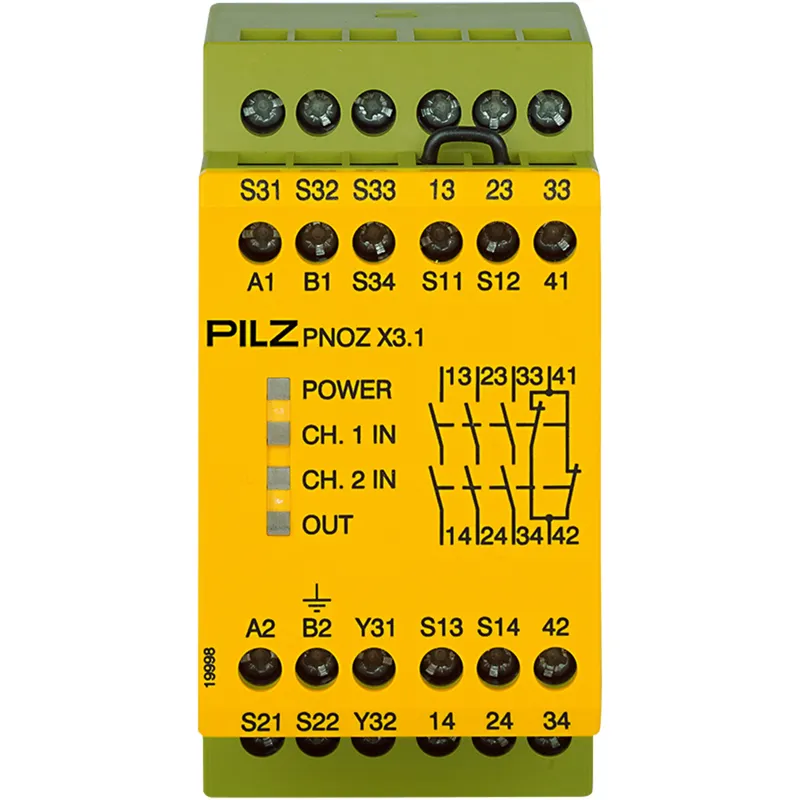

PNOZ X3.1 240VAC 24VDC 3n/o 1n/c 1so

MPN: 774322
EAN: 4046548011593
Category: Monitoring of E-STOP, safety gates, light barriers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 774322?

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 1 N/C,1 SC, automatic/monitored start, UB = 240 V AC/24 V DC, width: 45 mm, screw terminals integrated, monitoring of E-STOP, feedback loop, safety gates.

Specifications

General data

Product ID (Pilz order number)	774322
Approval	CE, CCC, UKCA, cULus Listed, EAC (Eurasian), TÜV
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	240 V
Type of supply voltage U1	AC
Power consumption AC	5 VA
Supply voltage U2	24 V
Type of supply voltage U2	DC

Inputs

Number of inputs

Semiconductor outputs

Number of semicond. outputs	1
Tolerance ext. volt. DC S/C	-20 %/+20 %
Utilisation cat. to EN 60947-1	DC-12

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	8 A
Voltage DC1 safety cont.	24 V
Max. current DC1 safety cont.	8 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	5 A
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G. P.
Safety contacts: pilot duty	B300, R300
Relay contact material	AgSnO2
Addit. contact details relay	+ 0.2 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-20 … 55 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material front plate	ABS UL 94 V0
Connection terminal	Screw terminal
Terminal style	fixed
Flex. cond. c/s AWG info	24 - 10 AWG
Height dimension	87 mm
Width dimension	45 mm
Depth dimension	121 mm
Net weight	375 g
Gross weight	385 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548011593
Volume	0.545 dm3
Harmonized System Code	85364900
Quantity per packaging unit	1
