Pilz 774324

PNOZ X5.1 24VDC 2n/o

MPN
774324
Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 774324 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 774324?

Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 N/O. Automatic/manual start UB 24 V DC, width: 22.5 mm, integral screw terminals, Monitoring E-STOP, safety gates.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)774324
ApprovalCCC, CE, cULus Listed, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)24 V
Type of supply voltage U1AC/DC
Power consumption AC4 VA
Power consumption DC2 W

Inputs

Number of inputs1

Semiconductor outputs

Number of semicond. outputs0

Relay outputs

Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.240 V
Max. current AC1 safety cont.6 A
Voltage DC1 safety cont.24 V
Max. current DC1 safety cont.4 A
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230 V
Max. current AC15 safety cont.5 A
Voltage DC13 safety cont.24 V
Safety contacts: AC at UL240 VAC G. P.
Safety contacts: pilot dutyR300, C300
Relay contact materialAgSnO2
Addit. contact details relay+ 0.2 µm Au

Environmental data

Climatic suitability to ...EN 60068-2-78
Ambient temperature-10 … 55 °C
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
EMC to standard ...EN 60947-5-1, EN 61000-6-2, EN 61326-3-1
Vibration to standard ...EN 60068-2-6
Clearance & creepage dist. toEN 60947-1
Overvoltage categoryIII / II
Pollution degree clear.&creep.2
Protection type, housingIP40

Mechanical data

Mounting positionany
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Housing material upper partPPO UL 94 V0
Connection terminalScrew terminal
Terminal stylefixed
Flex. cond. c/s AWG info24 - 10 AWG
Height dimension87 mm
Width dimension22.5 mm
Depth dimension121 mm
Net weight190 g
Gross weight195 g

Environment

REACh compliancecontains min. 1 SVHC-substance
WEEE classification (08/2018)5 devices (feed size < 50cm)

774324: frequently asked questions

Can I still buy the 774324 now that it is discontinued?

Yes. Pilz has discontinued the 774324, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 774324 be shipped?

774324 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 774324 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 774324 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774324, subject to availability and destination.

More Pilz parts

Pilz 774319 – PNOZ X3 240VAC 24VDC 3n/o 1n/c 1so
Pilz
774319

PNOZ X3 240VAC 24VDC 3n/o 1n/c 1so

Pilz 774321 – PNOZ X3.1 230VAC 24VDC 3n/o 1n/c 1so
Pilz
774321

PNOZ X3.1 230VAC 24VDC 3n/o 1n/c 1so

Pilz 774322 – PNOZ X3.1 240VAC 24VDC 3n/o 1n/c 1so
Pilz
774322

PNOZ X3.1 240VAC 24VDC 3n/o 1n/c 1so

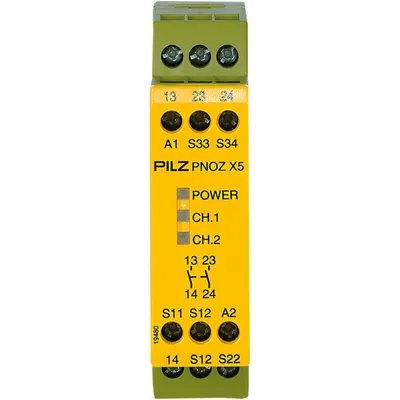

Pilz 774323 – PNOZ X5J 24VDC 2n/o
