Pilz 774316

Q: When can 774316 be shipped?

774316 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 774316 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 774316 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774316, subject to availability and destination.

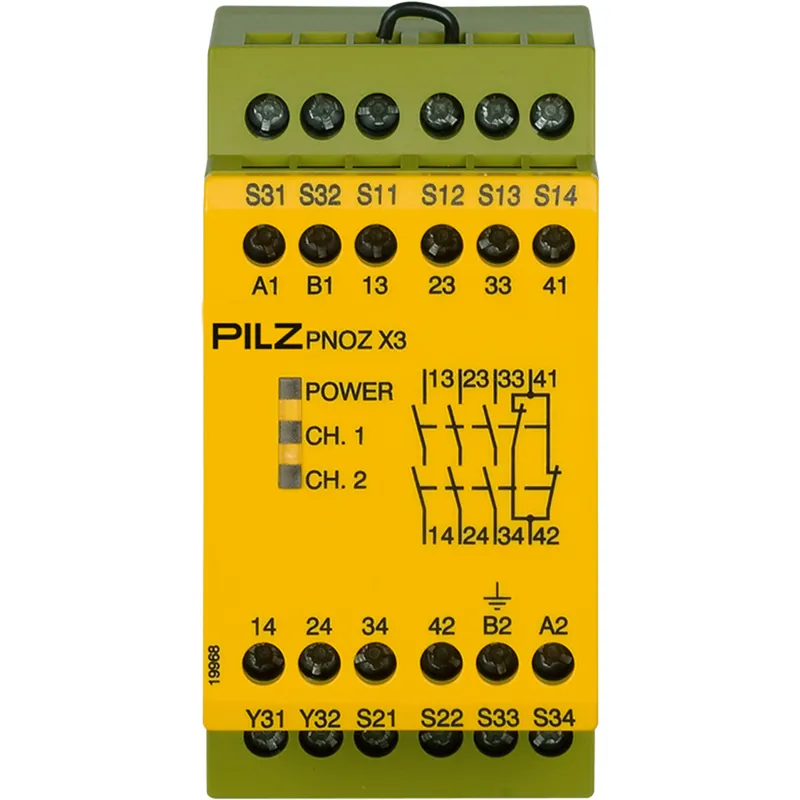

PNOZ X3 120VAC 24VDC 3n/o 1n/c 1so

MPN: 774316
EAN: 4046548011630
Category: Monitoring of E-STOP, safety gates, light barriers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 774316?

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 1 N/C,1 SC, automatic/monitored start, UB 120 V AC/24 V DC, width: 45 mm, screw terminals integrated, monitoring of E-STOP, safety gates.
