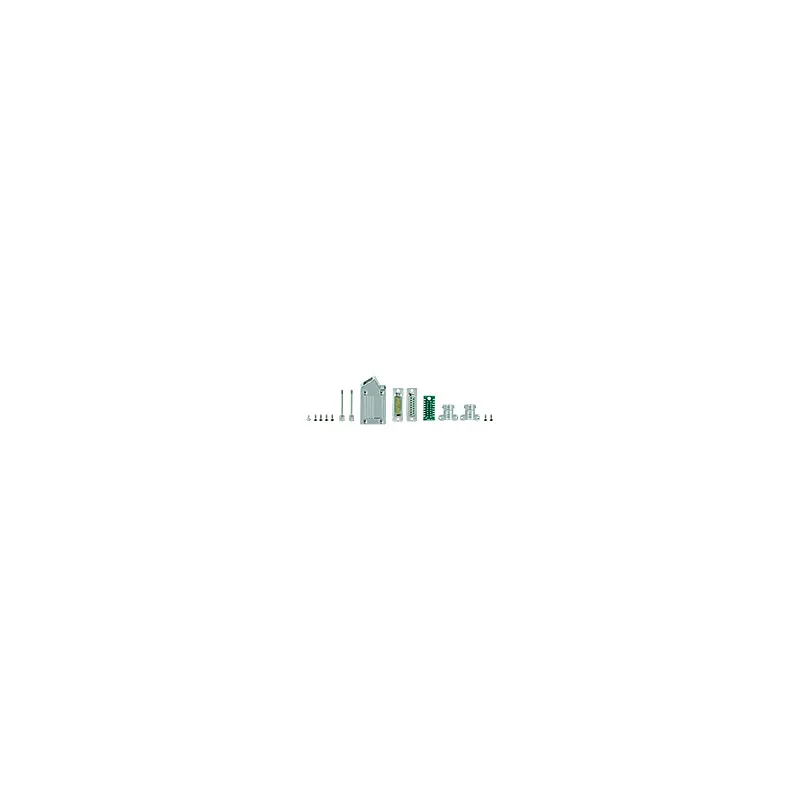

Pilz 773871
PNOZ msi S15
- MPN
- 773871
- EAN
- 4046548043754
- Category
- Accessories PNOZmulti
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 773871?
Universal adapter, 15-pin D-Sub, for PNOZ msXp, PNOZ s30, PNOZmulti 2 speed monitor and PSS motion monitoring.
Specifications
General data
| Product ID (Pilz order number) | 773871 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | 0 … 60 °C |
| Condensation permitted? | Not permitted |
| Protection type, housing | IP40 |
Mechanical data
| Connector type 1 | 15-pin D-Sub male connector |
| Connector type 2 | 15-pin D-Sub female connector |
| Fixing screws | UNC 4-40 |
| Contact surfaces material 1 | Au |
| Contact surfaces material 2 | Au |
| Material of pins | Cu alloy |
| Material of sockets | Cu alloy |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Housing material | Zn |
| Height dimension | 52.3 mm |
| Width dimension | 30 mm |
| Depth dimension | 17.6 mm |
| Net weight | 78 g |
| Gross weight | 92 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060313 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548043754 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
773871: frequently asked questions
When can 773871 be shipped?
773871 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773871 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773871 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773871, subject to availability and destination.
