Pilz 773869
PNOZ msi13p Fanuc 20/20 2,5m
- MPN
- 773869
- EAN
- 4046548025415
- Category
- Accessories PNOZmulti
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 773869 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 773869?

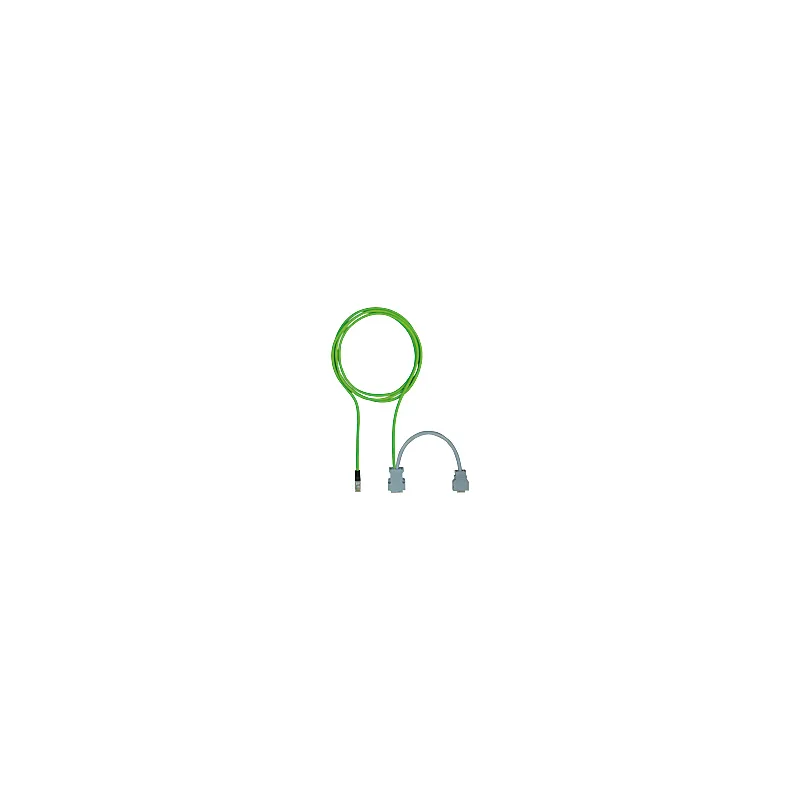

Adapter cable speed monitor, RJ45 connector and 20-pin encoder connection, for PNOZ msXp and PNOZ s30, 2.5 m, for FANUC.
Specifications
General data
| Product ID (Pilz order number) | 773869 |
| Approval | CE, UKCA |
| Lifecycle | End of life (Pilz is phasing this product out) |
Environmental data
| Ambient temperature | 0 … 60 °C |
| Protection type, housing | IP20 |
Mechanical data
| Connector type 1 | 20-pin D-Sub female connector |
| Connector type 2 | 20-pin D-Sub male connector |
| Connector type 3 | 8-pin RJ45 male connector |
| Shape of connector type 3 | straight |
| Housing material connector 3 | PBT |
| Cable material K2 | Cu |
| Cable type K1 | Li9YC11Y |
| Length cable | 2.5 |
| Tolerance of cable length K1 | +/- 0.15 m |
| Colour cable insulation 1 | Green, similar to RAL6018 |
| Housing colour | Grey |
| Material of cable insulation 1 | PUR |
| Material of cable insulation 2 | PVC |
| Trailing capability of cable 1 | yes |
| Trailing capability of cable 2 | No |
| Bend radius (when laying) K1 | 8 x Ø |
| Max. outside diameter cable K1 | 6 |
| Conductor cross section | 0.14 |
| Shielding K1 | yes |
| Shielding K2 | Yes |
| Separating layer bt. cores K2 | No |
| Number of conductors | 8 |
| Approvals for cable K1 | UL AWM-Style 20233 |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Approvals for connector 3 | UL94 V-0 |
| Housing material | ABS |
| Height dimension | 42 mm |
| Width dimension | 33.4 mm |
| Depth dimension | 13.5 mm |
| Net weight | 152 g |
| Gross weight | 164 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060313 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548025415 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
773869: frequently asked questions
Can I still buy the 773869 now that it is discontinued?
Yes. Pilz has discontinued the 773869, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 773869 be shipped?
773869 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773869 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773869 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773869, subject to availability and destination.
