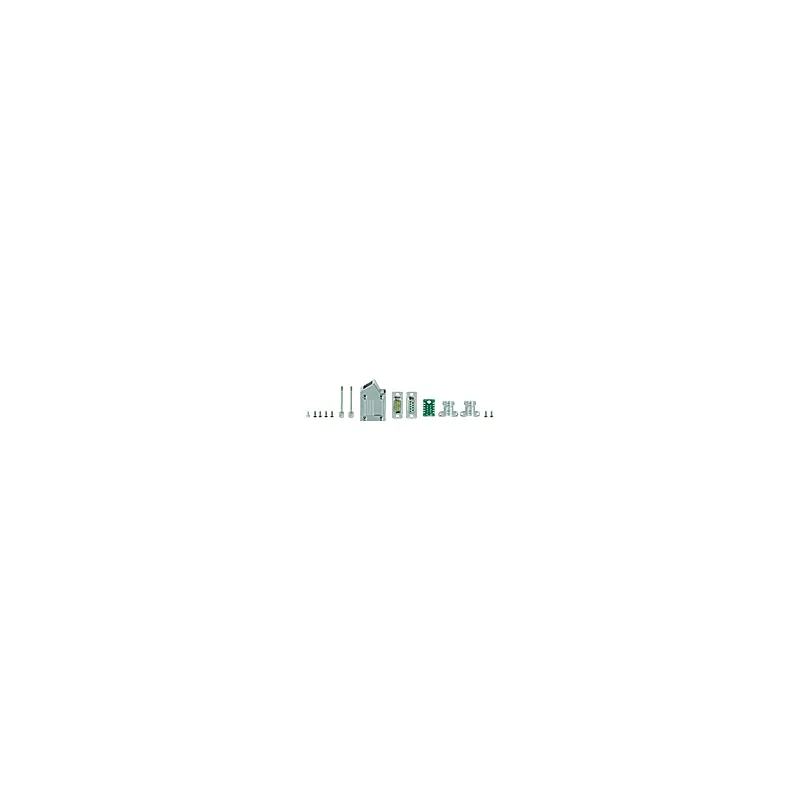

Pilz 773870
PNOZ msi S09
- MPN
- 773870
- EAN
- 4046548043747
- Category
- Accessories PNOZmulti
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pilz 773870?
Universal adapter, 9-pin D-Sub, for PNOZ msXp, PNOZ s30, PNOZmulti 2 speed monitor and PSS motion monitoring.
Specifications
General data
| Product ID (Pilz order number) | 773870 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | 0 … 60 °C |
| Condensation permitted? | Not permitted |
| Protection type, housing | IP40 |
Mechanical data
| Connector type 1 | 9-pin D-Sub male connector |
| Connector type 2 | 9-pin D-Sub female connector |
| Fixing screws | UNC 4-40 |
| Contact surfaces material 1 | Au |
| Contact surfaces material 2 | Au |
| Material of pins | Cu alloy |
| Material of sockets | Cu alloy |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Housing material | Zn |
| Height dimension | 44 mm |
| Width dimension | 30 mm |
| Depth dimension | 17.6 mm |
| Net weight | 70 g |
| Gross weight | 84 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060313 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548043747 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
