Pilz 773820 – PNOZ ms3p standstill / speed monitor

MPN: 773820 · Brand: Pilz

Price on request

Discontinued by Pilz — we can still source the original 773820 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PNOZmulti Classic – expansion modules
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.211 kg
UPC / EAN	4046548056907

Shipping & availability

Can I still buy the 773820 now that it is discontinued?

Yes. Pilz has discontinued the 773820, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 773820 be shipped?

773820 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 773820 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 773820 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773820, subject to availability and destination.

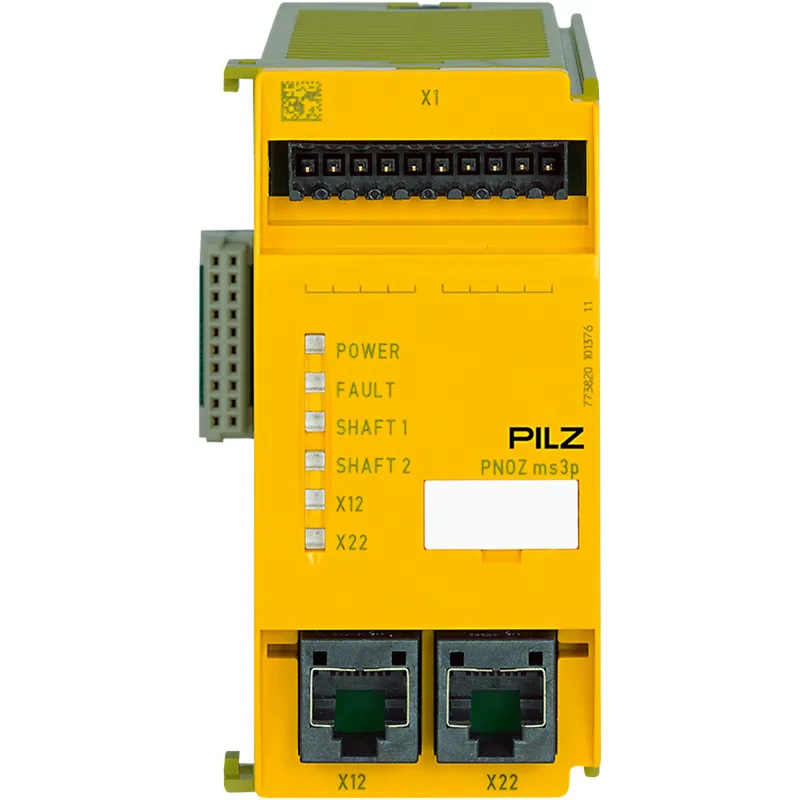

PNOZmulti Classic, expansion module, failsafe, motion monitoring of 2 axes, 2 incremental encoders, differential input, Sin/Cos, TTL(RS422), HTL (24 V), RJ45 female connector, 8-pin, adapter cable as an accessory.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)	773820
Approval	CE, UKCA, cULus Listed, EAC (Eurasian), TÜV
Lifecycle	Discontinued (no longer manufactured by Pilz)

Electrical data

Purpose of UINT1	Module supply
Source of internal voltage	Via base unit
Voltage type of UINT1	DC
Tolerance of UINT. Module	-2 %/+2 %

Input incremental encoder

Number of incremental encoder	2
Connection (increment encoder)	8-pin RJ-45 female connector
Phase pos. diff.sign. inc.enc.	90° ±30°
Prog. mon. fun. wo hyst. incr.	0.1 Hz - 500 kHz
Prog. mon. fun. w hyst. incr.	0.2 Hz - 500 kHz

Environmental data

Ambient temperature standard	EN 60068-2-14
Ambient temperature	0 … 60 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-30, EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61131-2
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Clearance & creepage dist. to	EN 61131-2
Overvoltage category	III
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, housing	IP20

Times

Reaction time at F < 100 Hz

10 ms + 1/f

Mechanical data

Mounting position	horizontal on top hat rail
DIN-rail dimensions	35 x 7.5 EN 50022
Housing material lower section	PPO UL 94 V0
Housing material front plate	ABS UL 94 V0
Connection terminal	Screw terminal, Spring-loaded terminal
Flex. cond. c/s AWG info	24 - 16 AWG
Height dimension	94 mm
Width dimension	45 mm
Depth dimension	121 mm
Net weight	211 g
Gross weight	229 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27242205
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001422
UNSPSC 25	39122331
GTIN	4046548056907
Volume	0.671 dm3
Harmonized System Code	85389091
