What is the Pilz 773816?

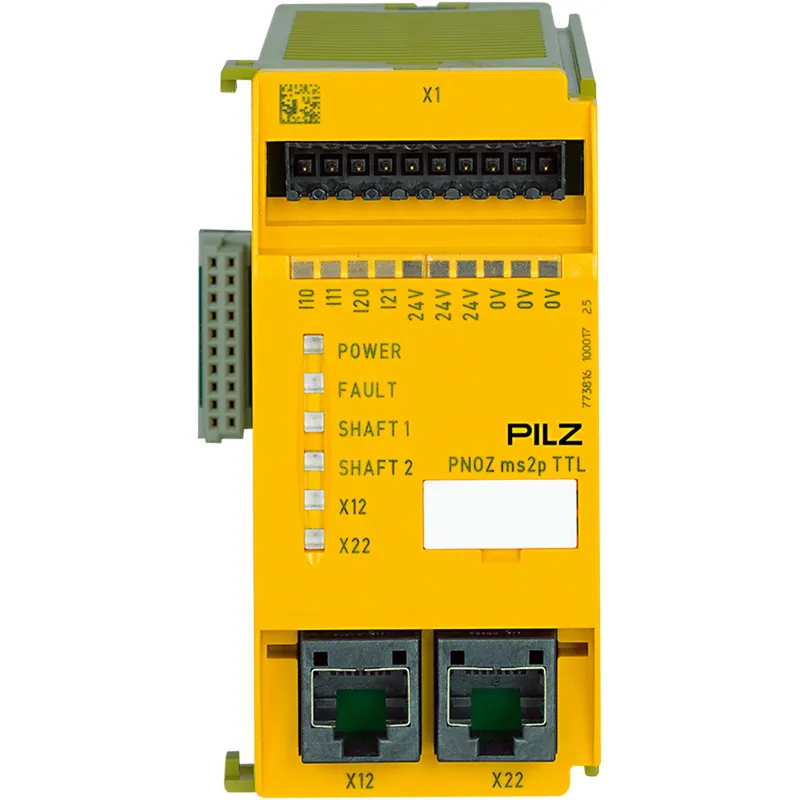

PNOZmulti Classic, expansion module, failsafe, motion monitoring of 2 axes, 2 incremental encoders, differential input, Sin/Cos, TTL(RS422), RJ45 female connector, 8-pin, adapter cable as an accessory, 4 proximity switches, type pnp.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)773816
ApprovalCE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV
LifecycleDiscontinued (no longer manufactured by Pilz)

Electrical data

Purpose of UINT1Module supply
Source of internal voltageVia base unit
Voltage type of UINT1DC
Tolerance of UINT. Module-2 %/+2 %

Input proximity switch

Prog. mon.fun. wo hyst prox sw0.1 Hz - 3 kHz
Prog. mon.fun. w hyst prox sw.0.2 Hz - 3 kHz

Input incremental encoder

Number of incremental encoder2
Connection (increment encoder)8-pin RJ-45 female connector
Phase pos. diff.sign. inc.enc.90° ±30°
Prog. mon. fun. wo hyst. incr.0.1 Hz - 500 kHz
Prog. mon. fun. w hyst. incr.0.2 Hz - 500 kHz

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature0 … 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-30, EN 60068-2-78
Humidity rating93 % r. h. at 40 °C
Condensation permitted?Not permitted
Perm. operating height ASL2000 m
EMC to standard ...EN 61131-2
Vibration to standard ...EN 60068-2-6
Acc. shock to standard115g
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryIII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20

Times

Reaction time at F < 100 Hz10 ms + 1/f

Mechanical data

Mounting positionhorizontal on top hat rail
DIN-rail dimensions35 x 7.5 EN 50022
Housing material lower sectionPPO UL 94 V0
Housing material front plateABS UL 94 V0
Connection terminalScrew terminal, Spring-loaded terminal
Flex. cond. c/s AWG info24 - 16 AWG
Height dimension94 mm
Width dimension45 mm
Depth dimension121 mm
Net weight220 g
Gross weight290 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsno
REACh complianceContains no SVHC substances
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242205
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001422
UNSPSC 2539122331
GTIN4046548065299
Volume0.671 dm3
Harmonized System Code85389091
