Pilz 773813 – PNOZ ma1p coated version
Discontinued by Pilz — we can still source the original 773813 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PNOZmulti Classic – expansion modules |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.196 kg |
| UPC / EAN | 4046548063325 |
Shipping & availability
Can I still buy the 773813 now that it is discontinued?
Yes. Pilz has discontinued the 773813, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 773813 be shipped?
773813 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773813 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773813 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773813, subject to availability and destination.

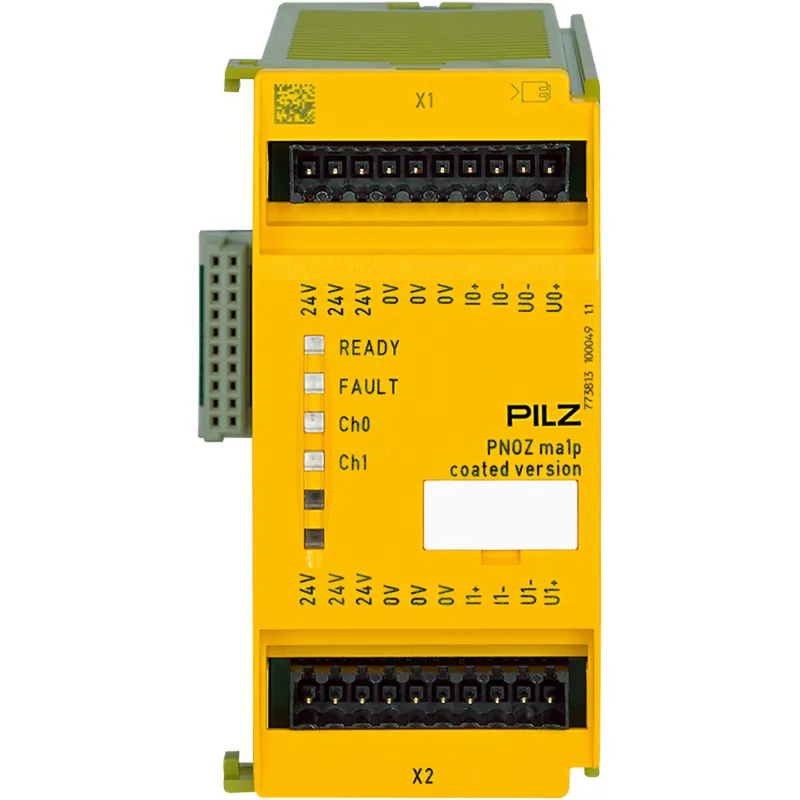

PNOZmulti Classic, expansion module, failsafe, 2 analogue inputs, - 10.24 - 10.23 V, dual-pole, differential input, resolution 13 Bit, 0 - 25.59 mA, dual-pole, differential input, resolution 12 Bit, range monitoring, threshold value monitoring, for increasedenvironmental conditions.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 773813 |
| Approval | CE, UKCA, cULus Listed, TÜV, EAC (Eurasian) |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Purpose of U1 | Module supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 2 |
Analog inputs
| Number of analogue inputs | 2 |
| Type of analogue inputs | Current, Voltage |
| Type of input filter | RC filter, 1st order |
| Res. anal. i/p I-measurement | 12 Bit |
| Resol. anal. i/p U-measurement | 13 Bit (12 Bit signed) |
| Value least signif. bit U-Me | 5 mV |
| Potential isol. Analogue input | No |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Briefly |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61131-2 |
| Vibration to standard ... | EN 60068-2-6 |
| Broad band noise to | EN 60068-2-64 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 61131-2 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Mounting position | horizontal on top hat rail |
| DIN-rail dimensions | 35 x 7.5 EN 50022 |
| Housing material lower section | PPO UL 94 V0 |
| Housing material front plate | ABS UL 94 V0 |
| Connection terminal | Screw terminal, Spring-loaded terminal |
| Flex. cond. c/s AWG info | 24 - 16 AWG |
| Height dimension | 94 mm |
| Width dimension | 45 mm |
| Depth dimension | 121 mm |
| Net weight | 196 g |
| Gross weight | 215 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242201 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001420 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548063325 |
| Volume | 0.695 dm3 |
| Harmonized System Code | 85389091 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Installation Manual PNOZmulti | PDF · 1.1 MB |
| PNOZmulti Communication Interfaces | PDF · 3.0 MB |
| Operating Manual PNOZ ma1p | PDF · 1.2 MB |
| PNOZmulti System Expansion | PDF · 1.9 MB |
| Techn. Catalogue PNOZmulti Classic/Mini | PDF · 16.2 MB |
CAD & dimension drawings
Certificates (7)
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| Certificate (EAC) RU-C-DE-HB-B-03002-23 | PDF · 1.2 MB |
| Self Declaration (CQC) CCC_Declaration-of-exemption | PDF · 0.5 MB |
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| Type examination certificate (TÜV) M6A-020132-0284-R01 | PDF · 1.2 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 0.3 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.2 MB |
