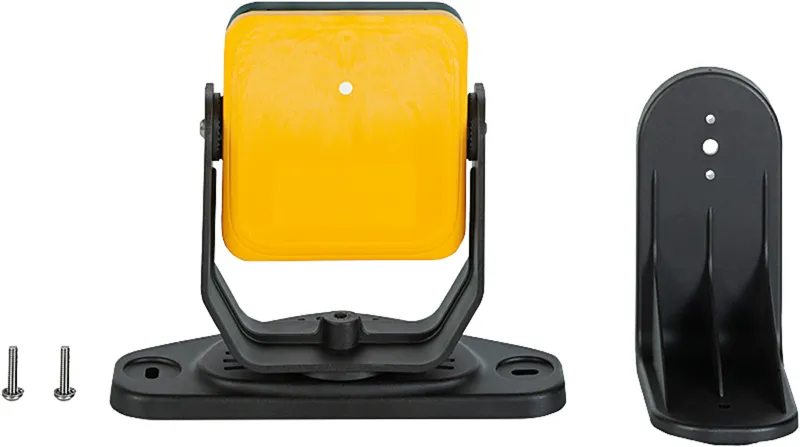

Pilz 6B000015
PSEN rd1.2 F-FOV LR sensor
- MPN
- 6B000015
- EAN
- 4046548107647
- Category
- PSENradar
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 6B000015?
Radar sensor, up to 9 m operating range, PL d (Cat. 3) in accordancewith EN ISO 13849
Specifications
General data
| Product ID (Pilz order number) | 6B000015 |
| Approval | RED, CE, UL Certified Mark, TÜV, 4 |
| Sensor principle | FMCW radar |
| Operating range warning zone | 9 |
| Operating range safety zone | 9 |
| Number of zone configurations | 32 |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Source of internal voltage | Via control unit |
Environmental data
| Ambient temperature | -30 … 60 °C |
| Humidity rating | Max. 95 % |
| Condensation permitted? | Not permitted |
| Pollution degree clear.&creep. | 4 |
| Protection type, housing | IP67 |
Times
| Reaction time | 100 |
Mechanical data
| Max. cable length | 25 |
| Height dimension | 85 mm |
| Height with bracket | 107.4 |
| Width dimension | 85 mm |
| Dimension w with bracket | 158 |
| Depth dimension | 107.4 mm |
| Net weight | 358 g |
| Gross weight | 495 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27274501 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC004807 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548107647 |
| Volume | 3.602 dm3 |
| Harmonized System Code | 85261000 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6B000015: frequently asked questions
When can 6B000015 be shipped?
6B000015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6B000015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6B000015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6B000015, subject to availability and destination.
