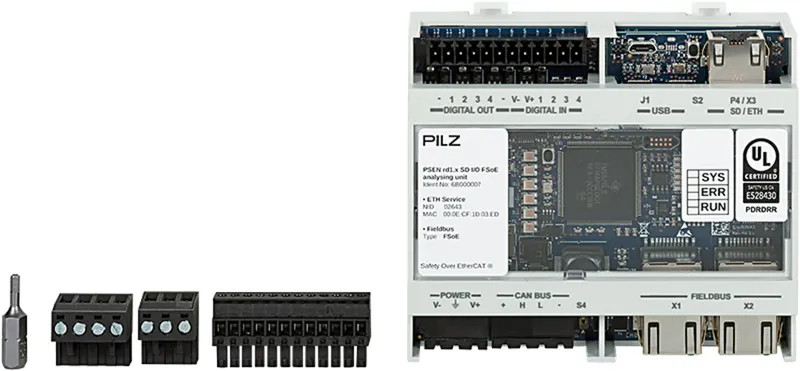

Pilz 6B000007
PSEN rd1.x SD I/O FSoE analysing unit
- MPN
- 6B000007
- EAN
- 4046548107616
- Category
- PSENradar
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pilz 6B000007?
Analysing unit for PSEN rd1.1/1.2, 2 inputs, 4 outputs, SD card, EtherCAT interface with FSoE protocol
Specifications
General data
| Product ID (Pilz order number) | 6B000007 |
| Approval | RED, CE, UL Certified Mark, TÜV |
| Sensor principle | FMCW radar |
| Number of slaves | 6 |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
Semiconductor outputs
| Number of OSSD outputs | 4 |
Ethernet interface
| Connector type ETHERNET int. | RJ45 |
| Number of Ethernet interfaces | 3 |
Environmental data
| Ambient temperature | -30 … 60 °C |
| Humidity rating | Max. 95 % |
| Condensation permitted? | Not permitted |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP20 |
Times
| Reaction time | 100 |
Mechanical data
| Height dimension | 103 mm |
| Width dimension | 106 mm |
| Depth dimension | 33 mm |
| Net weight | 160 g |
| Gross weight | 305 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27273890 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548107616 |
| Volume | 3.602 dm3 |
| Harmonized System Code | 85299097 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (7)
- Type examination certificate (TÜV) TÜV-IT-0948-23-MAC-404-B-R1
- Attestation () 0x189_004 V1.0
- Certificate (UL) E528430
- Type examination certificate (TÜV) TUV-IT-0948-26-MAC-527-B
- Certificate () 0x189_003_Certificate
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
