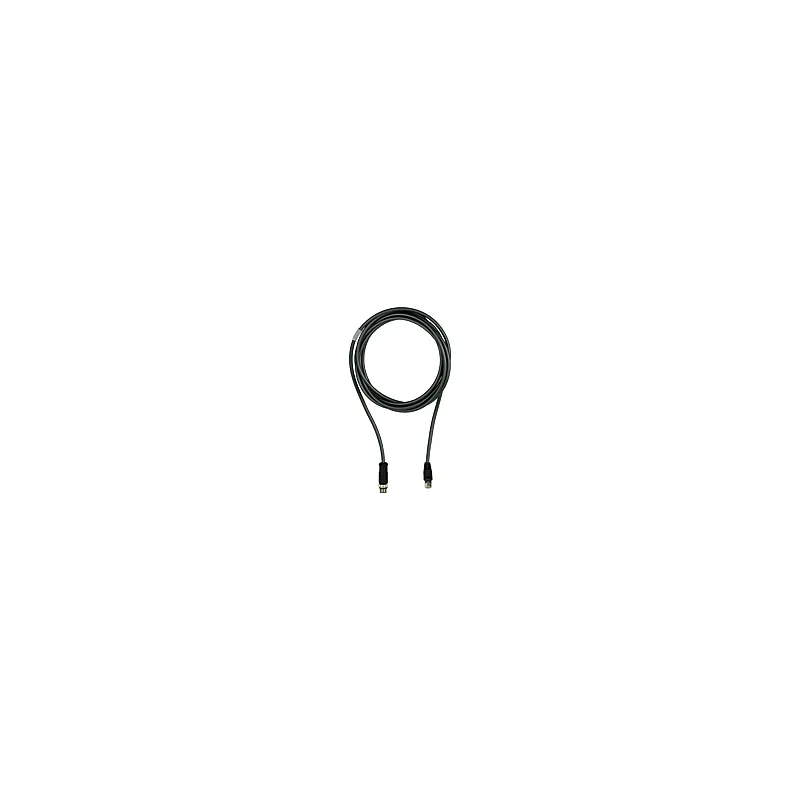

Pilz 631073
PSEN op Ethernet cable 10m
- MPN
- 631073
- EAN
- 4046548078107
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 631073?
Network cable, Ethernet Cat5e, PVC, black, 4-pin, connector straight M12 (IP67), D-coded, on connector straight RJ45 (IP20), cable length: 10m
Specifications
General data
| Product ID (Pilz order number) | 631073 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 1.5 |
Environmental data
| Ambient temperature | -20 … 55 °C |
| Protection type, housing | IP67 |
Mechanical data
| Connector type 1 | 4-pin M12 male connector |
| Shape of connector type 1 | straight |
| Connector type 2 | 4-pin RJ45 male connector |
| Shape of connector type 2 | straight |
| Matl threaded ring conn 1 | CuZn |
| Contact surfaces material 1 | Au |
| Contact surfaces material 2 | Au |
| Material of pins | CuZn |
| Length cable | 10 |
| Colour cable insulation 1 | Black |
| Housing colour | Black |
| Material of cable insulation 1 | PVC |
| Trailing capability of cable 1 | no |
| Conductor cross section | 0.14 |
| Cable cross section AWG K1 | 26 |
| Stranding K1 | 2x twisted pair |
| Shielding K1 | no |
| Number of conductors | 4 |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Net weight | 230 g |
| Gross weight | 233 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548078107 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444210 |
| Quantity per packaging unit | 1 |
