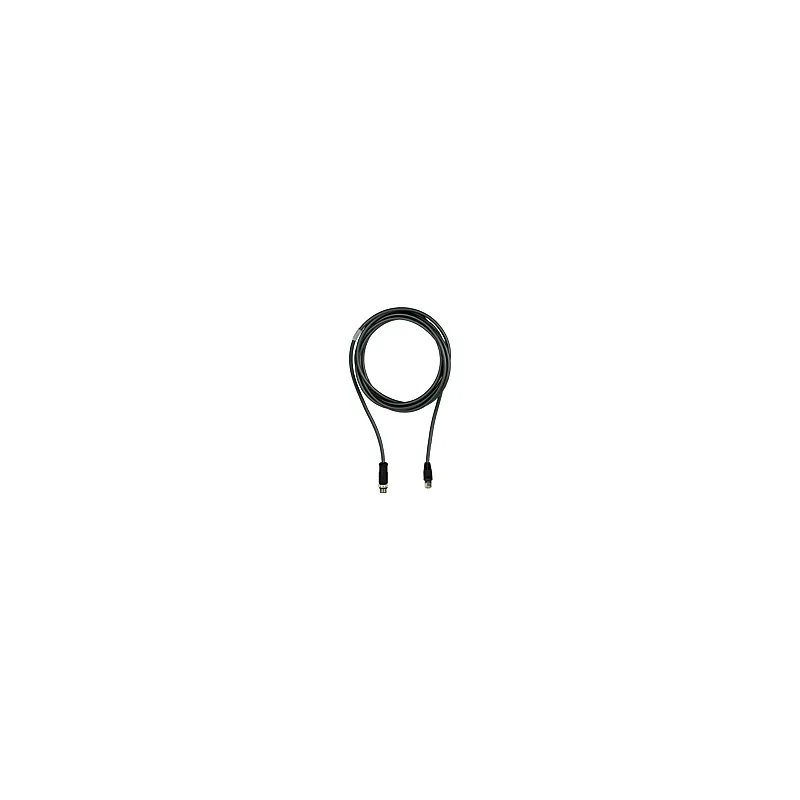

Pilz 631071
PSEN op Ethernet cable 1m
- MPN
- 631071
- EAN
- 4046548077124
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 631071?
Network cable, Ethernet Cat5e, PVC, black, 4-pin, connector straight M12 (IP67), D-coded, on connector straight RJ45 (IP20), cable length: 1m
Specifications
General data
| Product ID (Pilz order number) | 631071 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 1.5 |
Environmental data
| Ambient temperature | -20 … 55 °C |
| Protection type, housing | IP67 |
Mechanical data
| Connector type 1 | 4-pin M12 male connector |
| Shape of connector type 1 | straight |
| Connector type 2 | 4-pin RJ45 male connector |
| Shape of connector type 2 | straight |
| Matl threaded ring conn 1 | CuZn |
| Contact surfaces material 1 | Au |
| Contact surfaces material 2 | Au |
| Material of pins | CuZn |
| Length cable | 1 |
| Colour cable insulation 1 | Black |
| Housing colour | Black |
| Material of cable insulation 1 | PVC |
| Trailing capability of cable 1 | no |
| Conductor cross section | 0.14 |
| Cable cross section AWG K1 | 26 |
| Stranding K1 | 2x twisted pair |
| Shielding K1 | no |
| Number of conductors | 4 |
| Approvals for connector 1 | UL94 V-0 |
| Approvals for connector 2 | UL94 V-0 |
| Net weight | 58 g |
| Gross weight | 61 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548077124 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444210 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
CAD & dimension drawings
631071: frequently asked questions
When can 631071 be shipped?
631071 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 631071 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 631071 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 631071, subject to availability and destination.
